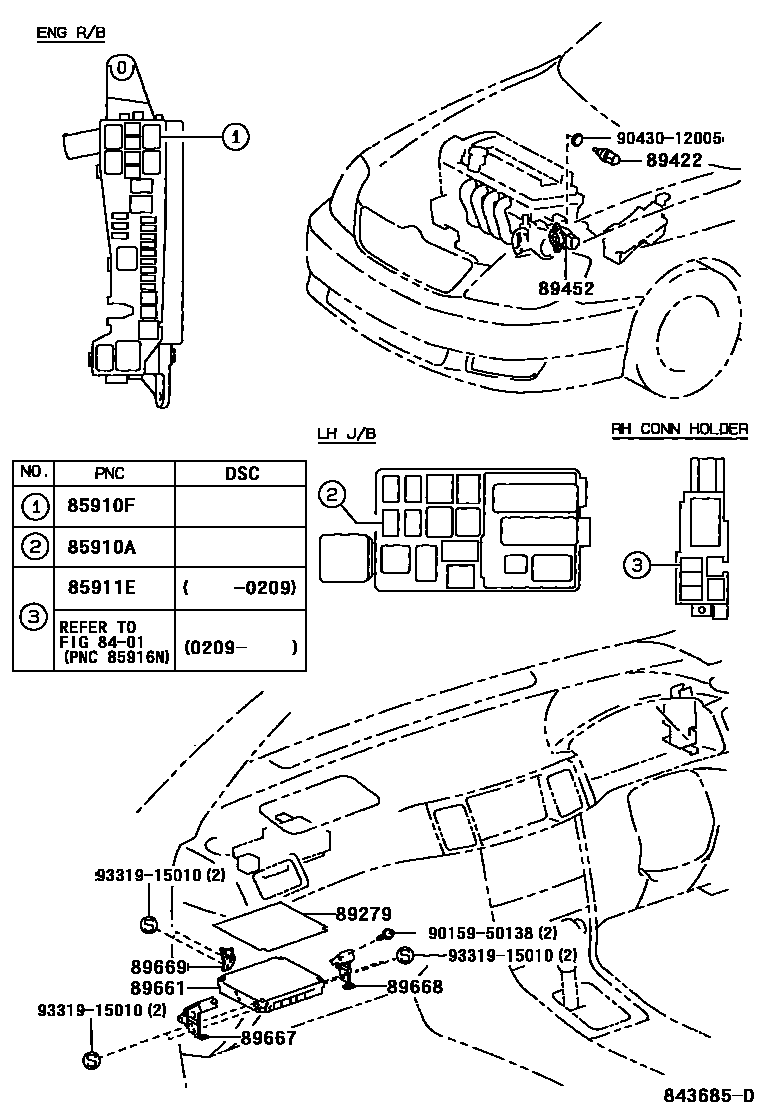

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90080-87019iNZE12#200109-200110

main90080-87021iZZE123200109-200110

main90987-02012iNZE121200109-200110

main90987-02020iNZE124200109-200110

85910FRELAY, COMPUTER (FOR EFI)

main90080-87019iNZE12#200109-200110

main90080-87021iZZE123200109-200110

main90987-02012iNZE121200109-200110

main90987-02020iNZE12#,ZZE123; ZZE122,124200209-200404

85911ERELAY, ALTERNATOR CUT

main90080-87019iNZE12#200109-200110

main90987-02012iNZE121200109-200110

main90987-02020iNZE121200101-200209

89279COVER, ENGINE CONTROL COMPUTER

main89279-12150iNZE124,ZZE122,124200404-200609

main89279-12160iNZE12#,ZZE123200101-200209

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iNZE121200404-200609

main89422-35010iNZE124,ZZE12#200404-200609

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-20130iNZE12#,ZZE122,124200209-200404

main89452-35020iZZE123200209-200404

89661COMPUTER, ENGINE CONTROL

main89661-12A30iNZE121200404-200412

main89661-12A70iNZE121200412-200609

main89661-1E540iZZE122200404-200609

main89661-1E620iZZE124200404-200609

main89666-12160iNZE124200101-200209

main89666-12170iNZE121200101-200209

main89666-12260iZZE123..6F200404-200609

main89666-12270iZZE123..4FC200209-200404

main89666-12390iNZE121200209-200404

main89666-12400iNZE124200404-200609

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-12190iNZE124,ZZE122,124200404-200609

main89667-12200iZZE123200404-200609

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-12100iNZE12#,ZZE122,124200209-200404

main89668-12110iNZE12#,ZZE123200101-200209

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-12030iNZE12#,ZZE123200101-200209

main89669-12040iNZE121200404-200609

9015950138

main90159-50138

9043012005

main90430-12005

9331915010

main93319-15010
