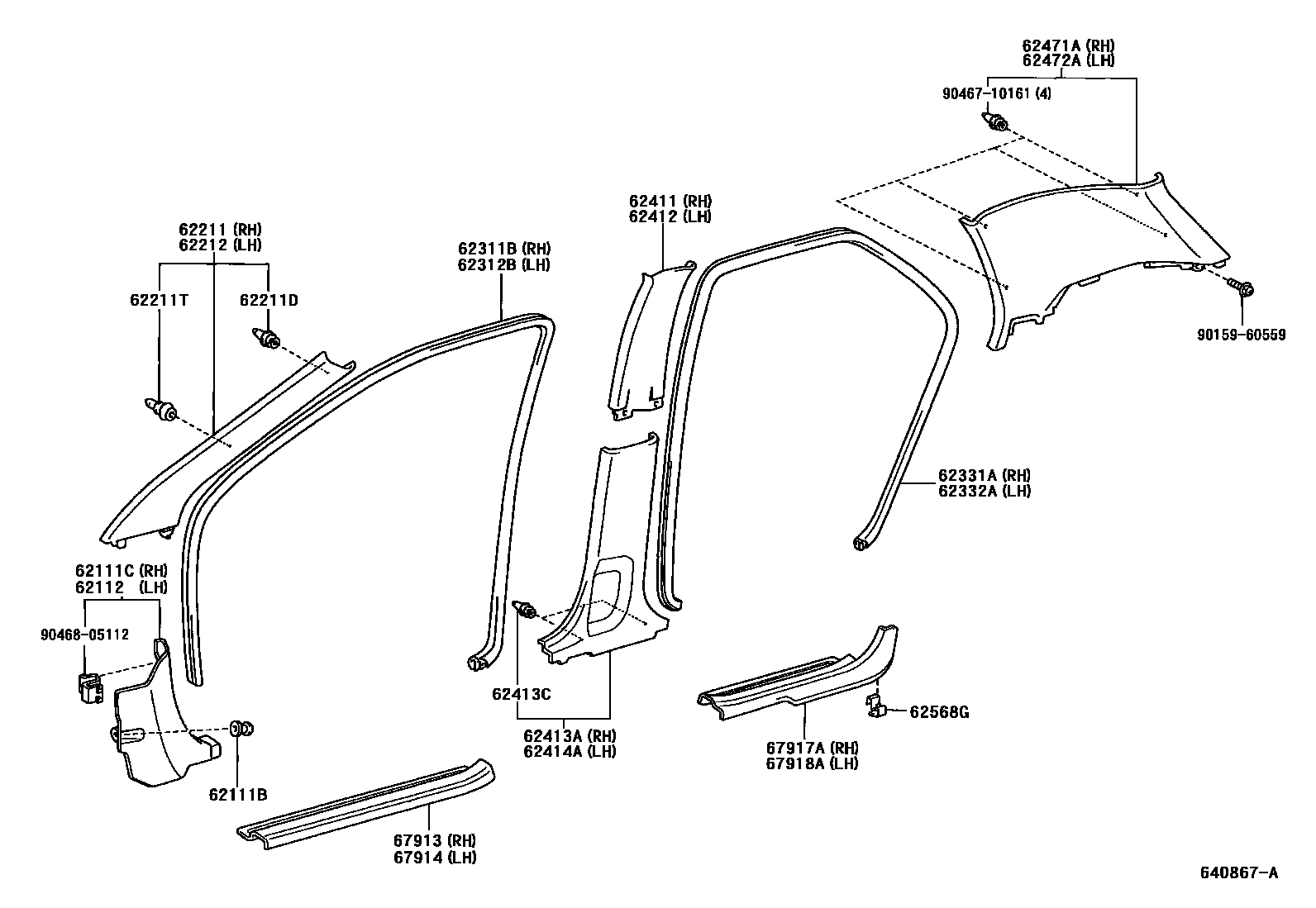

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1 0003 1��(SRS ��������� �������)

62111BCLIP(FOR COWL SIDE TRIM)

main90467-06120×2iNZE12#,ZZE12#200209-200404

62111CBOARD, COWL SIDE TRIM, RH

main62111-12270-A0iNZE12#200101-200209

IVORY,TRIM0#

main62111-12270-B1iNZE12#,ZZE123200101-200209

DK.GRAY,TRIM1#

main62111-13070-A0iNZE12#,ZZE122,124200404-200609

IVORY,TRIM0#

main62111-13070-B0iNZE12#; ZZE12#200404-200609

DK.GRAY,TRIM1#; DK.GRAY,TRIM16

main62111-13070-B1iNZE12#200404-200609

MD.GRAY,TRIM14

62112BOARD, COWL SIDE TRIM, LH

main62112-12300-A0iNZE12#200101-200209

IVORY,TRIM0#

main62112-12300-B1iNZE12#,ZZE123200101-200209

DK.GRAY,TRIM1#

main62112-13100-A0iNZE12#,ZZE122,124200209-200404

IVORY,TRIM0#

main62112-13100-B0iNZE12#; ZZE12#200404-200609

DK.GRAY,TRIM1#; DK.GRAY,TRIM16

main62112-13100-B1iNZE12#200404-200609

MD.GRAY,TRIM14

62211GARNISH, FRONT PILLAR, RH

main62211-12320-A0iNZE12#,ZZE122,124200404-200609

IVORY,TRIM0#

main62211-12320-B0iNZE12#; ZZE12#200404-200609

LT.GRAY,TRIM1#; LT.GRAY,TRIM14,16

main62211-12360-A0iNZE12#;ZZE122,124..ALLEX200404-200609

main62211-12360-B0iNZE12#; ZZE123;ZZE122,124..RUNX200404-200609

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main90467-10161×2iNZE12#,ZZE12#200404-200609

main90467-10188×2iNZE12#,ZZE12#200209-200404

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90467-10192×2iNZE12#,ZZE12#200209-200404

62212GARNISH, FRONT PILLAR, LH

main62212-12320-A0iNZE12#200101-200209

IVORY,TRIM0#

main62212-12320-B0iNZE12#; ZZE12#200404-200609

LT.GRAY,TRIM1#; LT.GRAY,TRIM14,16

main62212-12360-A0iNZE12#;ZZE122,124..ALLEX200404-200609

main62212-12360-B0iNZE12#; ZZE123;ZZE122,124..RUNX200404-200609

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-12090-A0iNZE12#200101-200209

IVORY,TRIM0#

main62311-12090-B1iNZE12#,ZZE123200101-200209

DK.GRAY,TRIM1#

main62311-12140-A0iNZE12#,ZZE122,124200209-200303

IVORY,TRIM0#

main62311-12140-B1iNZE12#,ZZE12#200209-200303

DK.GRAY,TRIM1#

main62311-12141-A0iNZE12#,ZZE122,124200303-200404

IVORY,TRIM0#

main62311-12141-B1iNZE12#,ZZE12#200303-200404

DK.GRAY,TRIM1#

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-12090-A0iNZE12#200101-200209

IVORY,TRIM0#

main62312-12090-B1iNZE12#,ZZE123200101-200209

DK.GRAY,TRIM1#

main62312-12140-A0iNZE12#,ZZE122,124200209-200303

IVORY,TRIM0#

main62312-12140-B1iNZE12#,ZZE12#200209-200303

DK.GRAY,TRIM1#

main62312-12141-A0iNZE12#,ZZE122,124200303-200404

IVORY,TRIM0#

main62312-12141-B1iNZE12#,ZZE12#200303-200404

DK.GRAY,TRIM1#

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-13031-A0iNZE12#,ZZE122,124200404-200609

IVORY,TRIM0#

main62331-13031-B0iNZE12#,ZZE123200101-200209

DK.GRAY,TRIM1#

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-13031-A0iNZE12#,ZZE122,124200209-200404

IVORY,TRIM0#

main62332-13031-B0iNZE12#,ZZE12#200209-200404

DK.GRAY,TRIM1#

62411GARNISH, CENTER PILLAR, RH

main62410-12030-A0iNZE12#;ZZE122,124..ALLEX200404-200609

main62410-12030-B0iNZE12#; ZZE123;ZZE122,124..RUNX200404-200609

main62411-12510-A0iNZE12#200101-200209

IVORY,TRIM0#

main62411-12510-B0iNZE12#; ZZE12#200404-200609

LT.GRAY,TRIM1#; LT.GRAY,TRIM14,16

62412GARNISH, CENTER PILLAR, LH

main62412-12510-A0iNZE12#200101-200209

IVORY,TRIM0#

main62412-12510-B0iNZE12#,ZZE123200101-200209

LT.GRAY,TRIM1#

main62420-12030-A0iNZE12#;ZZE122,124..ALLEX200404-200609

main62420-12030-B0iNZE12#; ZZE123;ZZE122,124..RUNX200404-200609

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-12230-A0iNZE12#200101-200105

IVORY,TRIM0#

main62413-12230-B1iNZE12#,ZZE123200101-200105

DK.GRAY,TRIM1#

main62413-12231-A0iNZE12#200105-200209

IVORY,TRIM0#

main62413-12231-B1iNZE12#; ZZE12#200404-200609

DK.GRAY,TRIM1#; DK.GRAY,TRIM16

main62413-12231-B2iNZE12#200404-200609

MD.GRAY,TRIM14

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-09215×4iNZE12#,ZZE123200105-200209

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-12230-A0iNZE12#200101-200105

IVORY,TRIM0#

main62414-12230-B1iNZE12#,ZZE123200101-200105

DK.GRAY,TRIM1#

main62414-12231-A0iNZE12#200105-200209

IVORY,TRIM0#

main62414-12231-B1iNZE12#; ZZE12#200404-200609

DK.GRAY,TRIM1#; DK.GRAY,TRIM16

main62414-12231-B2iNZE12#200404-200609

MD.GRAY,TRIM14

62471AGARNISH, ROOF SIDE, INNER RH

main62471-13100-A0iNZE12#200101-200209

IVORY,TRIM0#

main62471-13100-B0iNZE12#; ZZE12#200404-200609

LT.GRAY,TRIM1#; LT.GRAY,TRIM14,16

main62471-13180-A1iNZE12#,ZZE122,124200404-200609

main62471-13180-B1iNZE12#; ZZE12#200404-200609

62472AGARNISH, ROOF SIDE, INNER LH

main62472-13100-A0iNZE12#,ZZE122,124200404-200609

IVORY,TRIM0#

main62472-13100-B0iNZE12#; ZZE12#200404-200609

LT.GRAY,TRIM1#; LT.GRAY,TRIM14,16

main62472-13170-A1iNZE12#,ZZE122,124200404-200609

main62472-13170-B1iNZE12#; ZZE12#200404-200609

62568GCLAMP, ROCKER PANEL INNER PROTECTOR, NO.3

main62568-13030×2iNZE12#,ZZE12#200404-200609

67913PLATE, FRONT DOOR SCUFF, RH

main67913-12270-A0iNZE12#200101-200209

IVORY,TRIM0#

main67913-12270-B1iNZE12#,ZZE123200101-200209

DK.GRAY,TRIM1#

main67913-13040-A0iNZE12#,ZZE122,124200404-200609

IVORY,TRIM0#

main67913-13040-B0iNZE12#,ZZE12#200209-200404

DK.GRAY,TRIM1#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-12230-A0iNZE12#200101-200209

IVORY,TRIM0#

main67914-12230-B1iNZE12#,ZZE123200101-200209

DK.GRAY,TRIM1#

main67914-13040-A0iNZE12#,ZZE122,124200209-200404

IVORY,TRIM0#

main67914-13040-B0iNZE12#,ZZE12#200404-200609

DK.GRAY,TRIM1#

67917APLATE, REAR DOOR SCUFF, RH

main67917-13060-A0iNZE12#200101-200209

IVORY,TRIM0#

main67917-13060-B0iNZE12#,ZZE12#200209-200404

DK.GRAY,TRIM1#

67918APLATE, REAR DOOR SCUFF, LH

main67918-13060-A0iNZE12#,ZZE122,124200404-200609

IVORY,TRIM0#

main67918-13060-B0iNZE12#,ZZE12#200209-200404

DK.GRAY,TRIM1#

9015960559

main90159-60559

9046710161

main90467-10161

9046805112

main90468-05112

26 parts on this diagram · 3 diagrams in section
