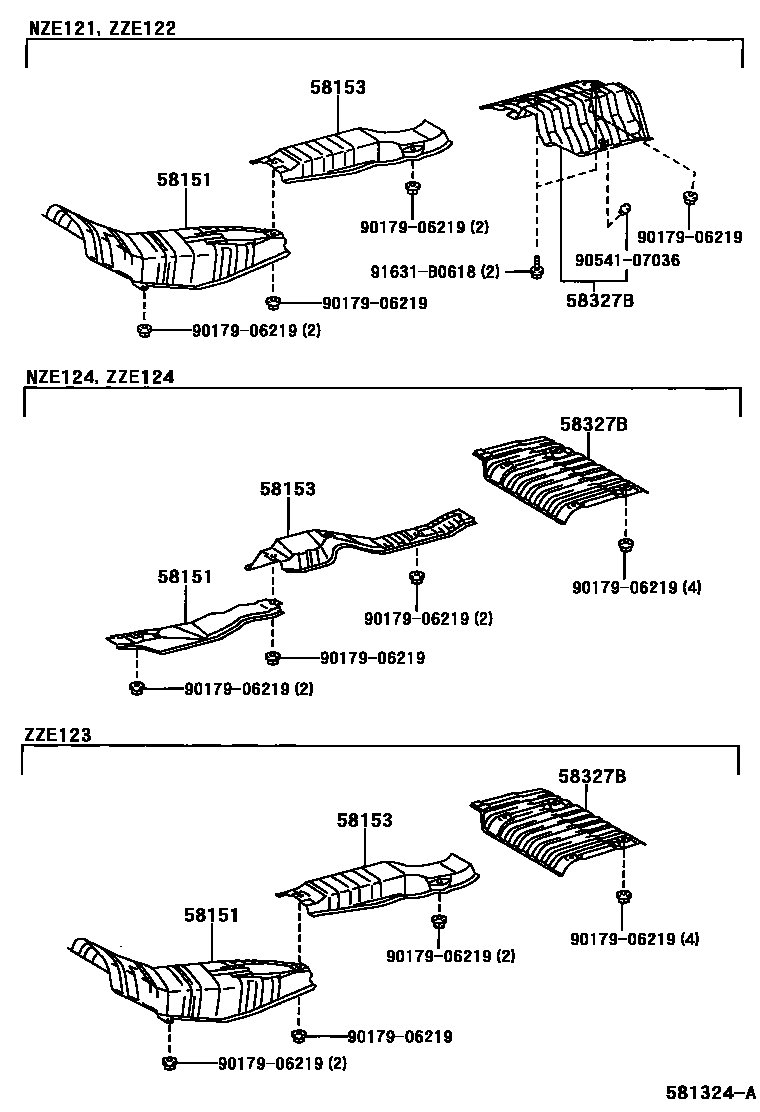

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-12190iNZE124,ZZE124200209-200404

main58151-12210iNZE121,ZZE123200101-200209

main58151-12220iNZE121,ZZE122,123200307-200404

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-12160iNZE124,ZZE124200209-200404

main58153-20141iNZE121,ZZE122,123200209-200404

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-13050iNZE121200101-200209

main58327-13060iNZE124,ZZE123200101-200209

9017906219

main90179-06219

9054107036

main90541-07036

91631B0618

main91631-B0618

6 parts on this diagram · 1 diagram in section
