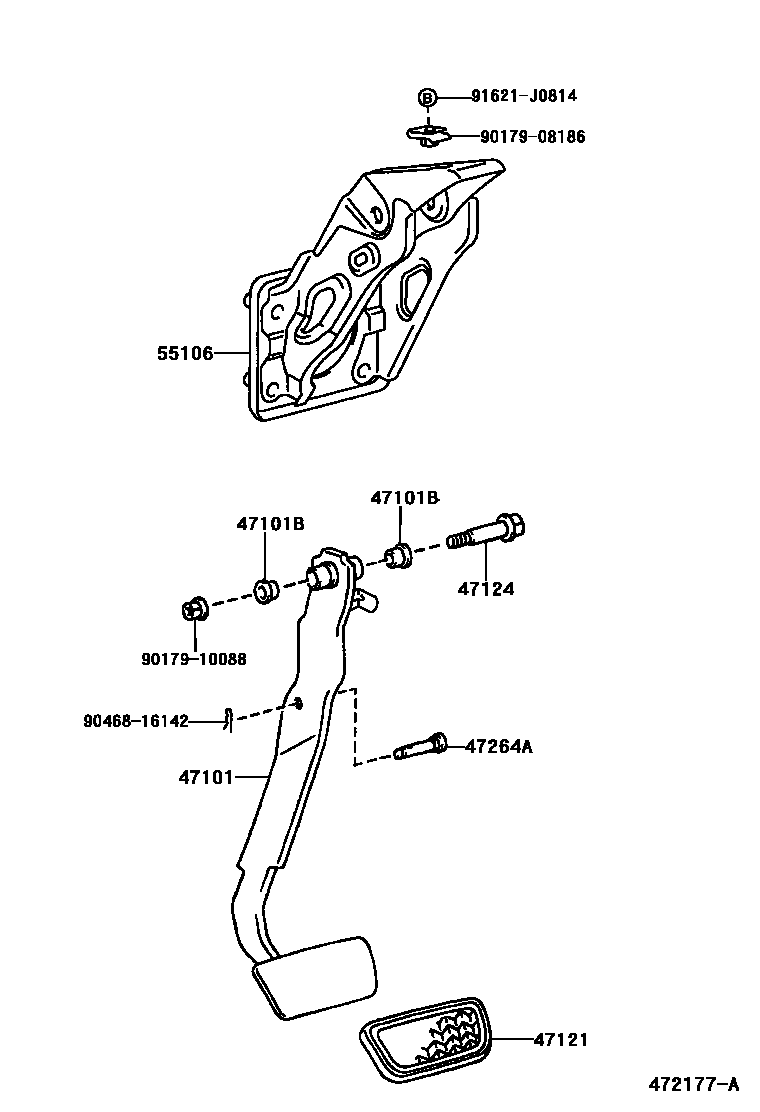

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-12590iZZE123..6F200101-200209

main47101-12600iNZE12#,ZZE123..4FC200101-200209

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015×2iNZE12#,ZZE123200101-200209

47121PAD, BRAKE PEDAL

main31321-52010iZZE123..6F200101-200209

main47121-52010iNZE12#,ZZE12#..4FC200209-200404

47124SHAFT, BRAKE PEDAL

main90109-10174iNZE12#,ZZE123200101-200209

47264APIN(FOR PUSH ROD)

main47148-12070iNZE12#,ZZE123200101-200209

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-12650iNZE12#,ZZE123200101-200209

9017908186

main90179-08186

9017910088

main90179-10088

9046816142

main90468-16142

91621J0814

main91621-J0814

10 parts on this diagram · 1 diagram in section
