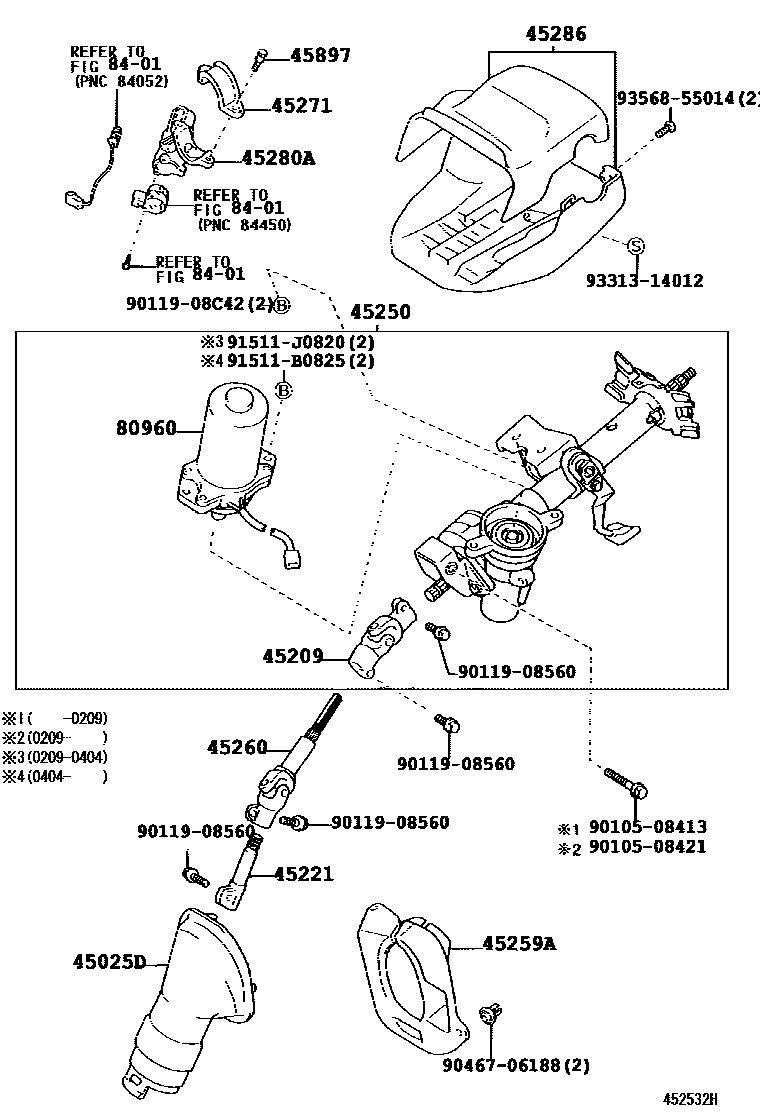

STEERING COLUMN & SHAFT

0001 1 0002 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-12220iNZE121,ZZE122200404-200609

main45025-12230iZZE123200404-200609

main45025-12240iNZE124200101-200209

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-12150iNZE12#,ZZE123200101-200209

main45209-12151iNZE12#,ZZE12#200510-200609

45221SHAFT, STEERING INTERMEDIATE

main45221-12280iNZE121200101-200209

main45221-12281iNZE121,ZZE122200404-200609

main45221-12291iZZE123200209-200404

45250COLUMN ASSY, STEERING

main45250-1E192iNZE121200101-200209

main45250-1E200iNZE124,ZZE123200101-200209

main45250-1E232iNZE121200101-200209

main45250-1E310iNZE121200209-200302

main45250-1E311iNZE121200404-200408

main45250-1E312iNZE121200408-200509

main45250-1E313iNZE121200510-200609

main45250-1E320iZZE122200209-200302

main45250-1E321iZZE122200302-200404

main45250-1E322iZZE122200408-200509

main45250-1E323iZZE122200510-200609

main45250-1E330iNZE121200209-200302

main45250-1E331iNZE121200302-200404

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-12010iNZE121,ZZE122,123200209-200404

main45259-12020iNZE124,ZZE124200209-200404

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-12460iZZE123200209-200404

main45260-12461iZZE123200404-200609

main45260-12470iNZE124200101-200209

main45260-12530iNZE121,ZZE122200404-200505

main45260-12531iNZE121,ZZE122200506-200609

45271CLAMP, STEERING COLUMN, UPPER

main45271-16020iNZE12#,ZZE12#200404-200609

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-12400iNZE121,ZZE122200209-200404

main45280-52020iZZE123..6F200101-200209

main45280-52030iNZE124,ZZE123,124..4FC200209-200404

45286COVER, STEERING COLUMN

main45286-12967-B2iNZE12#; ZZE123200101-200209

DK.GRAY,TRIM0#,1#; DK.GRAY,TRIM1#

main45286-12970-B0iNZE12#; ZZE122,124..ALLEX; ZZE123;ZZE122,124..RUNX200404-200609

45897BOLT, STEERING LOCK SET

main45897-12020×2iNZE12#,ZZE12#200209-200404

80960MOTOR ASSY, POWER STEERING

main80960-12010iNZE121200101-200209

main80960-12040iNZE121200404-200408

main80960-12041iNZE121200408-200609

main80960-12050iZZE122200404-200407

main80960-12080iZZE122200407-200609

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010508413

main90105-08413

9010508421

main90105-08421

9011908560

main90119-08560

9011908C42

main90119-08C42

9046706188

main90467-06188

91511B0825

main91511-B0825

91511J0820

main91511-J0820

9331314012

main93313-14012

9356855014

main93568-55014

21 parts on this diagram · 2 diagrams in section
