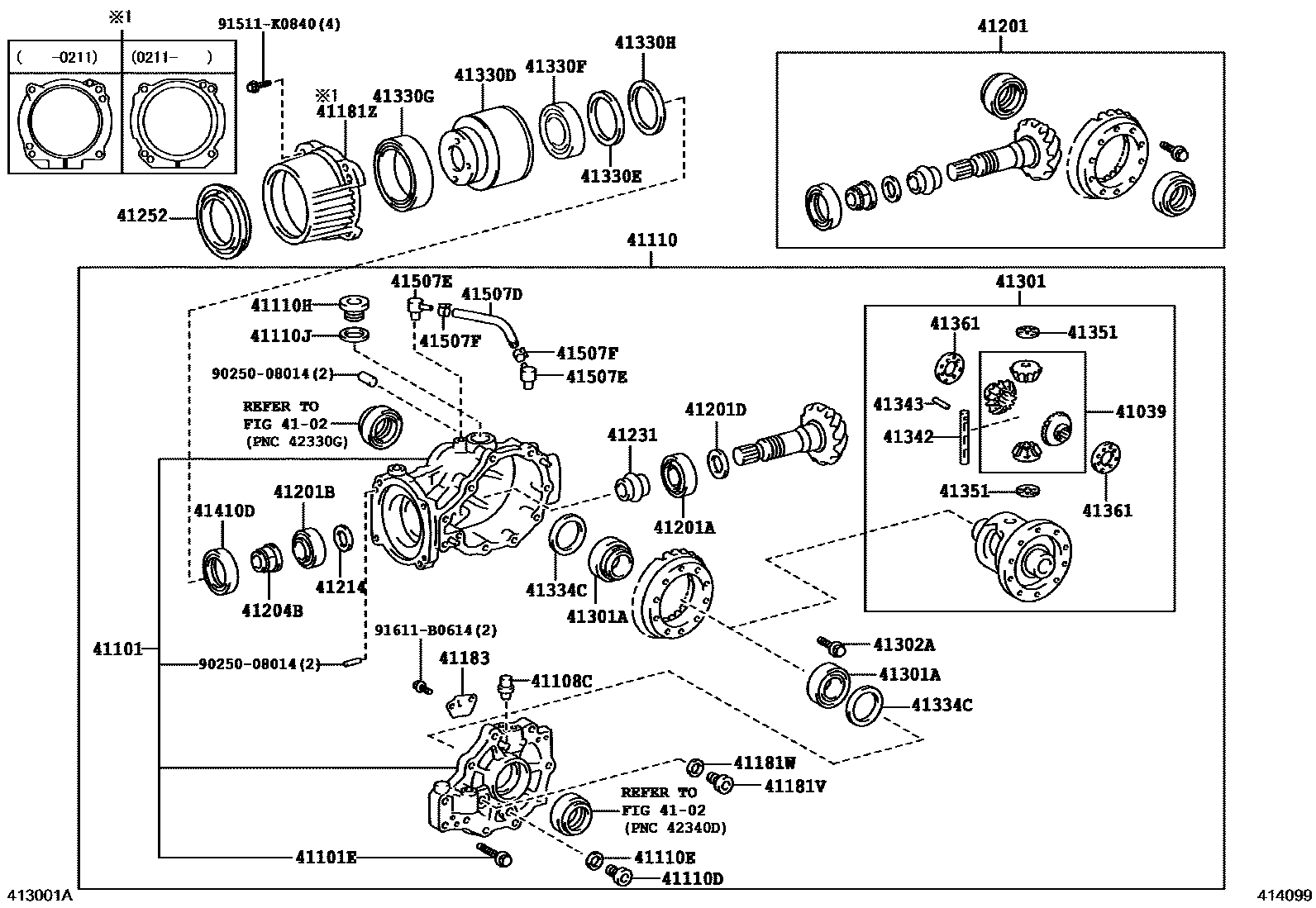

REAR AXLE HOUSING & DIFFERENTIAL
4102REAR AXLE SHAFT & HUB
41039GEAR KIT, DIFFERENTIAL, REAR
41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR
41101EBOLT (FOR REAR DIFFERENTIAL CARRIER)
41108CPLUG, BREATHER (FOR REAR DIFFERENTIAL CARRIER COVER)
41110CARRIER ASSY, DIFFERENTIAL, REAR
41110DPLUG (FOR REAR DIFFERENTIAL DRAIN)
41110EGASKET (FOR REAR DIFFERENTIAL DRAIN PLUG)
41110HPLUG (FOR REAR DIFFERENTIAL FILLER)
41110JGASKET (FOR REAR DIFFERENTIAL FILLER PLUG)
41181VPLUG (FOR REAR DIFFERENTIAL FILLER)
41181WGASKET(FOR DIFFERENTIAL FILLER PLUG)
41181ZCOVER, REAR DIFFERENTIAL CARRIER
41183DEFLECTOR, REAR DIFFERENTIAL BREATHER PLUG OIL
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
41201ABEARING (FOR REAR DRIVE PINION REAR)
41201BBEARING (FOR REAR DRIVE PINION FRONT)
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
41204BNUT (FOR REAR DRIVE PINION)
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41301CASE SUB-ASSY, REAR DIFFERENTIAL
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
41302ABOLT(FOR REAR DIFFERENTIAL CASE)
41330DCOUPLING ASSY, TRANSMISSION
41330EWASHER, CONICAL SPRING (FOR TRANSMISSION COUPLING)
41330FBEARING, RADIAL BALL, NO.1 (FOR TRANSMISSION COUPLING)
41330GBEARING, RADIAL BALL, NO.2 (FOR TRANSMISSION COUPLING)
41330HSPACER (FOR TRANSMISSION COUPLING)
41334CWASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41342SHAFT, REAR DIFFERENTIAL PINION
41343PIN, REAR DIFFERENTIAL PINION SHAFT
41351WASHER, REAR DIFFERENTIAL PINION THRUST
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
41410DSEAL, OIL DIAPHRAGM
41507DHOSE, DIFFERENTIAL PRESSURE CONTROL
41507EELBOW,DIFFERENTIAL PRESSURE CONTROL HOSE
41507FCLIP, DIFFERENTIAL PRESSURE CONTROL HOSE
9025008014
main90250-08014
91511K0840
main91511-K0840
91611B0614
main91611-B0614
42 parts on this diagram · 2 diagrams in section
