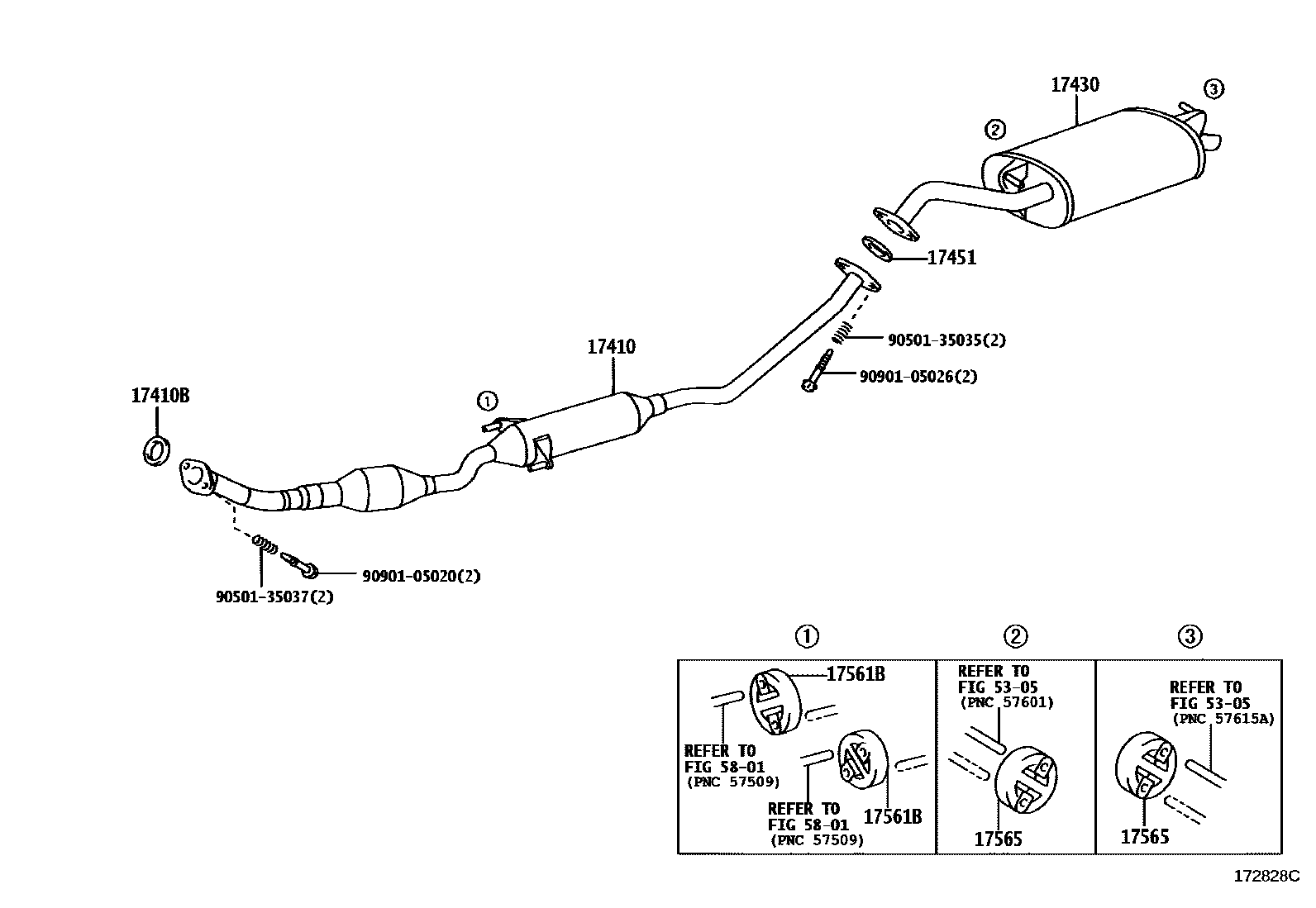

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-21220i1NZFE..NZE121200101-200209

main17410-21280i1NZFE..NZE124200101-200209

main17410-21590i1NZFE..NZE121200209-200404

main17410-21600i1NZFE..NZE124200209-200404

main17410-21650i1NZFE..NZE121200412-200609

main17410-22200i2ZZGE..ZZE123200209-200404

main17410-22290i1ZZFE..ZZE124200404-200609

main17410-22430i1ZZFE..ZZE122200404-200609

17410BGASKET, EXHAUST PIPE

main17451-21030i1NZFE,1ZZFE..NZE12#,ZZE124200404-200609

main17451-22050i2ZZGE..ZZE123200209-200404

main17451-22070i1ZZFE..ZZE122200404-200609

17430PIPE ASSY, EXHAUST, TAIL

main17430-21210i1NZFE..NZE121200101-200209

main17430-21220i1NZFE,1ZZFE..NZE124,ZZE124200209-200404

main17430-21440i1NZFE..NZE121200209-200404

main17430-22230i2ZZGE..ZZE123200101-200209

main17430-22410i1ZZFE..ZZE122200404-200509

main17430-22411i1ZZFE..ZZE122200510-200609

17451GASKET, EXHAUST PIPE

main17451-16030i1ZZFE..ZZE122200404-200609

main17451-20010i2ZZGE..ZZE123200101-200209

main17451-21050i1NZFE,1ZZFE..NZE124,ZZE124200209-200404

main17451-23010i1NZFE..NZE121200101-200209

main17451-64030i1NZFE..NZE121200209-200404

17561BSUPPORT, EXHAUST PIPE, NO.1

main17565-21030×2i1NZFE,1ZZFE,2ZZGE..NZE12#,ZZE12#200211-200404

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-21040×2i1NZFE..NZE12#; 2ZZGE..ZZE123200101-200209

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

9050135035

main90501-35035

9050135037

main90501-35037

9090105020

main90901-05020

9090105026

main90901-05026

12 parts on this diagram · 4 diagrams in section
