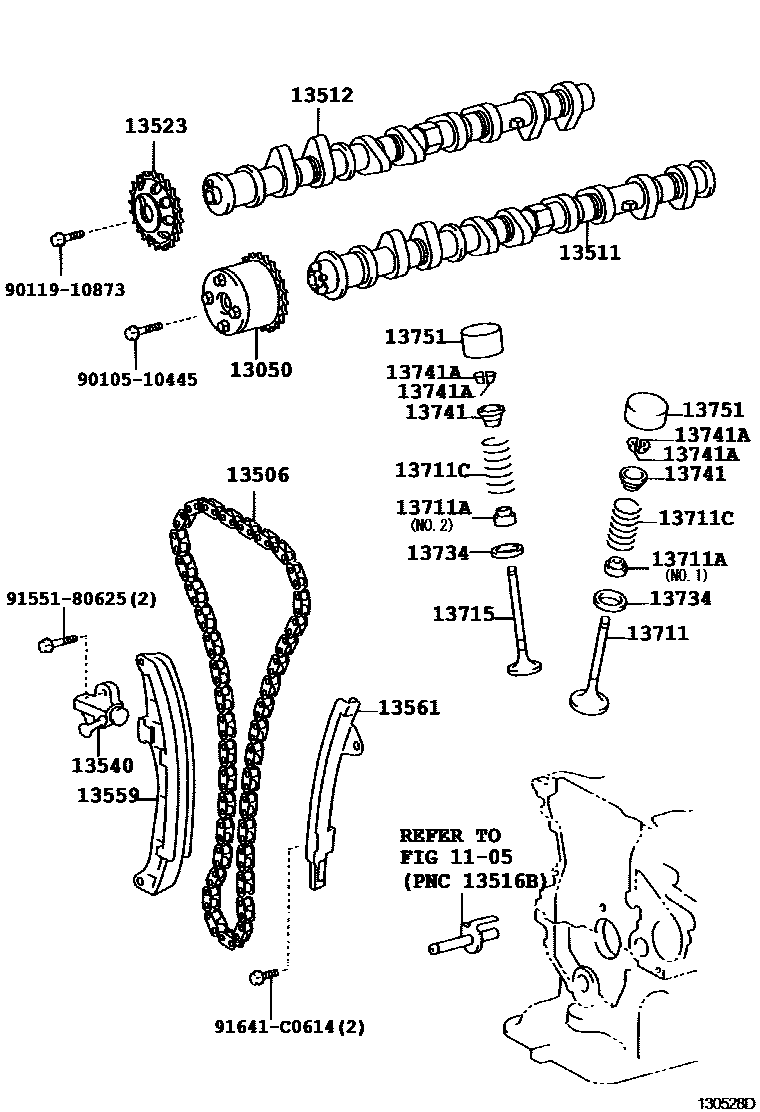

CAMSHAFT & VALVE

0001 1 0003 1 0004 1 0005 1

1105CYLINDER BLOCK

→ Go to FIG 11-05

13050GEAR ASSY, CAMSHAFT TIMING

main13050-21040i1NZFE..NZE124200404-200602

main13050-21041i1NZFE..NZE124200602-200609

main13050-21060i1NZFE..NZE121200404-200609

main13050-22011i2ZZGE..ZZE123200101-200209

main13050-22012i1ZZFE..ZZE122,124; 2ZZGE..ZZE123200512-200609

13506CHAIN SUB-ASSY

main13506-21020i1NZFE..NZE12#200101-200209

main13506-21060i1NZFE..NZE121200404-200609

main13506-22030i1ZZFE..ZZE122,124200209-200404

main13506-88600i2ZZGE..ZZE123200101-200209

13511CAMSHAFT

main13501-0D030i1ZZFE..ZZE124200501-200609

main13501-21030i1NZFE..NZE12#200101-200209

main13501-21050i1NZFE..NZE121200404-200407

main13501-21051i1NZFE..NZE121200407-200609

main13501-22060i1ZZFE..ZZE122,124200209-200210

main13501-22061i1ZZFE..ZZE122,124200210-200404

main13501-29025i2ZZGE..ZZE123200209-200404

13512CAMSHAFT, NO.2

main13502-0D010i1ZZFE..ZZE124200501-200609

main13502-21030i1NZFE..NZE12#200209-200401

main13502-21031i1NZFE..NZE124200404-200609

main13502-21040i1NZFE..NZE121200404-200407

main13502-21041i1NZFE..NZE121200407-200609

main13502-22010i1ZZFE..ZZE122,124200209-200210

main13502-22011i1ZZFE..ZZE122,124200210-200404

main13502-29015i2ZZGE..ZZE123200101-200209

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13523-21020i1NZFE..NZE12#200101-200209

main13523-22020i1NZFE..NZE12#; 1ZZFE,2ZZGE..ZZE12#200404-200609

13540TENSIONER ASSY, CHAIN, NO.1

main13540-21010i1NZFE..NZE12#200209-200308

main13540-21020i1NZFE..NZE12#200404-200609

main13540-22022i1ZZFE..ZZE122,124200404-200609

main13540-88600i2ZZGE..ZZE123200209-200404

13559SLIPPER, CHAIN TENSIONER

main13559-21010i1NZFE..NZE12#200101-200209

main13559-22011i1ZZFE..ZZE122,124200209-200404

main13559-88600i2ZZGE..ZZE123200101-200209

13561DAMPER, CHAIN VIBRATION, NO.1

main13561-21010i1NZFE..NZE124200404-200609

main13561-21020i1NZFE..NZE121200404-200609

main13561-22020i1ZZFE..ZZE122,124200209-200404

main13561-88600i2ZZGE..ZZE123200209-200404

13711VALVE, INTAKE

main13711-0D010×8i1ZZFE..ZZE124200501-200609

main13711-21010×8i1NZFE..NZE12#200101-200209

main13711-21040×8i1NZFE..NZE121200404-200609

main13711-22040×8i1ZZFE..ZZE122,124200209-200404

main13711-88600×8i2ZZGE..ZZE123200209-200404

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

main90080-31043×8i1ZZFE..ZZE124200501-200609

main90080-31046×8i1ZZFE..ZZE124200501-200609

main90913-02092×8i1NZFE..NZE12#200209-200404

main90913-02093×8i1NZFE..NZE124200404-200609

main90913-02101×8i1NZFE..NZE121; 1ZZFE..ZZE122,124200404-200609

main90913-02111×8i1ZZFE..ZZE122,124200404-200609

main90913-02112×8i1NZFE..NZE121200404-200609

main90913-02114×8i2ZZGE..ZZE123200101-200209

main90913-02115×8i2ZZGE..ZZE123200404-200609

13711CSPRING, COMPRESSION(FOR OUTER)

main90501-32053×16i1NZFE..NZE121200404-200609

main90905-01049×16i1NZFE..NZE12#200101-200209

13715VALVE, EXHAUST

main13715-0D010×8i1ZZFE..ZZE124200501-200609

main13715-21010×8i1NZFE..NZE12#200101-200209

main13715-21040×8i1NZFE..NZE121200404-200609

main13715-22040×8i1ZZFE..ZZE122,124200209-200404

main13715-88601×8i2ZZGE..ZZE123200101-200203

main13715-88602×8i2ZZGE..ZZE123200209-200404

13734SEAT, VALVE SPRING

main13734-62020×16i1NZFE..NZE121200404-200609

main13734-74010×16i1NZFE..NZE12#200101-200209

main13734-88600×16i2ZZGE..ZZE123200404-200609

13741RETAINER, VALVE SPRING

main13741-20020×16i1NZFE..NZE121200404-200508

main13741-20021×16i1NZFE..NZE121200508-200609

main13741-22020×16i1NZFE..NZE12#200101-200203

main13741-22021×16i1NZFE..NZE12#; 1ZZFE..ZZE122,124200209-200404

main13741-88600×16i2ZZGE..ZZE123200209-200404

13741ALOCK, VALVE SPRING RETAINER

main90913-03028×32i1NZFE..NZE121; 1ZZFE..ZZE122,124200404-200609

main90913-03031×32i1NZFE..NZE12#200101-200209

main90913-03033×32i2ZZGE..ZZE123200101-200209

13751LIFTER, VALVE

main13751-46030×16i1NZFE..NZE124; 1ZZFE..ZZE122,124200404-200609

main13751-46040i1NZFE..NZE124; 1ZZFE..ZZE122,124200404-200609

main13751-46050×16i1NZFE..NZE124; 1ZZFE..ZZE122,124200404-200609

main13751-46060i1NZFE..NZE124; 1ZZFE..ZZE122,124200404-200609

main13751-46070i1NZFE..NZE12#; 1ZZFE..ZZE122,124200209-200404

main13751-46080i1NZFE..NZE12#; 1ZZFE..ZZE122,124200209-200404

main13751-46090i1NZFE..NZE12#; 1ZZFE..ZZE122,124200209-200404

main13751-46100i1NZFE..NZE124; 1ZZFE..ZZE122,124200404-200609

main13751-46110×16i1NZFE..NZE124; 1ZZFE..ZZE122,124200404-200609

main13751-46120×16i1NZFE..NZE12#200101-200209

main13751-46130i1NZFE..NZE124; 1ZZFE..ZZE122,124200404-200609

main13751-46140i1NZFE..NZE124; 1ZZFE..ZZE122,124200404-200609

main13751-46150×16i1NZFE..NZE124; 1ZZFE..ZZE122,124200404-200609

main13751-46160×16i1NZFE..NZE124; 1ZZFE..ZZE122,124200404-200609

main13751-46170i1NZFE..NZE12#; 1ZZFE..ZZE122,124200209-200404

main13751-46180i1NZFE..NZE12#; 1ZZFE..ZZE122,124200209-200404

main13751-46190i1NZFE..NZE12#; 1ZZFE..ZZE122,124200209-200404

main13751-46200i1NZFE..NZE12#; 1ZZFE..ZZE122,124200209-200404

main13751-46210×16i1NZFE..NZE124; 1ZZFE..ZZE122,124200404-200609

main13751-46220i1NZFE..NZE12#; 1ZZFE..ZZE122,124200209-200404

main13751-46230×16i1NZFE..NZE124; 1ZZFE..ZZE122,124200404-200609

main13751-46240i1NZFE..NZE12#; 1ZZFE..ZZE122,124200209-200404

main13751-46250i1NZFE..NZE124; 1ZZFE..ZZE122,124200404-200609

main13751-46260×16i1NZFE..NZE124; 1ZZFE..ZZE122,124200404-200609

main13751-46270i1NZFE..NZE12#; 1ZZFE..ZZE122,124200209-200404

main13751-46280×16i1NZFE..NZE124; 1ZZFE..ZZE122,124200404-200609

main13751-46290i1NZFE..NZE12#; 1ZZFE..ZZE122,124200209-200404

main13751-46300i1NZFE..NZE12#; 1ZZFE..ZZE122,124200209-200404

main13751-46310×16i1NZFE..NZE12#200101-200209

main13751-46320i1NZFE..NZE124; 1ZZFE..ZZE122,124200404-200609

main13751-46330i1NZFE..NZE12#; 1ZZFE..ZZE122,124200209-200404

main13751-46340×16i1NZFE..NZE124; 1ZZFE..ZZE122,124200404-200609

main13751-46350×16i1NZFE..NZE124; 1ZZFE..ZZE122,124200404-200609

main13751-46360i1NZFE..NZE124; 1ZZFE..ZZE122,124200404-200609

main13751-46370i1NZFE..NZE124; 1ZZFE..ZZE122,124200404-200609

9010510445

main90105-10445

9011910873

main90119-10873

9155180625

main91551-80625

91641C0614

main91641-C0614

21 parts on this diagram · 4 diagrams in section
