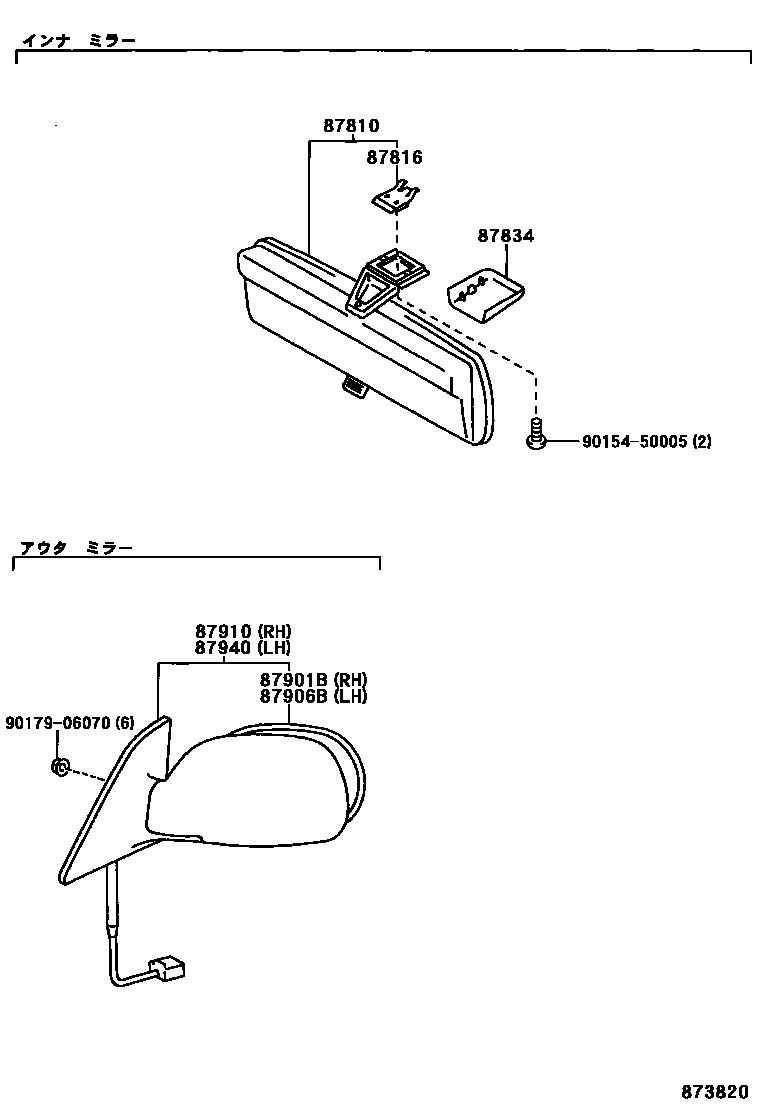

MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-12240-B3iAE11#199505-199704

LT.GRAY,TRIM1#

main87810-12270-B0iAE11#199704-200008

LT.GRAY,TRIM1#

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030iAE11#199505-199704

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-01020-B4iAE11#199704-200008

LT.GRAY,TRIM1#

main87834-12030-B4iAE11#199505-199704

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-32410iAE11#199505-199704

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-32530iAE11#199505-199704

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-1E590-A0iAE11#..BZV,FZ,XZ199505-199704

main87910-1E590-B0iAE11#..BZV,FZ,XZ199505-199605

LT.GRAY PEARL ME.,1A7

main87910-1E590-B1iAE11#..BZR,BZV,FZ,XZ199704-200008

main87910-1E590-C0iAE11#..BZV,FZ,XZ199505-199704

main87910-1E590-D0iAE11#..BZR,BZV,FZ,XZ199704-199804

main87910-1E590-D1iAE110;AE111..TRN..XZ;AE111..LVN..5F; AE111..TRN..(BZR,BZV);AE111..LVN..(BZR,BZV,XZ)..(4FC,6F)199804-200008

main87910-1E590-G0iAE11#..BZV,FZ,XZ199505-199605

main87910-1E590-G1iAE11#..FZ,XZ; AE111..BZR,BZV199704-200008

main87910-1E590-H0iAE11#..BZV,FZ,XZ199605-199610

main87910-1E590-J0iAE11#..FZ,XZ;AE111..BZV..4FC; AE111..BZV..5F199505-199704

main87910-1E590-J1iAE110199512-199604

main87910-1E590-J2iAE11#..FZ,XZ; AE111..BZR,BZV199704-200008

main87910-1E600-A0iAE111..BZG199505-199704

SUPER WHITE 2,040

main87910-1E600-B0iAE111..BZG199505-199605

LT.GRAY PEARL ME.,1A7

main87910-1E600-B1iAE111..BZG199605-199704

SILVER ME,199

main87910-1E600-C0iAE11#..FZ,XZ199612-199704

main87910-1E600-D0iAE111..BZG199505-199704

RED MM,3K4

main87910-1E600-G0iAE111..BZG199505-199605

MD.GREEN M.M.,6P0

main87910-1E600-G1iAE11#..FZ,XZ199612-199704

main87910-1E600-H0iAE111..BZG199605-199610

TURQUOISE M.M.,756

main87910-1E600-J0iAE111..BZG199505-199704

DK.BLUE MC.,8K8

main87910-1E790-A0iAE111..BZG,BZR,BZV199704-200008

main87910-1E790-B0iAE111..BZG,BZR,BZV199704-200008

main87910-1E790-C0iAE111..BZG,BZR,BZV199704-200008

main87910-1E790-D0iAE111..BZG,BZR,BZV199704-199804

main87910-1E790-D1iAE111..BZG,BZR,BZV199804-200008

main87910-1E790-G0iAE111..BZG,BZR,BZV199704-200008

main87910-1E790-J0iAE111..BZG,BZR,BZV199704-200008

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-1E590-A0iAE11#..BZV,FZ,XZ199505-199704

main87940-1E590-B0iAE11#..BZV,FZ,XZ199505-199605

LT.GRAY PEARL ME.,1A7

main87940-1E590-B1iAE11#..BZV,FZ,XZ199605-199704

main87940-1E590-C0iAE11#..BZR,BZV,FZ,XZ199704-200008

main87940-1E590-D0iAE11#..BZV,FZ,XZ199505-199704

main87940-1E590-D1iAE110;AE111..TRN..XZ;AE111..LVN..5F; AE111..TRN..(BZR,BZV);AE111..LVN..(BZR,BZV,XZ)..(4FC,6F)199804-200008

main87940-1E590-G0iAE11#..BZV,FZ,XZ199505-199605

main87940-1E590-G1iAE11#..FZ,XZ; AE111..BZR,BZV199704-200008

main87940-1E590-H0iAE11#..BZV,FZ,XZ199605-199610

main87940-1E590-J0iAE11#..FZ,XZ;AE111..BZV..4FC; AE111..BZV..5F199505-199704

main87940-1E590-J1iAE110199512-199604

main87940-1E590-J2iAE11#..FZ,XZ; AE111..BZR,BZV199704-200008

main87940-1E600-A0iAE111..BZG199505-199704

SUPER WHITE 2,040

main87940-1E600-B0iAE111..BZG199505-199605

LT.GRAY PEARL ME.,1A7

main87940-1E600-B1iAE11#..FZ,XZ199612-199704

main87940-1E600-C0iAE11#..FZ,XZ199612-199704

main87940-1E600-D0iAE111..BZG199505-199704

RED MM,3K4

main87940-1E600-G0iAE111..BZG199505-199605

MD.GREEN M.M.,6P0

main87940-1E600-G1iAE11#..FZ,XZ199612-199704

main87940-1E600-H0iAE111..BZG199605-199610

TURQUOISE M.M.,756

main87940-1E600-J0iAE111..BZG199505-199704

DK.BLUE MC.,8K8

main87940-1H120-A0iAE111..BZG,BZR,BZV199704-200008

main87940-1H120-B0iAE111..BZG,BZR,BZV199704-200008

main87940-1H120-C0iAE111..BZG,BZR,BZV199704-200008

main87940-1H120-D0iAE111..BZG,BZR,BZV199704-199804

main87940-1H120-D1iAE111..BZG,BZR,BZV199804-200008

main87940-1H120-G0iAE111..BZG,BZR,BZV199704-200008

main87940-1H120-J0iAE111..BZG,BZR,BZV199704-200008

9015450005

main90154-50005

9017906070

main90179-06070

9 parts on this diagram · 1 diagram in section
