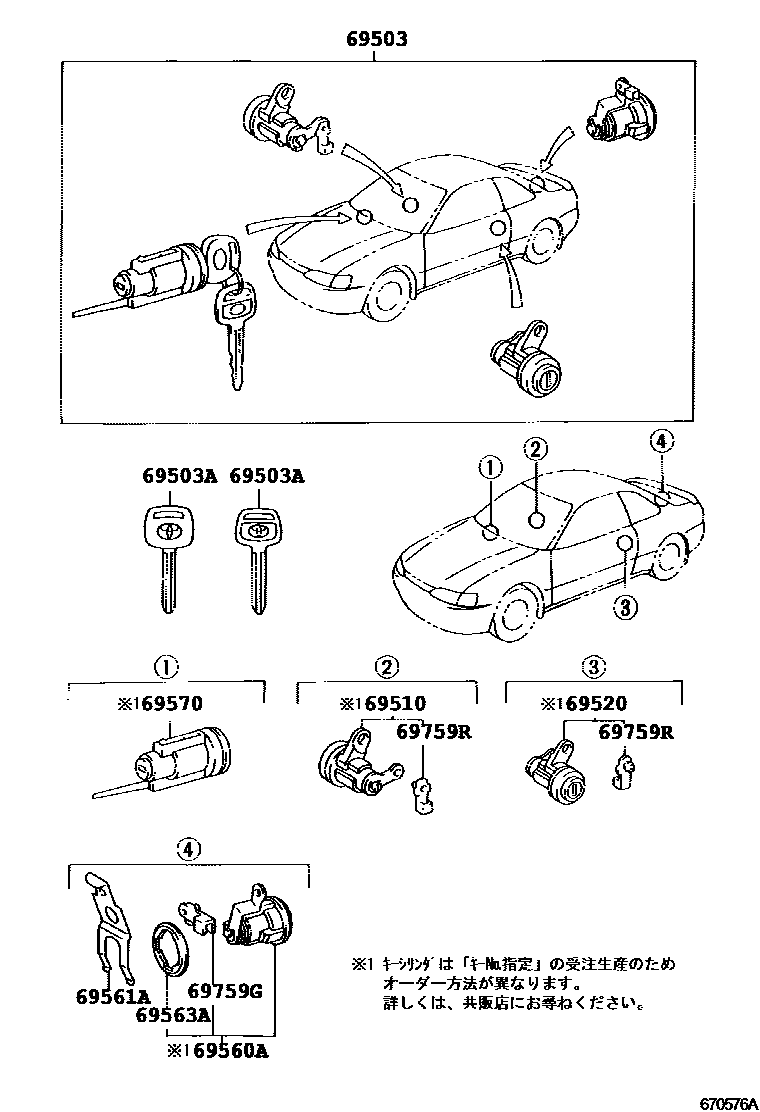

LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-1A870iAE11#..BZR,BZV,FZ199704-199804

main69005-1E060iAE111..(BZG,XZ)..(4FC,5F); AE111..6F;AE111..BZV199704-199804

main69005-1E400iAE11#..BZR,BZV,FZ199804-200008

main69005-1E410iAE111199804-200008

69503AKEY, BLANK

main90999-00185iAE11#199505-199704

main90999-00186×2iAE11#199505-199704

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-12260iAE11#199505-199704

69520CYLINDER ASSY, FRONT DOOR LOCK, LH

main69520-12260iAE11#199704-200008

69560ACYLINDER ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main69560-32290iAE11#199505-199704

69561ARETAINER, LUGGAGE COMPARTMENT LOCK CYLINDER

main69561-12180iAE11#199505-199704

69563APAD, LUGGAGE COMPARTMENT DOOR LOCK CYLINDER

main69563-20040iAE11#199505-199704

69570CYLINDER ASSY, IGNITION SWITCH LOCK

main69570-12150iAE11#199505-199605

main69570-20220iAE111..BZG,XZ199605-199704

69759GSNAP, LUGGAGE DOOR LOCK CYLINDER

main69759-20090iAE11#199505-199704

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-30040iAE11#199505-199704

main69759-30050iAE11#199505-199704

10 parts on this diagram · 1 diagram in section
