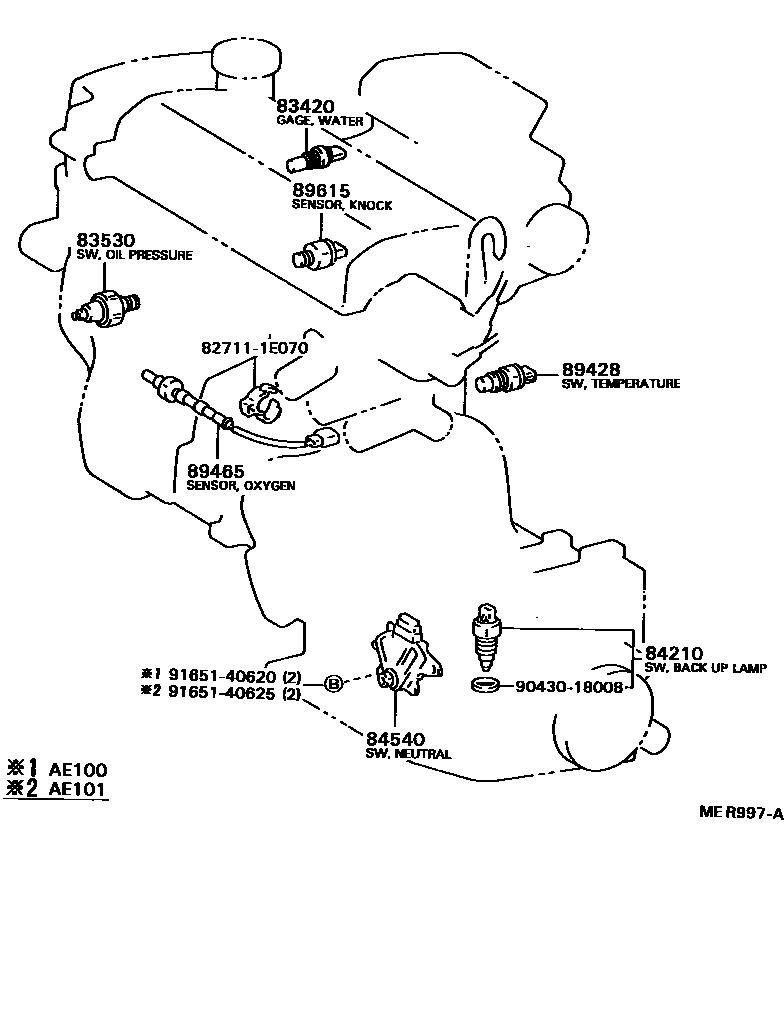

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE ROOM 0005 1INSTRUMENT PANEL SWITCH 0006 1COWL RH 0007 1COWL LH 0008 1COMBINATION SWITCH 0009 1COMBINATION SWITCH 0010 1ROOF,FRONT DOOR & SEAT 0011 1ROOF,FROMT DOOR & SEAT 0012 1FLOOR & LUGGAGE 0013 1FLOOR,REAR DOOR & LUGGAGE

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iAE101..G,GT,GTAPX199205-199605

main83420-16050iAE10#..F,S,SJ,X199205-199212

main83420-20020iAE101..GTZ199106-199505

main83420-20040iAE10#199605

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iAE10#..F,X199803

main83530-28040iAE101..G199803

main83530-30051iAE10#..F,S,SJ,X199106-199208

main83530-30080iAE101..G,GT,GTAPX,GTZ199106-199803

main83530-30090iAE10#..F,S,SJ,X199208-199803

main83530-60020iAE10#..F,X199803

main83530-60040iAE101..G199803

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iAE10#..MTM..(F,G,GT,GTAPX,S,SJ,X)199106

main84210-60030iAE101..GTZ199106-199505

84540SWITCH ASSY, NEUTRAL START

main84540-12200iAE101..4FC199305

main84540-12210iAE101..4FC199305

main84540-16040iAE100..4FC199305-199505

main84540-16050iAE100..4FC199505

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-12160iAE10#199409

89465SENSOR, OXYGEN

main89465-12270iAE100199106-199505

main89465-12280iAE101..SJ,X199106-199704

main89465-12430iAE100199505

main89465-13020iAE101..X199704

main89465-19495iAE101..G,GT,GTAPX199106-199505

main89465-19505iAE101..GTZ199106-199505

main89465-19685iAE101..G199505

89615SENSOR, KNOCK CONTROL

main89615-12030iAE10#199704

main89615-12040iAE101..G,GT,GTAPX199106-199505

main89615-12050iAE101..G,GT,GTAPX199106-199505

main89615-12060iAE101..GTZ199106-199505

main89615-22030iAE10#199505

main89615-22040iAE101..G199505-199704

827111E070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E070

9043018008

main90430-18008

9165140620

main91651-40620

9165140625

main91651-40625

11 parts on this diagram · 13 diagrams in section
