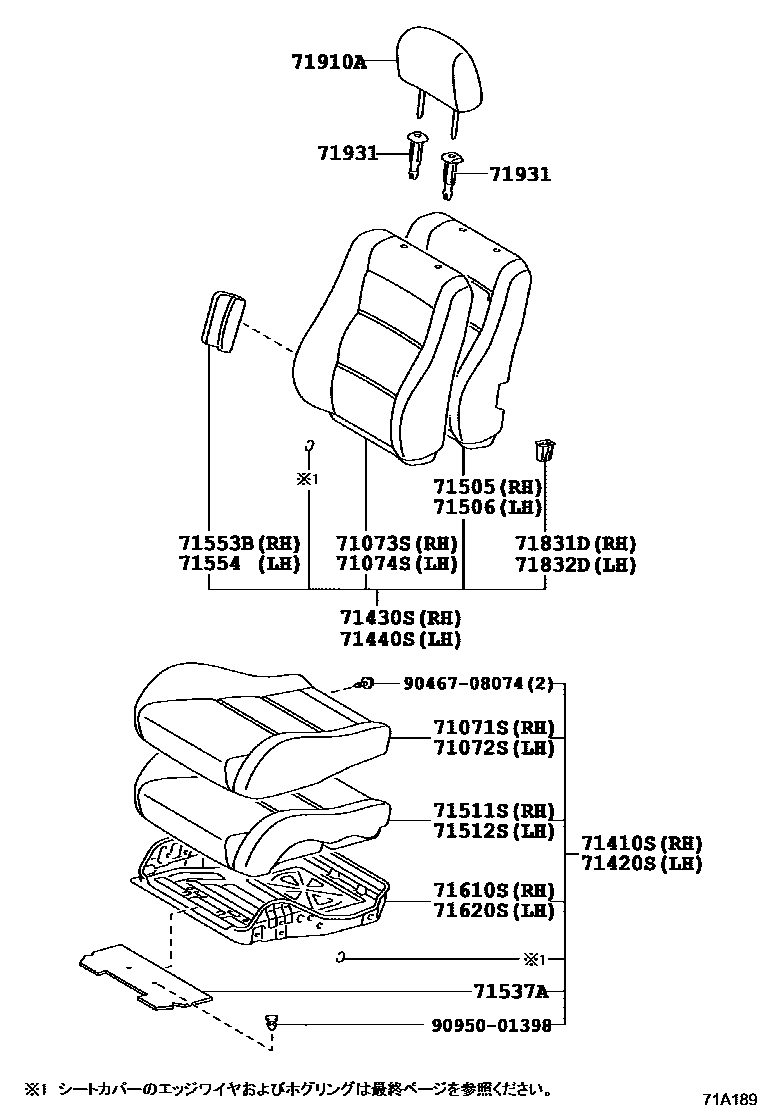

FRONT SEAT & SEAT TRACK

0001 1 0003 1 0005 1 0007 1 0008 1 0010 1 0012 1 0014 1��(���-�-�) 0015 1�������

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-1K370-B0iAE100; AE101..SJ199106-199205

GRAY,TRIM2#; GRAY,TRIM20

main71071-1K370-B1iAE100..S; AE101..SJ199205-199305

GRAY,TRIM2#; GRAY,TRIM20

main71071-1K370-H0iAE101..SJ199106-199205

AQUA,TRIM21

main71071-1K370-H1iAE101..SJ199205-199305

AQUA,TRIM21

main71071-1K370-K0iAE101..SJ199106-199205

LAVENDER,TRIM22

main71071-1K370-K1iAE101..SJ199205-199305

LAVENDER,TRIM22

main71071-1K371-B2iAE10#..GT,S,SJ199305-199311

GRAY,TRIM2#

main71071-1K372-B3iAE10#..GT,S,SJ199311-199505

GRAY,TRIM2#

main71071-1K380-B0iAE101..GT,GTZ; AE101..GTAPX199106-199205

GRAY/BLACK,TRIM2#; GRAY/BLACK,TRIM20

main71071-1K380-B1iAE101..GT,GTZ; AE101..GTAPX199205-199305

GRAY/BLACK,TRIM2#; GRAY/BLACK,TRIM20

main71071-1K380-H0iAE101..GTAPX199106-199205

AQUA/BLACK,TRIM21

main71071-1K380-H1iAE101..GTAPX199205-199305

AQUA/BLACK,TRIM21

main71071-1K380-K0iAE101..GTAPX199106-199205

LAVENDER/BLACK,TRIM22

main71071-1K380-K1iAE101..GTAPX199205-199305

LAVENDER/BLACK,TRIM22

main71071-1K381-B2iAE101..GTAPX,GTZ199305-199311

GRAY,TRIM2#

main71071-1K382-B3iAE101..GTAPX,GTZ199311-199505

GRAY/BLACK,TRIM2#

main71071-1K390-B0iAE101..GTAPX,GTZ199106-199505

main71518-12030-B0iAE101..G; AE101..X199205-199405

main71518-12040-B0iAE10#..F,X199205-199405

GRAY,TRIM2#

main71518-12040-G0iAE10#..F,X199205-199405

SPRUCE,TRIM6#

main71518-12060-B0iAE101..G; AE101..X199205-199405

main71518-12070-B0iAE10#..F,X199205-199405

main71518-12070-G0iAE10#..F,X199205-199405

main71518-12100-B0iAE10#..F,X; AE100..CRE; AE100..MRN199412-199504

main71518-12100-C0iAE101..G; AE101..X199704-199808

main71518-12110-B0iAE10#..F,X199405-199704

GRAY,TRIM2#

main71518-12110-C0iAE10#..F,X199704-199808

BLACK,TRIM2#

main71518-12110-G0iAE10#..F,X199405-199704

SPRUCE,TRIM6#

main71518-12110-G1iAE10#..F,X199704-199808

DK. SPRUCE,TRIM6#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-1E310-B0iAE100; AE101..SJ199106-199205

GRAY,TRIM2#; GRAY,TRIM20

main71072-1E310-B1iAE100..S; AE101..SJ199205-199305

GRAY,TRIM2#; GRAY,TRIM20

main71072-1E310-H0iAE101..SJ199106-199205

AQUA,TRIM21

main71072-1E310-H1iAE101..SJ199205-199305

AQUA,TRIM21

main71072-1E310-K0iAE101..SJ199106-199205

LAVENDER,TRIM22

main71072-1E310-K1iAE101..SJ199205-199305

LAVENDER,TRIM22

main71072-1E311-B2iAE10#..GT,S,SJ199305-199311

GRAY,TRIM2#

main71072-1E312-B3iAE10#..GT,S,SJ199311-199505

GRAY,TRIM2#

main71072-1E320-B0iAE101..GT,GTZ; AE101..GTAPX199106-199205

GRAY/BLACK,TRIM2#; GRAY/BLACK,TRIM20

main71072-1E320-B1iAE101..GT,GTZ; AE101..GTAPX199205-199305

GRAY/BLACK,TRIM2#; GRAY/BLACK,TRIM20

main71072-1E320-H0iAE101..GTAPX199106-199205

AQUA/BLACK,TRIM21

main71072-1E320-H1iAE101..GTAPX199205-199305

AQUA/BLACK,TRIM21

main71072-1E320-K0iAE101..GTAPX199106-199205

LAVENDER/BLACK,TRIM22

main71072-1E320-K1iAE101..GTAPX199205-199305

LAVENDER/BLACK,TRIM22

main71072-1E321-B2iAE101..GTAPX,GTZ199305-199311

GRAY,TRIM2#

main71072-1E322-B3iAE101..GTAPX,GTZ199311-199505

GRAY/BLACK,TRIM2#

main71072-1E440-B0iAE101..GTAPX,GTZ199106-199505

main71528-12030-B0iAE101..G; AE101..X199205-199405

main71528-12040-B0iAE10#..F,X199205-199405

GRAY,TRIM2#

main71528-12040-G0iAE10#..F,X199205-199405

SPRUCE,TRIM6#

main71528-12070-B0iAE10#..F,X; AE100..CRE; AE100..MRN199412-199504

main71528-12070-C0iAE101199704-199808

main71528-12080-B0iAE10#..F,X199405-199704

GRAY,TRIM2#

main71528-12080-C0iAE10#..F,X199704-199808

BLACK,TRIM2#

main71528-12080-G0iAE10#..F,X199405-199704

SPRUCE,TRIM6#

main71528-12080-G1iAE10#..F,X199704-199808

DK. SPRUCE,TRIM6#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-1K010-B0iAE100; AE101..SJ199106-199205

GRAY,TRIM2#; GRAY,TRIM20

main71073-1K010-B1iAE100..S; AE101..SJ199205-199305

GRAY,TRIM2#; GRAY,TRIM20

main71073-1K010-H0iAE101..SJ199106-199205

AQUA,TRIM21

main71073-1K010-H1iAE101..SJ199205-199305

AQUA,TRIM21

main71073-1K010-K0iAE101..SJ199106-199205

LAVENDER,TRIM22

main71073-1K010-K1iAE101..SJ199205-199305

LAVENDER,TRIM22

main71073-1K011-B2iAE10#..GT,S,SJ199305-199311

GRAY,TRIM2#

main71073-1K012-B3iAE10#..GT,S,SJ199311-199505

GRAY,TRIM2#

main71073-1K040-B0iAE101..GT,GTZ; AE101..GTAPX199106-199205

GRAY/BLACK,TRIM2#; GRAY/BLACK,TRIM20

main71073-1K040-B1iAE101..GT,GTZ; AE101..GTAPX199205-199305

GRAY/BLACK,TRIM2#; GRAY/BLACK,TRIM20

main71073-1K040-H0iAE101..GTAPX199106-199205

AQUA/BLACK,TRIM21

main71073-1K040-H1iAE101..GTAPX199205-199305

AQUA/BLACK,TRIM21

main71073-1K040-K0iAE101..GTAPX199106-199205

LAVENDER/BLACK,TRIM22

main71073-1K040-K1iAE101..GTAPX199205-199305

LAVENDER/BLACK,TRIM22

main71073-1K041-B3iAE101..GTAPX,GTZ199305-199311

GRAY,TRIM2#

main71073-1K042-B4iAE101..GTAPX,GTZ199311-199505

GRAY,TRIM2#

main71073-1K050-B0iAE101..GTAPX,GTZ199106-199505

main71073-1K450-B0iAE101..G; AE101..X199205-199405

main71073-1K490-B0iAE10#..F,X199205-199405

GRAY,TRIM2#

main71073-1K490-G0iAE10#..F,X199205-199405

SPRUCE,TRIM6#

main71073-1K600-B0iAE101..G; AE101..X199205-199405

main71073-1K610-B0iAE10#..F,X199205-199405

main71073-1K610-G0iAE10#..F,X199205-199405

main71073-1K690-B0iAE101..G199405-199704

GRAY,TRIM2#

main71073-1K690-C0iAE101199704-199808

main71073-1K700-B1iAE10#..F,X199405-199704

GRAY,TRIM2#

main71073-1K700-C0iAE10#..F,X199704-199808

BLACK,TRIM2#

main71073-1K700-G1iAE10#..F,X199405-199704

SPRUCE,TRIM6#

main71073-1K700-G2iAE10#..F,X199704-199808

DK. SPRUCE,TRIM6#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-1E880-B0iAE100; AE101..SJ199106-199205

GRAY,TRIM2#; GRAY,TRIM20

main71074-1E880-B1iAE100..S; AE101..SJ199205-199305

GRAY,TRIM2#; GRAY,TRIM20

main71074-1E880-B2iAE10#..GT,S,SJ199305-199311

GRAY,TRIM2#

main71074-1E880-H0iAE101..SJ199106-199205

AQUA,TRIM21

main71074-1E880-H1iAE101..SJ199205-199305

AQUA,TRIM21

main71074-1E880-K0iAE101..SJ199106-199205

LAVENDER,TRIM22

main71074-1E880-K1iAE101..SJ199205-199305

LAVENDER,TRIM22

main71074-1E882-B3iAE10#..GT,S,SJ199311-199505

GRAY,TRIM2#

main71074-1E890-B0iAE101..GT,GTZ; AE101..GTAPX199106-199205

GRAY/BLACK,TRIM2#; GRAY/BLACK,TRIM20

main71074-1E890-B1iAE101..GT,GTZ; AE101..GTAPX199205-199305

GRAY/BLACK,TRIM2#; GRAY/BLACK,TRIM20

main71074-1E890-H0iAE101..GTAPX199106-199205

AQUA/BLACK,TRIM21

main71074-1E890-H1iAE101..GTAPX199205-199305

AQUA/BLACK,TRIM21

main71074-1E890-K0iAE101..GTAPX199106-199205

LAVENDER/BLACK,TRIM22

main71074-1E890-K1iAE101..GTAPX199205-199305

LAVENDER/BLACK,TRIM22

main71074-1E891-B2iAE101..GTAPX,GTZ199305-199311

GRAY,TRIM2#

main71074-1E892-B3iAE101..GTAPX,GTZ199311-199505

GRAY,TRIM2#

main71074-1H010-B0iAE101..GTAPX,GTZ199106-199505

main71074-1H350-B0iAE100..F199312-199404

main71074-1H360-B0iAE10#..F,X199205-199405

GRAY,TRIM2#

main71074-1H360-G0iAE10#..F,X199205-199405

SPRUCE,TRIM6#

main71074-1H540-B0iAE10#..F,X; AE100..CRE; AE100..MRN199412-199504

main71074-1H540-C0iAE101199704-199808

main71074-1H550-B1iAE10#..F,X199405-199704

GRAY,TRIM2#

main71074-1H550-C0iAE10#..F,X199704-199808

BLACK,TRIM2#

main71074-1H550-G1iAE10#..F,X199405-199704

SPRUCE,TRIM6#

main71074-1H550-G2iAE10#..F,X199704-199808

DK. SPRUCE,TRIM6#

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-1K580-B0iAE101..GT,GTZ; AE101..GTAPX199106-199205

***,GRAY/BLACK,TRIM2#; ***,GRAY/BLACK,TRIM20

main71410-1K580-B1iAE101..GT,GTZ; AE101..GTAPX199205-199305

***,GRAY/BLACK,TRIM2#; ***,GRAY/BLACK,TRIM20

main71410-1K580-H0iAE101..GTAPX199106-199205

***,AQUA/BLACK,TRIM21

main71410-1K580-H1iAE101..GTAPX199205-199305

***,AQUA/BLACK,TRIM21

main71410-1K580-K0iAE101..GTAPX199106-199205

***,LAVENDER/BLACK,TRIM22

main71410-1K580-K1iAE101..GTAPX199205-199305

***,LAVENDER/BLACK,TRIM22

main71410-1K581-B2iAE101..GTAPX,GTZ199305-199311

***,GRAY,TRIM2#

main71410-1K582-B3iAE101..GTAPX,GTZ199311-199505

***,GRAY/BLACK,TRIM2#

main71410-1K590-B0iAE100; AE101..SJ199106-199205

***,GRAY,TRIM2#; ***,GRAY,TRIM20

main71410-1K590-B1iAE100..S; AE101..SJ199205-199305

***,GRAY,TRIM2#; ***,GRAY,TRIM20

main71410-1K590-H0iAE101..SJ199106-199205

***,AQUA,TRIM21

main71410-1K590-H1iAE101..SJ199205-199305

***,AQUA,TRIM21

main71410-1K590-K0iAE101..SJ199106-199205

***,LAVENDER,TRIM22

main71410-1K590-K1iAE101..SJ199205-199305

***,LAVENDER,TRIM22

main71410-1K591-B2iAE10#..GT,S,SJ199305-199311

***,GRAY,TRIM2#

main71410-1K592-B3iAE10#..GT,S,SJ199311-199505

***,GRAY,TRIM2#

main71410-1K600-B0iAE101..GTAPX,GTZ199106-199505

main71410-1K790-C0iAE101..GTAPX,GTZ199305-199505

main71410-1L180-B0iAE101..G; AE101..X199205-199405

main71410-1L190-B0iAE101..X199205-199405

***,GRAY,TRIM2#

main71410-1L190-G0iAE10#..F,X199205-199405

***,SPRUCE,TRIM6#

main71410-1L210-B0iAE101..G; AE101..X199205-199405

main71410-1L220-B0iAE10#..F,X199205-199405

main71410-1L220-G0iAE10#..F,X199205-199405

main71410-1L480-B0iAE101..G199405-199704

***,GRAY,TRIM2#

main71410-1L480-C0iAE101199704-199808

main71410-1L490-B1iAE10#..F,X199405-199704

***,GRAY,TRIM2#

main71410-1L490-C0iAE10#..F,X199704-199808

***,BLACK,TRIM2#

main71410-1L490-G1iAE10#..F,X199405-199704

***,SPRUCE,TRIM6#

main71410-1L490-G2iAE10#..F,X199704-199808

***,DK. SPRUCE,TRIM6#

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-1E510-B0iAE101..GT,GTZ; AE101..GTAPX199106-199205

***,GRAY/BLACK,TRIM2#; ***,GRAY/BLACK,TRIM20

main71420-1E510-B1iAE101..GT,GTZ; AE101..GTAPX199205-199305

***,GRAY/BLACK,TRIM2#; ***,GRAY/BLACK,TRIM20

main71420-1E510-H0iAE101..GTAPX199106-199205

***,AQUA/BLACK,TRIM21

main71420-1E510-H1iAE101..GTAPX199205-199305

***,AQUA/BLACK,TRIM21

main71420-1E510-K0iAE101..GTAPX199106-199205

***,LAVENDER/BLACK,TRIM22

main71420-1E510-K1iAE101..GTAPX199205-199305

***,LAVENDER/BLACK,TRIM22

main71420-1E511-B2iAE101..GTAPX,GTZ199305-199311

***,GRAY,TRIM2#

main71420-1E512-B3iAE101..GTAPX,GTZ199311-199505

***,GRAY/BLACK,TRIM2#

main71420-1E520-B0iAE100; AE101..SJ199106-199205

***,GRAY,TRIM2#; ***,GRAY,TRIM20

main71420-1E520-B1iAE100..S; AE101..SJ199205-199305

***,GRAY,TRIM2#; ***,GRAY,TRIM20

main71420-1E520-H0iAE101..SJ199106-199205

***,AQUA,TRIM21

main71420-1E520-H1iAE101..SJ199205-199305

***,AQUA,TRIM21

main71420-1E520-K0iAE101..SJ199106-199205

***,LAVENDER,TRIM22

main71420-1E520-K1iAE101..SJ199205-199305

***,LAVENDER,TRIM22

main71420-1E521-B2iAE10#..GT,S,SJ199305-199311

***,GRAY,TRIM2#

main71420-1E522-B3iAE10#..GT,S,SJ199311-199505

***,GRAY,TRIM2#

main71420-1E640-B0iAE101..GTAPX,GTZ199106-199505

main71420-1E650-C0iAE101..GTZ199106-199305

main71420-1H110-B0iAE101..G; AE101..X199205-199405

main71420-1H210-B0iAE10#..F,X199205-199405

***,GRAY,TRIM2#

main71420-1H210-G0iAE10#..F,X199205-199405

***,SPRUCE,TRIM6#

main71420-1H400-B0iAE101..G199405-199704

***,GRAY,TRIM2#

main71420-1H400-C0iAE101199704-199808

main71420-1H410-B1iAE10#..F,X199405-199704

***,GRAY,TRIM2#

main71420-1H410-C0iAE10#..F,X199704-199808

***,BLACK,TRIM2#

main71420-1H410-G1iAE10#..F,X199405-199704

***,SPRUCE,TRIM6#

main71420-1H410-G2iAE10#..F,X199704-199808

***,DK. SPRUCE,TRIM6#

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-1K290-B0iAE101..GT,GTZ; AE101..GTAPX199106-199205

***,GRAY/BLACK,TRIM2#; ***,GRAY/BLACK,TRIM20

main71430-1K290-B1iAE101..GT,GTZ; AE101..GTAPX199205-199305

***,GRAY/BLACK,TRIM2#; ***,GRAY/BLACK,TRIM20

main71430-1K290-H0iAE101..GTAPX199106-199205

***,AQUA/BLACK,TRIM21

main71430-1K290-H1iAE101..GTAPX199205-199305

***,AQUA/BLACK,TRIM21

main71430-1K290-K0iAE101..GTAPX199106-199205

***,LAVENDER/BLACK,TRIM22

main71430-1K290-K1iAE101..GTAPX199205-199305

***,LAVENDER/BLACK,TRIM22

main71430-1K291-B2iAE101..GTAPX,GTZ199305-199311

***,GRAY,TRIM2#

main71430-1K292-B3iAE101..GTAPX,GTZ199311-199505

***,GRAY,TRIM2#

main71430-1K300-B0iAE100; AE101..SJ199106-199205

***,GRAY,TRIM2#; ***,GRAY,TRIM20

main71430-1K300-B1iAE100..S; AE101..SJ199205-199305

***,GRAY,TRIM2#; ***,GRAY,TRIM20

main71430-1K300-H0iAE101..SJ199106-199205

***,AQUQ,TRIM21

main71430-1K300-H1iAE101..SJ199205-199305

***,AQUA,TRIM21

main71430-1K300-K0iAE101..SJ199106-199205

***,LAVENDER,TRIM22

main71430-1K300-K1iAE101..SJ199205-199305

***,LAVENDER,TRIM22

main71430-1K301-B2iAE10#..GT,S,SJ199305-199311

***,GRAY,TRIM2#

main71430-1K302-B3iAE10#..GT,S,SJ199311-199505

***,GRAY,TRIM2#

main71430-1K330-B0iAE101..GTAPX,GTZ199106-199505

main71430-1K470-C0iAE101..GTZ199106-199305

main71430-1K790-B0iAE101..G; AE101..X199205-199405

main71430-1K800-B0iAE10#..F,X199205-199405

***,GRAY,TRIM2#

main71430-1K800-G0iAE10#..F,X199205-199405

***,SPRUCE,TRIM6#

main71430-1L110-B0iAE101..G; AE101..X199205-199405

main71430-1L120-B0iAE10#..F,X199205-199405

main71430-1L120-G0iAE10#..F,X199205-199405

main71430-1L190-B0iAE101..G199405-199704

***,GRAY,TRIM2#

main71430-1L190-C0iAE101199704-199808

main71430-1L200-B1iAE10#..F,X199405-199704

***,GRAY,TRIM2#

main71430-1L200-C0iAE10#..F,X199704-199808

***,BLACK,TRIM2#

main71430-1L200-G1iAE10#..F,X199405-199704

***,SPRUCE,TRIM6#

main71430-1L200-G2iAE10#..F,X199704-199808

***,DK. SPRUCE,TRIM6#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-1K190-B0iAE101..GT,GTZ; AE101..GTAPX199106-199205

***,GRAY/BLACK,TRIM2#; ***,GRAY/BLACK,TRIM20

main71440-1K190-B1iAE101..GT,GTZ; AE101..GTAPX199205-199305

***,GRAY/BLACK,TRIM2#; ***,GRAY/BLACK,TRIM20

main71440-1K190-H0iAE101..GTAPX199106-199205

***,AQUA/BLACK,TRIM21

main71440-1K190-H1iAE101..GTAPX199205-199305

***,AQUA/BLACK,TRIM21

main71440-1K190-K0iAE101..GTAPX199106-199205

***,LAVENDER/BLACK,TRIM22

main71440-1K190-K1iAE101..GTAPX199205-199305

***,LAVENDER/BLACK,TRIM22

main71440-1K191-B2iAE101..GTAPX,GTZ199305-199311

***,GRAY,TRIM2#

main71440-1K192-B3iAE101..GTAPX,GTZ199311-199505

***,GRAY,TRIM2#

main71440-1K250-B0iAE100; AE101..SJ199106-199205

***,GRAY,TRIM2#; ***,GRAY,TRIM20

main71440-1K250-B1iAE100..S; AE101..SJ199205-199305

***,GRAY,TRIM2#; ***,GRAY,TRIM20

main71440-1K250-B2iAE10#..GT,S,SJ199305-199311

***,GRAY,TRIM2#

main71440-1K250-H0iAE101..SJ199106-199205

***,AQUA,TRIM21

main71440-1K250-H1iAE101..SJ199205-199305

***,AQUA,TRIM21

main71440-1K250-K0iAE101..SJ199106-199205

***,LAVENDER,TRIM22

main71440-1K250-K1iAE101..SJ199205-199305

***,LAVENDER,TRIM22

main71440-1K252-B3iAE10#..GT,S,SJ199311-199505

***,GRAY,TRIM2#

main71440-1K260-B0iAE101..GTAPX,GTZ199106-199505

main71440-1K400-C0iAE101..GTZ199106-199305

main71440-1K620-B0iAE101..G; AE101..X199205-199405

main71440-1K630-B0iAE10#..F,X199205-199405

***,GRAY,TRIM2#

main71440-1K630-G0iAE10#..F,X199205-199405

***,SPRUCE,TRIM6#

main71440-1L010-B0iAE101..G; AE101..X199405-199704

main71440-1L010-C0iAE101..G; AE101..X199704-199808

main71440-1L020-B1iAE10#..F,X199405-199704

***,GRAY,TRIM2#

main71440-1L020-C0iAE10#..F,X199704-199808

***,BLACK,TRIM2#

main71440-1L020-G1iAE10#..F,X199405-199704

***,SPRUCE,TRIM6#

main71440-1L020-G2iAE10#..F,X199704-199808

***,DK. SPRUCE,TRIM6#

71505PAD SUB-ASSY, FRONT SEATBACK W/FRAME, RH

main71505-12110iAE10#..S,SJ199106-199305

main71505-12111iAE10#..GT,S,SJ199311-199505

main71505-12320iAE10#..HT199205

71506PAD SUB-ASSY, FRONT SEATBACK W/FRAME, LH

main71506-12070iAE10#..S,SJ199106-199305

main71506-12071iAE10#..GT,S,SJ199311-199505

main71506-12210iAE10#..HT199205

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-12750iAE10#..CP199106-199505

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71511-12750iAE10#..CP199106-199505

71537APROTECTOR, FRONT SEAT CUSHION

main71537-10010-C0×4iAE101..GTZ199106-199505

BLACK,TRIM2#

main71537-12010×2iAE10#..CP199203-199505

71553BPAD, FRONT SEATBACK, B

main71553-12280iAE10#..S,SJ199106-199305

main71553-12320iAE10#..HT199205

71554PAD, FRONT SEATBACK, C

main71553-12280iAE10#..GT,S,SJ199305-199505

main71554-12160iAE10#..HT199205

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71610-12350iAE10#..CP199106-199505

main71610-20470iAE10#..HT199205

71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71610-12350iAE10#..CP199106-199505

main71610-20470iAE10#..HT199205

71831DCOVER, FRONT SEAT HINGE, RH

main71831-16010iAE10#199106

71832DCOVER, FRONT SEAT HINGE, LH

main71831-16010iAE10#199106

71910AHEADREST ASSY, FRONT SEAT

main71910-17100-01×2iAE101..GTAPX,GTZ199305-199311

main71910-17100-C1×2iAE101..GTAPX,GTZ199311-199505

main71910-1A220-C0×2iAE101..GT,GTZ; AE101..GTAPX199106-199205

BLACK,TRIM2#; BLACK,TRIM20,21,22

main71910-1A220-C1×2iAE101..GT,GTZ; AE101..GTAPX199205-199305

BLACK,TRIM2#; BLACK,TRIM20,21,22

main71910-1A221-C2×2iAE101..GTAPX,GTZ199305-199311

GRAY,TRIM2#

main71910-1A222-B0×2iAE101..GTAPX,GTZ199311-199505

GRAY/BLACK,TRIM2#

main71910-1A230-B0×2iAE10#..GT,S,SJ199305-199505

GRAY,TRIM2#

main71910-1A230-C0×2iAE100; AE101..SJ199106-199205

BLACK,TRIM2#; BLACK,TRIM20,21,22

main71910-1A230-C1×2iAE100..S; AE101..SJ199205-199305

BLACK,TRIM2#; BLACK,TRIM20,21,22

main71910-1A240-C0×2iAE101..GTAPX,GTZ199106-199505

main71910-1A440-B0iAE101..G; AE101..X199205-199405

main71910-1A450-B0×2iAE10#..F,X199205-199405

GRAY,TRIM2#

main71910-1A450-G0×2iAE10#..F,X199205-199405

SPRUCE,TRIM6#

main71910-1A470-B0iAE101..G; AE101..X199205-199405

main71910-1A650-B0iAE10#..F,X; AE100..CRE; AE100..MRN199412-199504

main71910-1A650-B1iAE101..G..4FC; AE101..X;AE101..6F199704-199808

main71910-1A660-B1×2iAE10#..F,X199405-199704

GRAY,TRIM2#

main71910-1A660-B2×2iAE10#..F,X199704-199808

SHADOW GRAY,TRIM2#

main71910-1A660-G1×2iAE10#..F,X199405-199704

SPRUCE,TRIM6#

main71910-1A660-G2×2iAE10#..F,X199704-199808

SPRUCE,TRIM6#

main71910-1A670-B0iAE10#..F,X; AE100..CRE; AE100..MRN199412-199504

main71910-1A670-B1iAE101..G..4FC; AE101..X;AE101..6F199704-199808

71931SUPPORT, FRONT SEAT HEADREST

main71930-12070-C0×2iAE10#..GT,GTZ,S; AE101..GTAPX; AE101..SJ199106-199305

main71930-12080-C0×2iAE10#..F,X; AE101..G199205-199701

main71930-12080-G0×2iAE10#..F,X; AE101..G199205-199701

main71930-12090-C0×2iAE10#199701

main71930-12090-G0×2iAE10#..F,X199701

main71931-12040-C0×2iAE10#..GT,GTZ,S; AE101..GTAPX; AE101..SJ199106-199305

main71931-12060-C0iAE101..X199205-199705

main71931-12060-G0iAE101..X199205-199705

9046708074

main90467-08074

9095001398

main90950-01398

23 parts on this diagram · 9 diagrams in section
