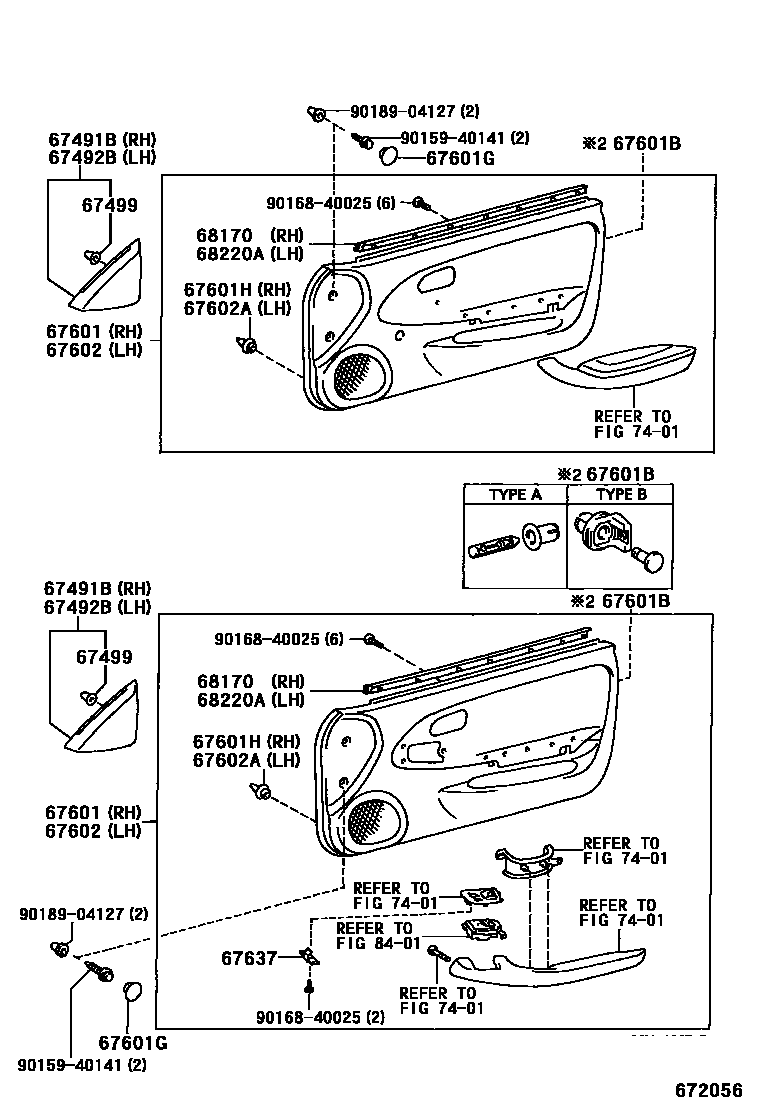

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1 0004 1 0005 1

67491BGARNISH, FRONT DOOR WINDOW UPPER BRACKET, RH

main67491-12290-22iAE10#..GT,GTZ,S; AE101..SJ199106-199305

BLACK,TRIM2#; BLACK,TRIM20,21,22

main67491-12300-22iAE10#..GT,GTZ,S,SJ; AE101..GTAPX199305-199505

main67491-12340iAE10#..HT199205-199808

67492BGARNISH, FRONT DOOR WINDOW UPPER BRACKET, LH

main67492-12290-22iAE10#..GT,GTZ,S; AE101..SJ199106-199305

BLACK,TRIM2#; BLACK,TRIM20,21,22

main67492-12300-22iAE10#..GT,GTZ,S; AE101..GTAPX; AE101..SJ199106-199305

main67492-12330iAE10#..HT199205

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67499-12030×4iAE10#..CP199106-199505

main90468-05014×2iAE10#..HT..(4FC,5F)199205-199705

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-1H050-C0iAE10#..F,X199205-199305

main67610-1H050-G0iAE10#..F,X199205-199305

main67610-1H051-C1iAE10#..F,X199305-199405

main67610-1H051-G0iAE10#..F,X199305-199405

main67610-1H052-C2iAE10#..F,X199405-199505

BLACK,TRIM2#

main67610-1H052-G1iAE10#..F,X199405-199505

SPRUCE,TRIM6#

main67610-1H053-C2iAE10#..F,X199505-199705

BLACK,TRIM2#

main67610-1H053-G1iAE10#..F,X199505-199705

SPRUCE,TRIM6#

main67610-1H060-C0iAE101..G; AE101..X199205-199305

main67610-1H061-C0iAE10#..F,X; AE100..CRE; AE100..MRN199412-199504

main67610-1H062-C0iAE101..G..(4FC,5F)199505-199705

BLACK,TRIM2#

main67610-1H080-C0iAE10#..F,X199205-199305

main67610-1H080-G0iAE10#..F,X199205-199305

main67610-1H081-C1iAE100..F; AE101..X199305-199405

main67610-1H081-G0iAE100..F; AE101..X199305-199405

main67610-1H090-C0iAE101..G; AE101..X199205-199305

main67610-1H091-C1iAE101..G; AE101..X199305-199405

main67610-1H470-C0iAE10#..F,X199205-199305

BLACK,TRIM2#

main67610-1H470-G0iAE10#..F,X199205-199305

SPRUCE,TRIM6#

main67610-1H471-C1iAE10#..F,X199305-199405

BLACK,TRIM2#

main67610-1H471-G0iAE10#..F,X199305-199405

SPRUCE,TRIM6#

main67610-1H480-C0iAE101..G; AE101..X199205-199305

main67610-1H481-C1iAE100..F199312-199404

main67610-1H550-C0iAE10#..F,X199205-199305

main67610-1H550-G0iAE10#..F,X199205-199305

main67610-1H551-C1iAE100..F; AE101..X199305-199405

main67610-1H551-G0iAE100..F; AE101..X199305-199405

main67610-1H560-C0iAE101..G; AE101..X199205-199305

main67610-1H561-C1iAE101..G; AE101..X199305-199405

main67610-1K390-C0iAE101199704-199808

main67610-1K400-C0iAE10#..F,X199705-199808

BLACK,TRIM2#

main67610-1K400-G0iAE10#..F,X199705-199808

SPURCE,TRIM6#

main67650-1E430-C0iAE100..S199106-199305

BLACK GRAY,TRIM2#

main67650-1E430-C1iAE10#..GT,S199305-199505

BLACK/GRAY,TRIM2#

main67650-1E440-C0iAE101..GT199106-199305

BLACK GRAY,TRIM2#

main67650-1E450-C0iAE100..S; AE101..SJ199106-199305

main67650-1E450-C1iAE101..SJ199106-199305

BLACK AQUA,TRIM21

main67650-1E450-C2iAE101..SJ199106-199305

BLACK LAVENDER,TRIM22

main67650-1E451-C3iAE10#..GT,S; AE101..SJ199305-199505

main67650-1E460-C0iAE101..GT; AE101..GTAPX; AE101..GTZ199106-199305

main67650-1E460-C1iAE101..GTAPX199106-199305

BLACK AQUA,TRIM21

main67650-1E460-C2iAE101..GTAPX199106-199305

BLACK LAVENDER,TRIM22

main67650-1E461-C3iAE101..GTAPX,GTZ199305-199505

BLACK/GRAY,TRIM2#

main67650-1E470-C0iAE101..GTAPX,GTZ199106-199305

main67650-1E471-C0iAE101..GTAPX,GTZ199305-199505

main67650-1E480-C1iAE101..GTZ199106-199305

main67650-1E481-C1iAE101..GTAPX,GTZ199305-199505

67601BCLIP(FOR FRONT DOOR TRIM BOARD)

main90467-07066-01×4iAE10#..F,G,GT,GTZ,S,X; AE101..GTAPX; AE101..SJ199106-199305

BLACK,TRIM2#; BLACK,TRIM2#,20,21,22; BLACK,TRIM20,21,22

main90467-07066-22×4iAE10#199309-199808

BLACK,TRIM2#

main90467-07066-G0×4iAE10#..F,X199205-199405

SPRUCE,TRIM6#

main90467-07066-P0×4iAE10#..F,X199405-199808

SHADOW GRAY,TRIM6#

main90467-09122×4iAE10#..CP199106-199505

main90467-09141×4iAE10#..HT199205-199808

67601GPLUG, HOLE(FOR FRONT DOOR TRIM BOARD)

main90950-01800-C0×4iAE10#..F,G,GT,GTZ,S,X; AE101..GTAPX; AE101..SJ199106-199305

BLACK,TRIM2#; BLACK,TRIM2#,20,21,22; BLACK,TRIM20,21,22

main90950-01800-G0×4iAE10#..F,X199205-199808

SPRUCE,TRIM6#

67601HRETAINER, DOOR TRIM, RH

main67771-12050×4iAE10#199106-199107

main67771-28020×2iAE10#..CP199305-199412

main67771-32140iAE10#..CP199106-199412

main90467-10161×5iAE10#..CP199412-199505

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-1K510-C0iAE100..S199106-199305

BLACK GRAY,TRIM2#

main67620-1K510-C1iAE10#..GT,S199305-199505

BLACK/GRAY,TRIM2#

main67620-1K520-C0iAE101..GT199106-199305

BLACK GRAY,TRIM2#

main67620-1K530-C0iAE100..S; AE101..SJ199106-199305

main67620-1K530-C1iAE101..SJ199106-199305

BLACK AQUA,TRIM21

main67620-1K530-C2iAE101..SJ199106-199305

BLACK LAVENDER,TRIM22

main67620-1K530-C3iAE10#..GT,S; AE101..SJ199305-199505

main67620-1K540-C0iAE101..GT; AE101..GTAPX; AE101..GTZ199106-199305

main67620-1K540-C1iAE101..GTAPX199106-199305

BLACK AQUA,TRIM21

main67620-1K540-C2iAE101..GTAPX199106-199305

BLACK LAVENDER,TRIM22

main67620-1K541-C3iAE101..GTAPX,GTZ199305-199505

BLACK/GRAY,TRIM2#

main67620-1K550-C0iAE101..GTAPX,GTZ199106-199505

main67620-1K560-C0iAE101..GTZ199106-199305

main67620-1K880-C0iAE10#..F,X199205-199405

main67620-1K880-G0iAE10#..F,X199205-199405

main67620-1K881-C1iAE10#..F,X199405-199704

BLACK,TRIM2#

main67620-1K881-C2iAE10#..F,X199704-199808

BLACK,TRIM2#

main67620-1K881-G1iAE10#..F,X199405-199704

SPRUCE,TRIM6#

main67620-1K881-G2iAE10#..F,X199704-199808

DK. SPRUCE,TRIM6#

main67620-1K890-C0iAE10#..F,X; AE100..CRE; AE100..MRN199412-199504

main67620-1K890-C1iAE101..6F; AE101..G..4FC; AE101..X199704-199808

main67620-1L020-C0iAE100..F; AE101..X199305-199405

main67620-1L020-G0iAE100..F; AE101..X199305-199405

main67620-1L030-C0iAE101..G; AE101..X199205-199405

main67620-1L490-C0iAE10#..F,X199205-199405

BLACK,TRIM2#

main67620-1L490-G0iAE10#..F,X199205-199405

SPRUCE,TRIM6#

main67620-1L500-C0iAE101..G; AE101..X199205-199405

main67620-1L580-C0iAE100..F; AE101..X199305-199405

main67620-1L580-G0iAE100..F; AE101..X199305-199405

main67620-1L590-C0iAE101..G; AE101..X199205-199405

67602ARETAINER, DOOR TRIM, LH

main67771-12050×5iAE10#..HT199401

main67771-28020×5iAE10#..F,X199205-199305

main67771-32140iAE10#..CP199106-199412

main90467-10161×5iAE10#..CP199412-199505

67637PLATE, FRONT DOOR TRIM

main67637-12030iAE10#..CP199106-199505

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68170-12300iAE10#..CP199106-199505

main68171-12240iAE10#..HT..(4FC,5F)199205

main68172-12160iAE101..6F199704

68220AWEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER LH

main68220-12210iAE10#..CP199106-199505

7401ARMREST & VISOR

→ Go to FIG 74-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9015940141

main90159-40141

9016840025

main90168-40025

9018904127

main90189-04127

17 parts on this diagram · 5 diagrams in section
