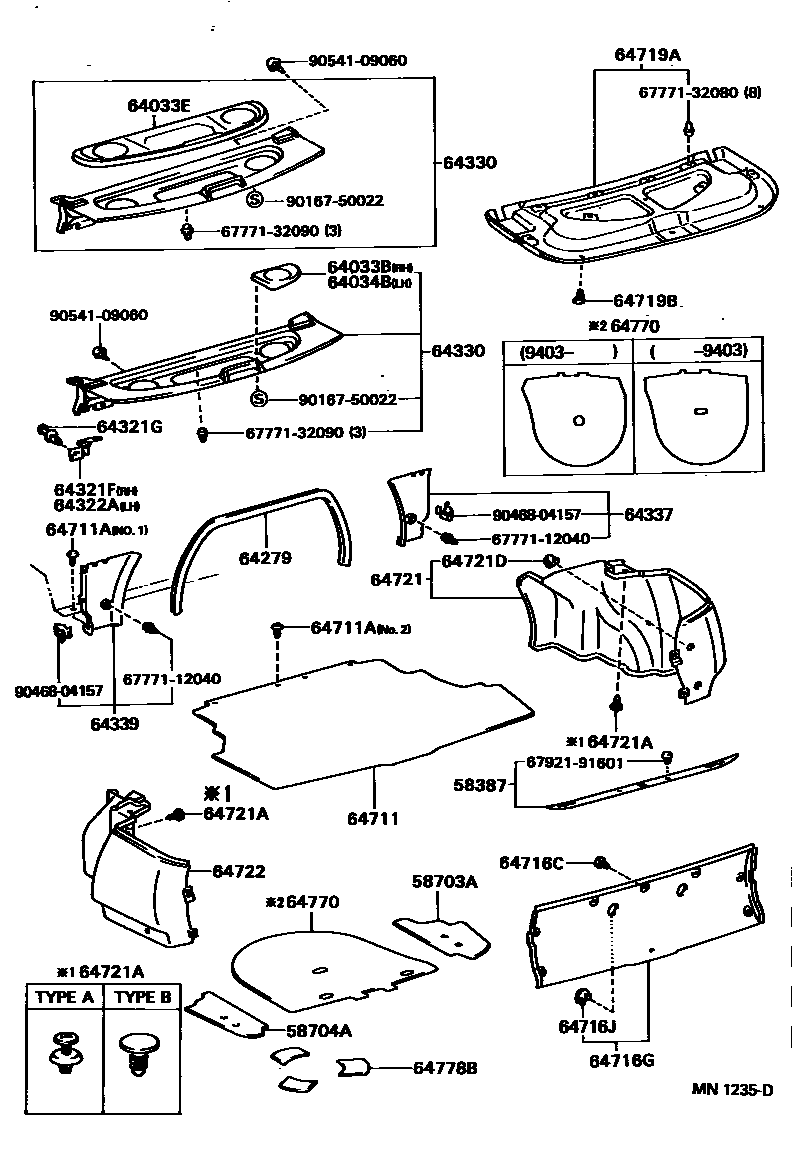

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

0001 1 0002 1

58387PLATE, REAR FLOOR FINISH

main58387-12020-22iAE10#..GT,GTAPX,GTZ,S; AE101..SJ199106-199305

BLACK,TRIM2#; BLACK,TRIM20,21,22

main58387-12030-C0iAE10#..F,X; AE101..G199205

BLACK,TRIM2#; BLACK,TRIM2#,6#

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-12040iAE10#..CP199106-199505

main58703-12050iAE10#..HT199205

58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH

main58704-12040iAE10#..CP199106-199505

main58704-12050iAE10#..HT199205

64033BGRILLE SUB-ASSY, REAR SPEAKER, RH

main64033-12130-22iAE10#..GT,GTAPX,GTZ,S; AE101..SJ199106-199305

BLACK,TRIM2#; BLACK,TRIM20,21,22

main64033-12170-C0iAE101..HT199205-199704

BLACK,TRIM2#

main64033-12170-C1iAE101199704

BLACK,TRIM2#

main64033-12170-G0iAE101..X199205-199704

SPRUCE,TRIM6#

main64033-12170-G1iAE101..X199704

DK.SPRUCE GRAY,TRIM6#

main64033-12200-C0iAE100..F; AE101..HT199205-199405

main64033-12200-G0iAE100..F; AE101..X199205-199405

64033EGRILLE SUB-ASSY, REAR SPEAKER

main64033-12140-C0iAE10#..GT,GTAPX,GTZ,S; AE101..SJ199106-199305

BLACK,TRIM2#; BLACK,TRIM20,21,22

main64033-12180-C0iAE101..HT..(4FC,5F)199305-199705

BLACK,TRIM2#

main64033-12180-G0iAE10#..F,X199205-199305

SPRUCE,TRIM6#

64034BGRILLE SUB-ASSY, REAR SPEAKER, LH

main64034-12070-22iAE10#..GT,GTAPX,GTZ,S; AE101..SJ199106-199305

BLACK,TRIM2#; BLACK,TRIM20,21,22

main64034-12100-C0iAE101..HT199205-199704

BLACK,TRIM2#

main64034-12100-C1iAE101199704

BLACK,TRIM2#

main64034-12100-G0iAE101..X199205-199704

SPRUCE,TRIM6#

main64034-12100-G1iAE101..X199704

DK.SPRUCE GRAY,TRIM6#

main64034-12120-C0iAE100..F; AE101..HT199205-199405

main64034-12120-G0iAE100..F; AE101..X199205-199405

64279PROTECTOR, ROOM PARTITION

main64279-12010-22iAE10#..CP199305-199505

BLACK,TRIM2#

64321FBRACKET, PACKAGE TRAY TRIM, RH

main64321-12160iAE10#..CP199106-199505

64321GCLIP(FOR PACKAGE TRIM SIDE)

main90467-07072-11×4iAE10#..GT,GTAPX,GTZ,S; AE101..SJ199205-199211

BLACK,TRIM2#&040 ,192 ,205 ,3K4 ,6M3 ,925; BLACK,TRIM20,21,22&040 ,192 ,205 ,3K4 ,6M3 ,925

main90467-07072-22×4iAE10#..GT,GTAPX,GTZ,S; AE101..SJ199211-199305

BLACK,TRIM2#&040 ,192 ,205 ,3K4 ,6M3 ,925; BLACK,TRIM20,21,22&040 ,192 ,205 ,3K4 ,6M3 ,925

64322ABRACKET, PACKAGE TRAY TRIM, LH

main64322-12120iAE10#..CP199106-199505

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-1A380-C0iAE100..F199405-199704

main64330-1A380-G0iAE100..F199405-199704

main64330-1A390-C0iAE100..F199305-199405

main64330-1A390-G0iAE100..F199305-199405

main64330-1A400-C0iAE10#..HT199205-199305

main64330-1A400-G0iAE100199704

main64330-1A410-C0iAE101199704

main64330-1A410-G0iAE101..X199305-199405

SPRUCE,TRIM6#

main64330-1A420-C0iAE101199704

main64330-1A420-G0iAE101..X199305-199405

main64330-1A450-C0iAE101..HT199405-199704

main64330-1A450-G0iAE101..X199305-199405

main64330-1A460-C0iAE101..HT199305-199405

main64330-1A460-G0iAE10#..F,X199205-199305

main64330-1A480-C0iAE101..HT..(4FC,5F)199405-199705

main64330-1A480-G0iAE101..X199304-199405

main64330-1A590-22iAE101..GT; AE101..GTAPX199106-199205

main64330-1A600-22iAE101..GT; AE101..GTAPX199106-199205

main64330-1A610-22iAE101..SJ199106-199305

BLACK,TRIM20,21,22

main64330-1A620-22iAE101..GTAPX199205-199505

BLACK,TRIM2#

main64330-1A630-22iAE10#..GT,S; AE101..SJ199106-199305

main64330-1A640-22iAE101..GTZ; AE101..SJ199106-199305

main64330-1A650-22iAE100..S; AE101..SJ199106-199305

main64330-1A660-22iAE101..SJ199106-199305

main64330-1A690-C0iAE10#..HT199205-199405

main64330-1A690-G0iAE10#..F,X199205-199405

main64330-1A700-C0iAE10#..HT199205-199405

main64330-1A700-G0iAE10#..F,X199205-199405

main64330-1A710-C0iAE10#..HT199205-199405

main64330-1A710-G0iAE10#..F,X199205-199405

64337GARNISH, PACKAGE TRAY TRIM, RH

main64337-12050-22iAE10#..GT,GTAPX,GTZ,S; AE101..SJ199106-199305

BLACK,TRIM2#; BLACK,TRIM20,21,22

64339GARNISH, PACKAGE TRAY TRIM, LH

main64339-12030-22iAE10#..GT,GTAPX,GTZ,S; AE101..SJ199106-199305

BLACK,TRIM2#; BLACK,TRIM20,21,22

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-12320-C1iAE10#..F,X; AE101..G199205

BLACK,TRIM2#; BLACK,TRIM2#,6#

main64711-12340-22iAE10#..CP199305-199505

BLACK,TRIM2#

64711ACLIP(FOR LUGGAGE COMPARTMENT FLOOR MAT)

main90467-06037-01×2iAE10#..GT,GTAPX,GTZ,S; AE101..SJ199106-199208

main90467-06037-C0×2iAE10#..GT,GTAPX,GTZ,S; AE101..SJ199208-199305

main90467-09066-22×4iAE10#..GT,GTAPX,GTZ,S; AE101..SJ199106-199201

main90467-09156-C0×4iAE10#..G,GT,GTZ,S; AE101..GTAPX; AE101..SJ199201-199305

BLACK,TRIM2#; BLACK,TRIM2#,20,21,22; BLACK,TRIM20,21,22

64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)

main90467-07072-11×8iAE10#..GT,GTAPX,GTZ,S; AE101..SJ199106-199205

BLACK,TRIM2#&040 ,205 ,3K4 ,6M3 ,748 ,925; BLACK,TRIM20,21,22&040 ,205 ,3K4 ,6M3 ,748 ,925

main90467-07072-22×8iAE10#..GT,GTAPX,GTZ,S; AE101..SJ199211-199305

BLACK,TRIM2#&040 ,192 ,205 ,3K4 ,6M3 ,925; BLACK,TRIM20,21,22&040 ,192 ,205 ,3K4 ,6M3 ,925

64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR

main64716-12190-22iAE10#..GT,GTZ,S; AE101..GTAPX; AE101..SJ199106-199305

BLACK,TRIM2#; BLACK,TRIM2#,20,21,22; BLACK,TRIM20,21,22

main64716-12220-C0iAE10#..F,X; AE101..G199205

BLACK,TRIM2#; BLACK,TRIM2#,6#

64716JPLUG, HOLE(FOR LUGGAGE COMPARTMENT REAR COVER)

main90950-01436-01×2iAE10#..CP199305-199505

BLACK,TRIM2#

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-12030-22iAE10#..GT,GTAPX,GTZ,S; AE101..SJ199106-199305

BLACK,TRIM2#; BLACK,TRIM20,21,22

main64719-12040-C0iAE10#..F,X; AE101..G199205

BLACK,TRIM2#; BLACK,TRIM2#,6#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-07072-11×5iAE10#..GT,GTAPX,GTZ,S; AE101..SJ199106-199203

BLACK,TRIM2#&040 ,205 ,3K4 ,6M3 ,748 ,925; BLACK,TRIM20,21,22&040 ,205 ,3K4 ,6M3 ,748 ,925

main90467-07138×13iAE10#..HT199305

main90467-07146×5iAE10#..CP199203-199212

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-12120-C0iAE10#..F,X; AE101..G199205

BLACK,TRIM2#; BLACK,TRIM2#,6#

main64721-12140-22iAE10#..GT,GTAPX,GTZ,S; AE101..SJ199106-199305

BLACK,TRIM2#; BLACK,TRIM20,21,22

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-05096-22×4iAE10#..CP199308-199505

main90467-05105-C0iAE10#..GT,GTAPX,GTZ,S; AE101..SJ199106-199305

BLACK,TRIM2#; BLACK,TRIM20,21,22

main90467-06146×4iAE10#..CP199106-199308

main90467-07146×11iAE10#..HT199205

64721DPLUG, HOLE(FOR LUGGAGE COMPARTMENT INNER COVER)

main90950-01436-01×4iAE10#..GT,GTAPX,GTZ,S; AE101..SJ199106-199305

BLACK,TRIM2#; BLACK,TRIM20,21,22

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-12170-22iAE10#..GT,GTAPX,GTZ,S; AE101..SJ199106-199305

BLACK,TRIM2#; BLACK,TRIM20,21,22

main64722-12180-C0iAE10#..F,X; AE101..G199205

BLACK,TRIM2#; BLACK,TRIM2#,6#

64770COVER ASSY, SPARE WHEEL

main64770-12160iAE10#199106-199403

main64770-12161iAE10#..4FC,5F199403

main64770-12170iAE10#199106-199403

main64770-12171iAE10#199403

64778BPROTECTOR, SPARE WHEEL

main64778-12030×3iAE10#..CP199106-199505

6777112040WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-12040

6777132080WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-32080

6777132090WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-32090

6792191601RETAINER, FRONT DOOR SCUFF PLATE

main67921-91601

9016750022

main90167-50022

9046804157

main90468-04157

9054109060

main90541-09060

33 parts on this diagram · 2 diagrams in section
