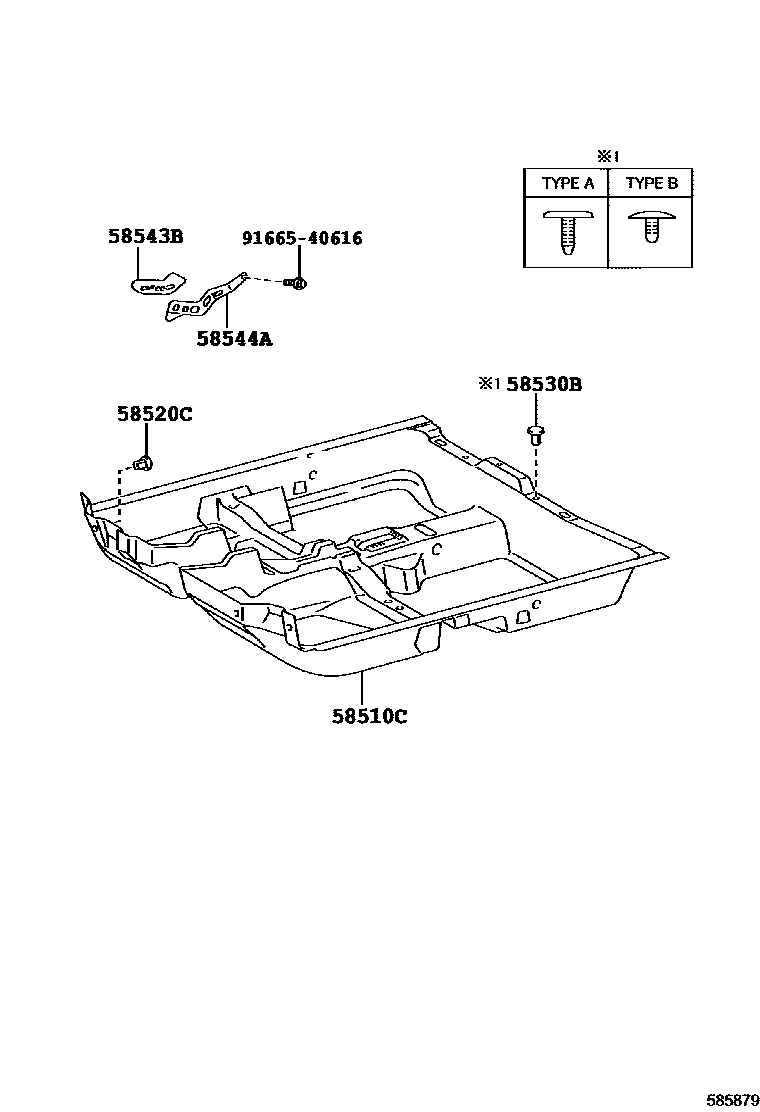

MAT & CARPET

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-1E230-22iAE10#..GT,GTAPX,GTZ,S; AE101..SJ199106-199111

BLACK,TRIM2#; BLACK,TRIM20,21,22

main58510-1E231-22iAE10#..CP199305-199401

BLACK,TRIM2#

main58510-1E232-22iAE10#..CP199401-199505

BLACK,TRIM2#

main58510-1E240-22iAE10#..GT,GTZ,S; AE101..GTAPX; AE101..SJ199106-199111

main58510-1E241-22iAE10#..GT,GTAPX,GTZ,S; AE101..SJ199111-199305

main58510-1E242-22iAE10#..CP199401-199505

main58510-1E280-C0iAE10#..HT199205-199312

BLACK,TRIM2#

main58510-1E280-G0iAE10#..F,X199205-199312

SPRUCE,TRIM6#

main58510-1E281-C0iAE10#..HT199312-199505

BLACK,TRIM2#

main58510-1E281-G0iAE10#..F,X199312-199505

SPRUCE,TRIM6#

main58510-1E282-C0iAE10#199505

BLACK,TRIM2#

main58510-1E282-G0iAE10#..F,X199505

SPRUCE,TRIM6#

main58510-1E290-C0iAE10#..HT199205-199312

main58510-1E290-G0iAE10#..F,X199205-199312

main58510-1E291-C0iAE10#..HT199312-199505

main58510-1E291-G0iAE10#..F,X199312-199505

main58510-1E292-C0iAE101..6F199704

main58510-1E292-G0iAE10#..F,X199505

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-09068-11×2iAE10#..G,GT,GTZ,S; AE101..GTAPX; AE101..SJ199106-199209

BLACK,TRIM2#; BLACK,TRIM2#,20,21,22; BLACK,TRIM20,21,22

main90467-09068-22×2iAE10#..G,GT,GTZ,S; AE101..GTAPX; AE101..SJ199209-199305

BLACK,TRIM2#; BLACK,TRIM2#,20,21,22; BLACK,TRIM20,21,22

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-06023-01iAE10#..G,GT,GTZ,S; AE101..GTAPX; AE101..SJ199106-199305

main90467-06023-C0iAE10#..F,X; AE101..G199704

main90467-07049-01×2iAE10#..GT,GTZ,S; AE101..GTAPX; AE101..SJ199106-199208

main90467-07049-C0×3iAE10#..F,X; AE101..G199208-199403

58543BBRACKET, FLOOR CARPET, RH

main58543-12010iAE10#199106-199111

main58543-12011iAE10#199111-199401

58544ABRACKET, FLOOR CARPET, LH

main58544-12020iAE10#199106-199111

main58544-12021iAE10#199111-199401

9166540616

main91665-40616

6 parts on this diagram · 1 diagram in section
