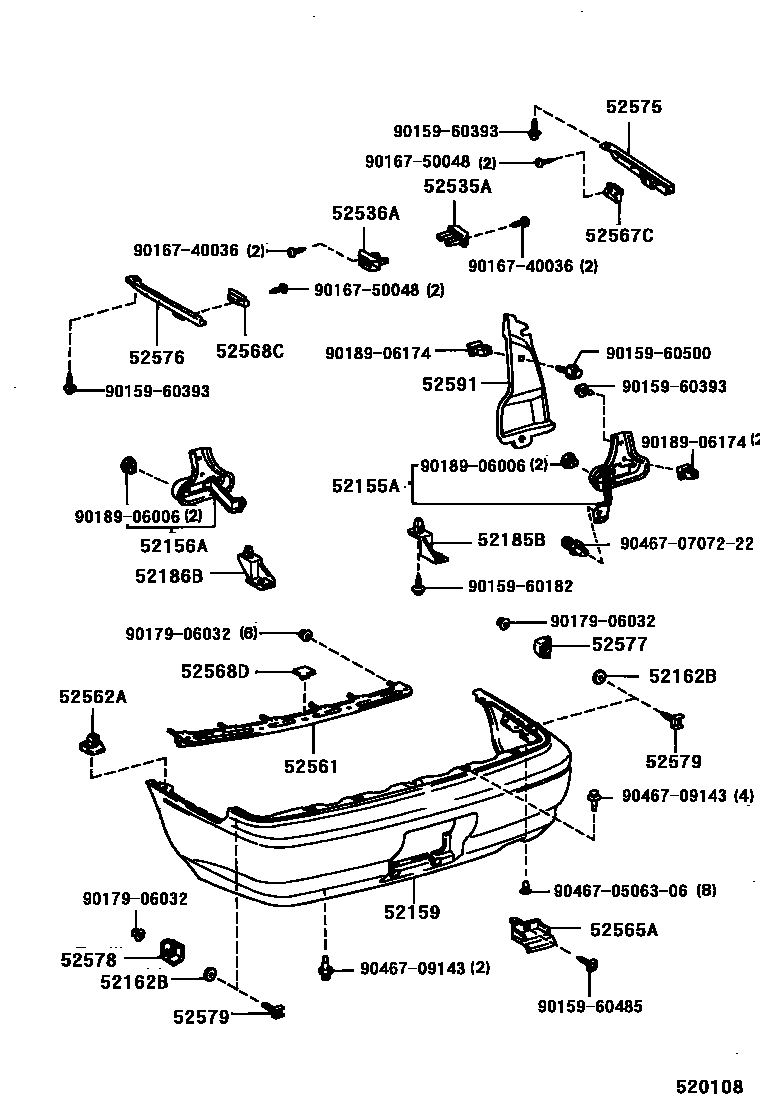

REAR BUMPER & BUMPER STAY
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52159COVER, REAR BUMPER
BLACK M,205
RED MICA M,3K4
GRAYISH GREEN M,6M3
SUPER WHITE 2,040
LAVENDER MICA M,925
LIGHT AQUA M.OPAL,748
GT-APEX LIMITED OR SJ LIMITED,SILVER MICA M,192
SUPER WHITE 2,040
DARK BLUEISH GRAY M,183
SILVER MICA M,192
SILVER PEARL M,1A7
SILVER ME,199
RED MICA M,3K4
GRAYISH GREEN M,6M3
MD.GRAISHGREEN MC.GR,6N1
YELLOW GREEN M.M GR,6N6
MD.GREEN M.M,6P0
DK.GREEN M.M.,6P2
DEEP TURQUOISE M,747
TURQUOISE M.M.,756
DARK BLUE MICA M,8G5
LT PURPLISH BLUE M.M,8K1
SUPER WHITE 2,040
DARK BLUEISH GRAY M,183
SILVER MICA M,192
RED MICA M,3K4
GRAYISH GRREN M,6M3
MD.GRAISHGREEN MC.GR,6N1
YELLOW GREEN M.M GR,6N6
DEEP TURQUOISE M,747
DARK BLUE MICA M,8G5
LT PURPLISH BLUE M.M,8K1
SUPER WHITE 2,040
SILVER MICA M,192
BLACK ME,205
RED MICA M,3K4
GRAYISH GREEN M,6M3
FOREST SHADE TONNING,20W
SPLASH BLUE TONNING,23V
52162BPLATE, REAR BUMPER, NO.1
52185BBRACKET, REAR BUMPER SIDE MOUNTING, RH
52186BBRACKET, REAR BUMPER SIDE MOUNTING, LH
52535ARETAINER, REAR BUMPER SIDE, RH
52536ARETAINER, REAR BUMPER SIDE, LH
52561RETAINER, REAR BUMPER, UPPER CENTER
52562ARETAINER, REAR BUMPER FILLER, NO.2
52565ARETAINER, REAR BUMPER, LOWER
52567CRETAINER, REAR BUMPER LOWER SIDE, RH
52568CRETAINER, REAR BUMPER LOWER SIDE, LH
52568DRETAINER, REAR BUMPER, UPPER NO.2
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52577RETAINER, REAR BUMPER SIDE, NO.2 RH
52578RETAINER, REAR BUMPER SIDE, NO.2 LH
52579RETAINER, REAR BUMPER SIDE, NO.3
52591SEAL, REAR BUMPER SIDE, RH
9015960182
main90159-60182
9015960393
main90159-60393
9015960485
main90159-60485
9015960500
main90159-60500
9016740036
main90167-40036
9016750048
main90167-50048
9017906032
main90179-06032
9018906006
main90189-06006
9018906174
main90189-06174
904670506306
main90467-0506306
904670707222
main90467-0707222
9046709143
main90467-09143
32 parts on this diagram · 2 diagrams in section
