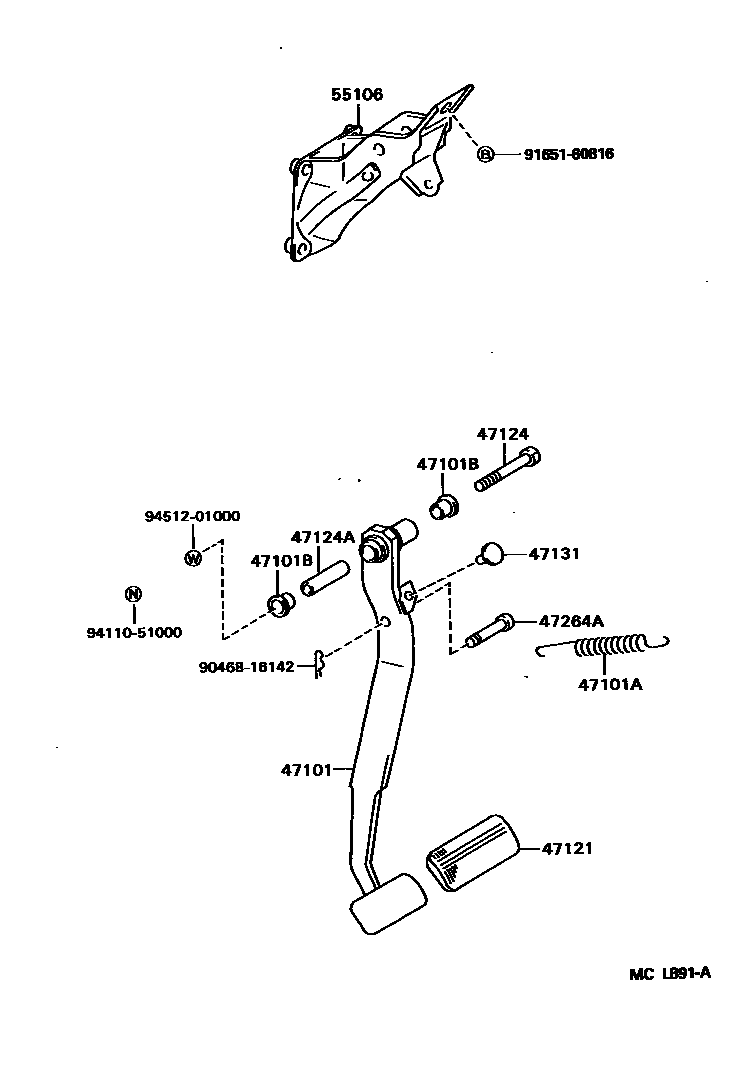

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-12480iAE10#..4FC199106-199505

main47101-12490iAE10#..5F199106-199505

main47101-12510iAE10#..5F199505-199704

main47101-12520iAE10#..4FC199505-199704

main47101-12530iAE10#..MTM199704

main47101-12540iAE10#..4FC199704

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14037iAE10#199106

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015×2iAE10#199106

47121PAD, BRAKE PEDAL

main31321-12040iAE10#..MTM199106

main47121-12020iAE10#..4FC199106

47124SHAFT, BRAKE PEDAL

main90101-10015iAE10#199106-199704

main90101-10039iAE10#199704

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iAE10#199106

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iAE10#199106

47264APIN(FOR PUSH ROD)

main47148-12020iAE10#199505-199704

WAVE WASHER 1 PIECES

main47148-12040iAE10#199212-199704

WAVE WASHER 3 PIECES

main47148-12050iAE10#199212-199505

WAVE WASHER 2 PIECES

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-12600iAE10#199106-199505

main55106-12620iAE10#199505-199704

main55106-12640iAE10#199704

9046816142

main90468-16142

9165160816

main91651-60816

9411051000

main94110-51000

9451201000

main94512-01000

13 parts on this diagram · 1 diagram in section
