RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1������ 0003 1CD & DVD�����(DOP)

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

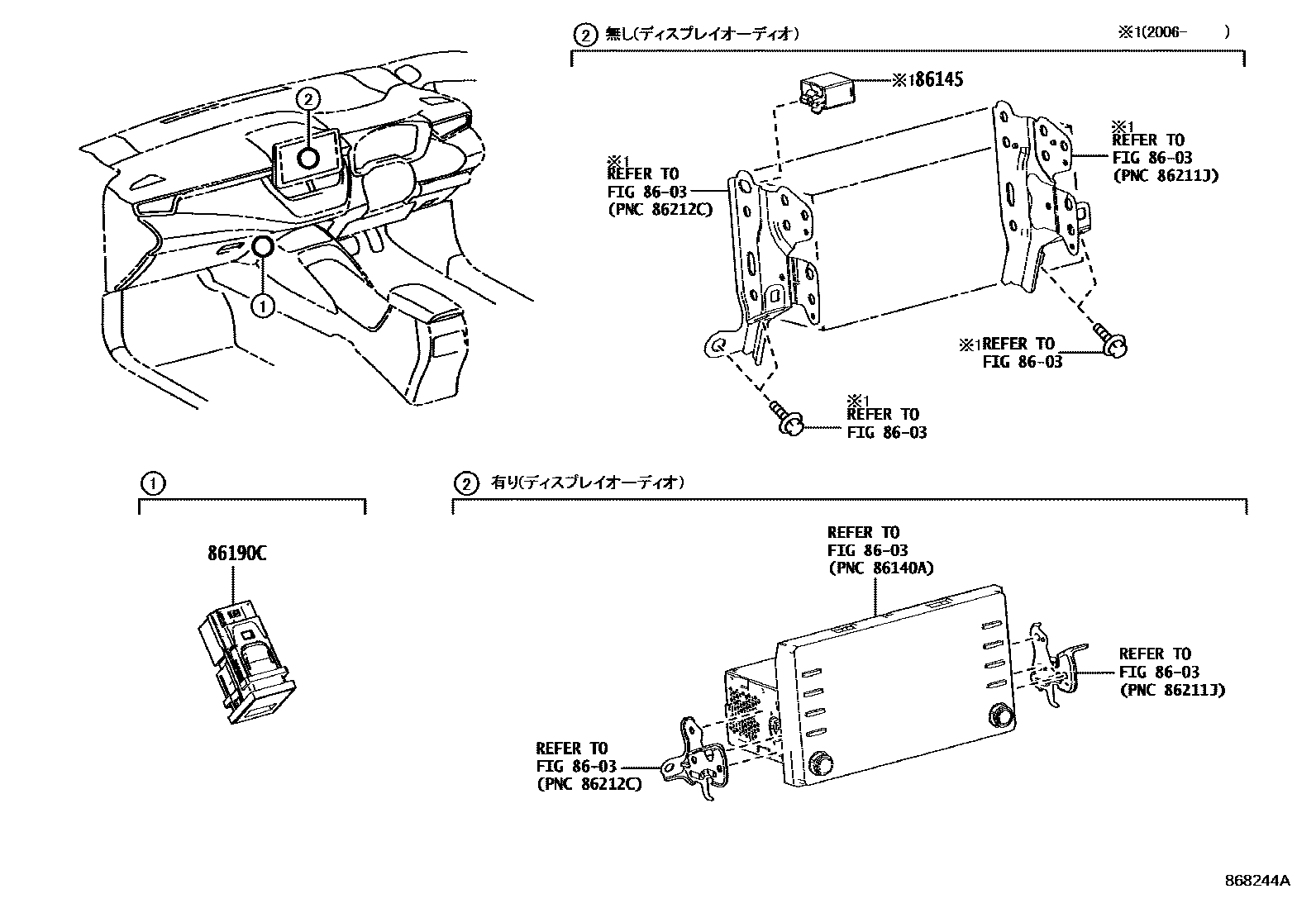

86145CONNECTOR, ANTENNA MALE

main86145-52010iMZEA17..X202210-202504

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-12070iMZEA12,NRE210,ZRE212,ZWE211,214201908

main86190-12080iMZEA17..G,WB202210-202504

3 parts on this diagram · 3 diagrams in section
