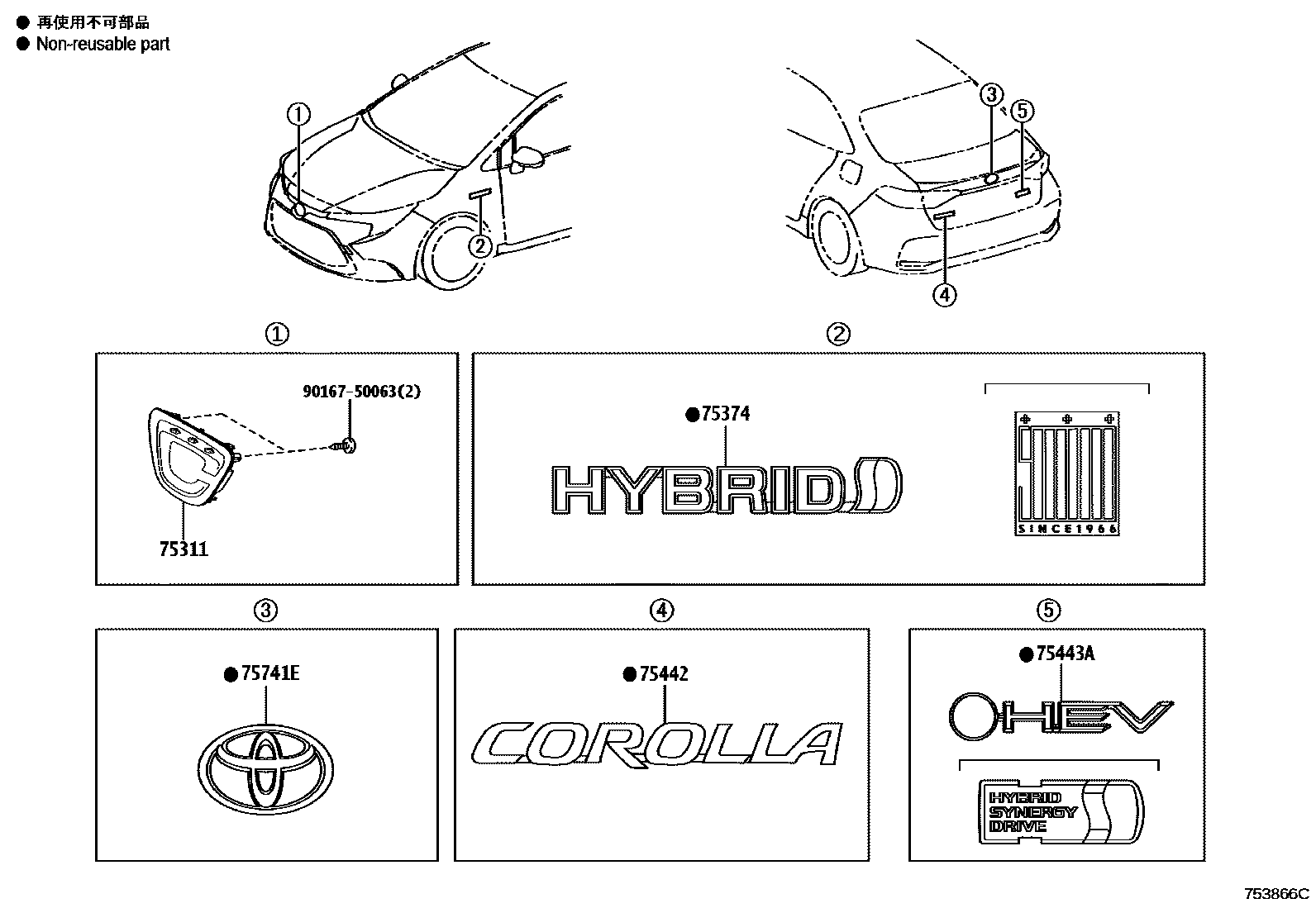

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

0001 1 0002 1

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main53141-12320iMZEA12,NRE210,ZRE212201908

main53141-12330iZWE211,214201908

75374EMBLEM, SIDE PANEL

main75374-12110iZWE211,214201908-202010

main75374-12120iZWE211,214201908-202010

main75374-12130-A0×2iZWE211,214..HBDWB202111

main75374-12130-B0×2iZWE211,214..SED..HBDWB202111

main75374-12130-C0×2iZWE211,214..HBDWB202111

main75374-12130-E0×2iZWE211,214..WG..HBDWB202111

75442PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2

main75442-12C30iNRE210,ZRE212,ZWE211,214..SED201908

75443PLATE, BACK DOOR NAME, NO.3

main75440-16010iZWE215,219..WG202404

main75443-12B50iZWE215,219..WG202210-202404

75443APLATE, LUGGAGE COMPARTMENT DOOR, NO.3

main75440-12010iZWE215,219..SED202404

main75443-12B40iZWE215,219..SED202210-202404

75741EEMBLEM, SYMBOL

main75403-12040iZWE21#..WG201909-202006

main75403-12070iZWE215,219..SED202210-202504

main75403-28020iZWE215,219..WG202210-202504

main90975-02064iMZEA17..WG202210-202504

main90975-02069iMZEA17..SED202210-202504

main90975-02072iNRE210,ZRE212..WG201909-202006

9016750063

main90167-50063

7 parts on this diagram · 2 diagrams in section
