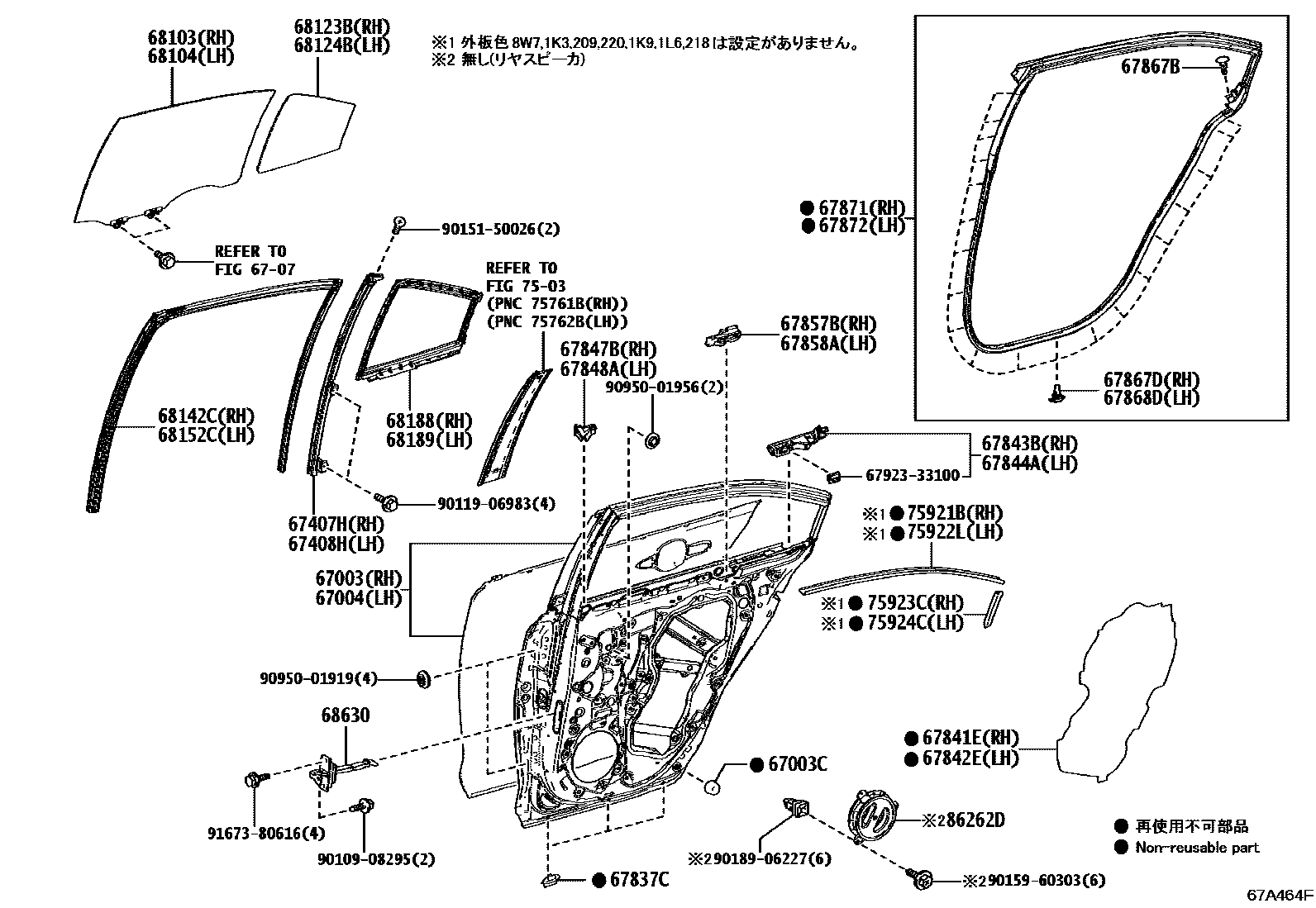

REAR DOOR PANEL & GLASS

0001 1������� 0002 1������� 0003 1������

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-12C10iNRE210,ZRE212,ZWE211,214..SED201908

main67003-12C20iMZEA12,NRE210,ZRE212,ZWE211,214..WG201909

67003CCUSHION, REAR DOOR PANEL

main90541-09124×2iMZEA17202210-202504

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-12C10iNRE210,ZRE212,ZWE211,214..SED201908

main67004-12C20iMZEA12,NRE210,ZRE212,ZWE211,214..WG201909

6707REAR DOOR WINDOW REGULATOR & HINGE

→ Go to FIG 67-07

67407HBAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, RH

main67407-12380iNRE210,ZRE212,ZWE211,214..SED201908

main67407-12390iMZEA17..WG202210-202504

67408HBAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, LH

main67408-12380iZWE215,219..SED202210

main67408-12390iMZEA17..WG202210-202504

67837CSEAL, REAR DOOR DUST PROOF

main67837-47060iMZEA12,NRE210,ZRE212,ZWE211,214201908

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-12510iMZEA17202210-202504

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-12320iMZEA12,NRE210,ZRE212,ZWE211,214201908

67843BCOVER, REAR DOOR SERVICE HOLE, NO.2 RH

main67843-12040iNRE210,ZRE212,ZWE211,214..SED201908

main67843-12050iMZEA17..WG202210-202504

67844ACOVER, REAR DOOR SERVICE HOLE, NO.2 LH

main67844-12040iNRE210,ZRE212,ZWE211,214..SED201908

main67844-12050iMZEA12,NRE210,ZRE212,ZWE211,214..WG201909

67847BSEAL, REAR DOOR VENT, RH NO.1

main67847-12030iMZEA12,NRE210,ZRE212,ZWE211,214201908

67848ASEAL, REAR DOOR VENT, LH NO.1

main67848-12030iMZEA12,NRE210,ZRE212,ZWE211,214201908

67857BPROTECTOR, REAR DOOR PANEL, RH

main67857-12180iMZEA17202210-202504

67858APROTECTOR, REAR DOOR PANEL, LH

main67858-12130iMZEA17202210-202504

67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)

main67868-30030×2iMZEA12,NRE210,ZRE212,ZWE211,214201908

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150×20iMZEA17202210-202504

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150×20iMZEA12,NRE210,ZRE212,ZWE211,214201908

67871WEATHERSTRIP, REAR DOOR, RH

main67871-12600iNRE210,ZRE212,ZWE211,214..SED201908

main67871-12610iMZEA17..WG202210-202504

67872WEATHERSTRIP, REAR DOOR, LH

main67872-12600iNRE210,ZRE212,ZWE211,214..SED201908

main67872-12610iMZEA12,NRE210,ZRE212,ZWE211,214..WG201909

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-12A20iMZEA17..SED..X202210-202504

main68103-12A30supersedes 68103-12A20iNRE210,ZRE212,ZWE211,214..SED..(HBDS,HBDWB,S,WB)201908-202107

main68103-12A40iZWE215,219..WG..HBDX202210

main68103-12A50supersedes 68103-12A40iMZEA12,NRE210,ZRE212,ZWE211,214..WG..(G,HBDS,HBDWB,S,WB)201909

main68103-12A90iZWE215,219..SED..(ACT,HBDG,HBDWB)202210

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-12A30iMZEA17..SED..X202210-202504

main68104-12A40supersedes 68104-12A30iNRE210,ZRE212,ZWE211,214..SED..(HBDS,HBDWB,S,WB)201908-202107

main68104-12A50iMZEA17..WG..X202210-202504

main68104-12A60supersedes 68104-12A50iZWE215,219..WG..(ACT,HBDG,HBDWB)202210

main68104-12B00iNRE210,ZRE212,ZWE211,214..SED..(HBDS,HBDWB,S,WB); ZRE212,ZWE211,214..SED..(GX,HBDGX)202107

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-12A50iZWE215,219..SED..HBDX202210

main68123-12A60supersedes 68123-12A50iNRE210,ZRE212,ZWE211,214..SED..(HBDS,HBDWB,S,WB)201908-202107

main68123-12A70iZWE215,219..WG..HBDX202210

main68123-12A80supersedes 68123-12A70iMZEA12,NRE210,ZRE212,ZWE211,214..WG..(G,HBDS,HBDWB,S,WB)201909

main68123-12B20iNRE210,ZRE212,ZWE211,214..SED..(HBDS,HBDWB,S,WB); ZRE212,ZWE211,214..SED..(GX,HBDGX)202107

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-12A50iZWE215,219..SED..HBDX202210

main68124-12A60supersedes 68124-12A50iNRE210,ZRE212,ZWE211,214..SED..(HBDS,HBDWB,S,WB)201908-202107

main68124-12A70iMZEA17..WG..X202210-202504

main68124-12A80supersedes 68124-12A70iMZEA12,NRE210,ZRE212,ZWE211,214..WG..(G,HBDS,HBDWB,S,WB)201909

main68124-12B20iNRE210,ZRE212,ZWE211,214..SED..(HBDS,HBDWB,S,WB); ZRE212,ZWE211,214..SED..(GX,HBDGX)202107

68142CRUN, REAR DOOR GLASS, RH

main68142-12360iNRE210,ZRE212,ZWE211,214..SED201908

main68142-12370iZWE215,219..WG202210

68152CRUN, REAR DOOR GLASS, LH

main68152-12270iNRE210,ZRE212,ZWE211,214..SED201908

main68152-12280iMZEA12,NRE210,ZRE212,ZWE211,214..WG201909

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-12390iZWE215,219..SED202210

main68188-12400iZWE215,219..WG202210

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-12390iZWE215,219..SED202210

main68189-12400iZWE215,219..WG202210

68630CHECK ASSY, REAR DOOR

main68630-12220×2iMZEA12,NRE210,ZRE212,ZWE211,214201908

7503SIDE MOULDING

→ Go to FIG 75-03

75921BTAPE, BLACK OUT, NO.1 RH

main75979-12060iZRE212,ZWE211,214..SED..(GX,HBDGX)201908-202010

main75979-12070iZRE212,ZWE211,214..WG..(GX,HBDGX)201909-202010

75922LTAPE, BLACK OUT, NO.1 LH

main75989-12030iMZEA17,ZWE215,219..SED..(G,HBDG,HBDWB,WB)202210-202404

main75989-12040iZRE212,ZWE211,214..WG..(GX,HBDGX)201909-202010

75923CTAPE, BLACK OUT, NO.2 RH

main75987-12480iMZEA17,ZWE215,219..SED..(G,HBDG,HBDWB,WB)202210-202404

main75987-12490iMZEA12,NRE210,ZRE212,ZWE211,214..WG..(G,HBDS,HBDWB,S,WB)201909

75924CTAPE, BLACK OUT, NO.2 LH

main75988-12350iMZEA17,ZWE215,219..SED..(G,HBDG,HBDWB,WB)202210-202404

main75988-12360iMZEA12,NRE210,ZRE212,ZWE211,214..WG..(G,HBDS,HBDWB,S,WB)201909

86262DCOVER, REAR DOOR SPEAKER

main86262-12030×2iZWE215,219..HBDX202210

6792333100CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-33100

9010908295

main90109-08295

9011906983

main90119-06983

9015150026

main90151-50026

9015960303

main90159-60303

9018906227

main90189-06227

9095001919

main90950-01919

9095001956

main90950-01956

9167380616

main91673-80616

44 parts on this diagram · 3 diagrams in section
