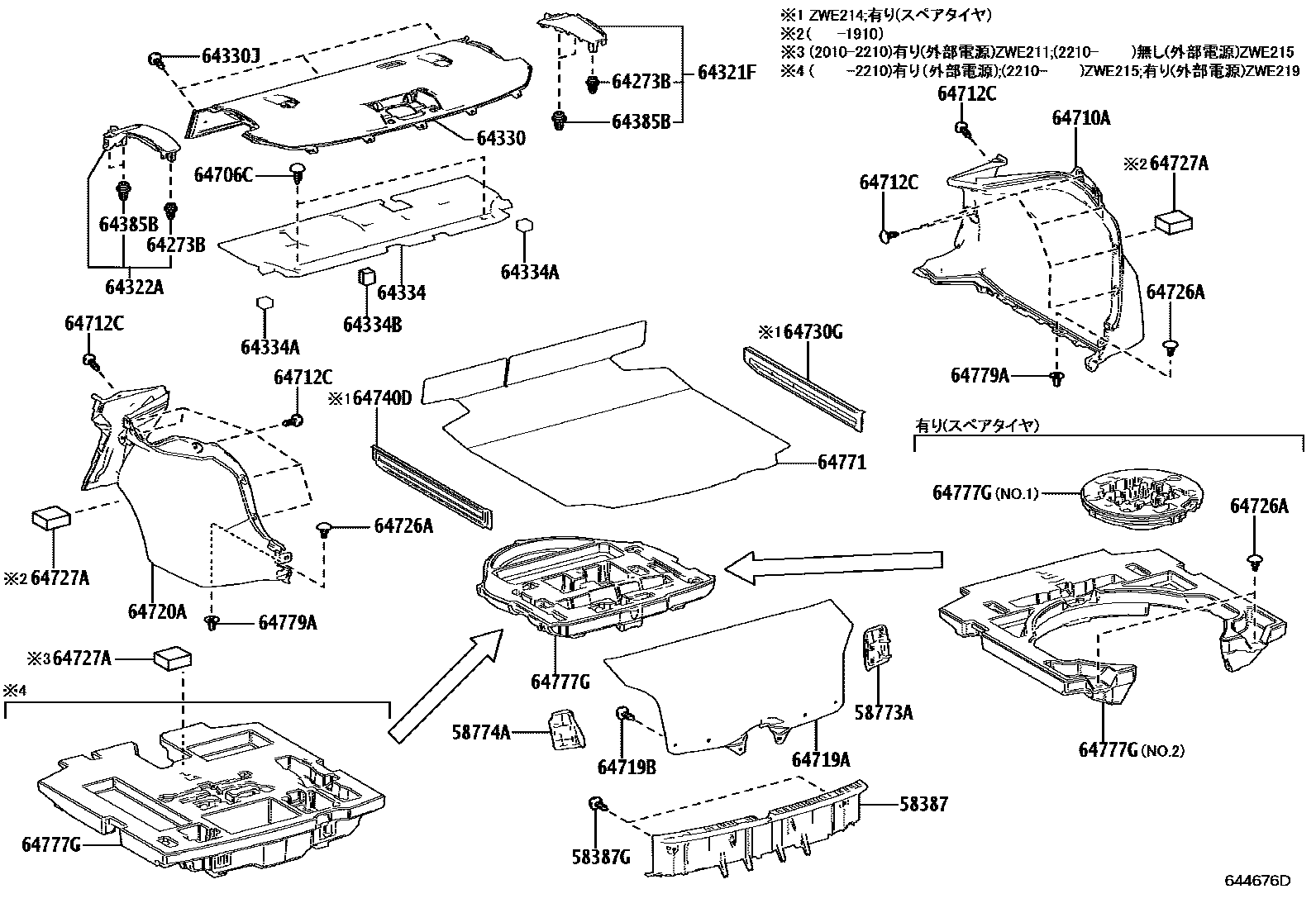

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

0001 1���������� 0002 1����������

58387PLATE, REAR FLOOR FINISH

main58387-12140-C0iMZEA17..SED202210-202504

BLACK,TRIM2#

58387GCLIP(FOR REAR FLOOR FINISH PLATE)

main90467-08186-C3×2iMZEA17..SED202210-202504

BLACK,TRIM2#

58773ACOVER, LUGGAGE COMPARTMENT SIDE, RH

main58773-12140-C0iMZEA17..SED202210-202504

BLACK,TRIM2#

58774ACOVER, LUGGAGE COMPARTMENT SIDE, LH

main58774-12130-C0iNRE210,ZRE212,ZWE211,214..SED201908

BLACK,TRIM2#

64273BCLIP

main90467-09240×2iNRE210,ZRE212,ZWE211,214..SED201908

64321FBRACKET, PACKAGE TRAY TRIM, RH

main64301-12290-C0iNRE210,ZRE212,ZWE211,214..SED201908

BLACK,TRIM2#

64322ABRACKET, PACKAGE TRAY TRIM, LH

main64302-12290-C0iNRE210,ZRE212,ZWE211,214..SED201908

BLACK,TRIM2#

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-12D00-C0iZRE212,ZWE211,214..SED..(GX,HBDGX,HBDS,S)201908

BLACK,TRIM2#

main64330-12D10-C0iNRE210,ZRE212,ZWE211,214..SED..(HBDWB,WB)201908

BLACK,TRIM2#

main64330-12D20-C0iZRE212,ZWE211,214..SED..(GX,HBDGX,HBDS,S)201908-202010

main64330-12D30-C0iNRE210,ZRE212,ZWE211,214..SED..(HBDWB,WB)202010

64330JCLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-08186-C3×3iNRE210,ZRE212,ZWE211,214..SED201908

BLACK,TRIM2#

64334PAD, PACKAGE TRAY TRIM SILENCER

main64334-12420iNRE210,ZRE212,ZWE211,214..SED201908

64334APAD, PACKAGE TRAY TRIM

main64334-12450×2iNRE210,ZRE212,ZWE211,214..SED201908

64334BPAD, PACKAGE TRAY TRIM, NO.2

main64334-12460iNRE210,ZRE212,ZWE211,214..SED201908

64385BCLIP

main90467-10161×4iNRE210,ZRE212,ZWE211,214..SED201908

64706CCLIP

main90467-06020-C0×2iNRE210,ZRE212,ZWE211,214..SED201908

BLACK

64710ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, RH

main64710-12090-C0iZWE215,219..SED..(HBDG,HBDX)202210

BLACK,TRIM2#

main64710-12100-C0supersedes 64710-12090-C0iZRE212,ZWE211..SED..(GX,HBDGX,HBDS,S); ZWE214..SED..(HBDGX,HBDS)201908

main64710-12130-C0iZWE215,219..SED..(ACT,HBDWB)202210

BLACK,TRIM2#

main64710-12140-C0supersedes 64710-12130-C0iNRE210,ZRE212,ZWE211..SED..(HBDWB,WB); ZWE214..SED..HBDWB201908

64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)

main90467-08186-C3×12iMZEA17..SED202210-202504

BLACK,TRIM2#

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-12210-C0iZWE215,219..SED202210

BLACK,TRIM2#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-08186-C3×14iNRE210,ZRE212,ZWE211,214..SED201908

BLACK,TRIM2#

64720ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, LH

main64720-12130-C0supersedes 64720-12100-C0iZRE212,ZWE211..SED..(GX,HBDGX,HBDS,S); ZWE214..SED..(HBDGX,HBDS)201908

main64720-12150-C0supersedes 64720-12140-C0iNRE210,ZRE212,ZWE211..SED..(HBDWB,WB); ZWE214..SED..HBDWB201908

main64720-12080-C0iZWE211,214..SED..HBDWB202010

main64720-12180-C0iZWE211,214..SED..(HBDGX,HBDS)202010

main64720-12190-C0supersedes 64720-12100-C0iZWE215,219..SED..(HBDG,HBDX); ZWE219..SED..(HBDG,HBDX)202210

main64720-12200-C0iZWE215,219..SED..(ACT,HBDWB); ZWE219..SED..(ACT,HBDWB)202210

64726ACLIP, LUGGAGE TRIM, REAR

main64726-26010-C2×2iNRE210,ZRE212,ZWE211,214..SED201908

BLACK,TRIM2#

main64726-10020-C2×2iZWE219..SED202210

64727APAD, LUGGAGE COMPARTMENT TRIM, INNER

main64727-12080×2iNRE210,ZRE212,ZWE21#..SED201908-201910

main64727-12130iZWE215..SED202210

main64727-12100iZWE211..SED202010

64730GBOARD, DECK TRIM SIDE, RH

main64743-12040-C0iNRE210,ZRE212,ZWE211..SED; ZWE214..SED201908

64740DBOARD, DECK TRIM SIDE, LH

main64744-12040-C0iNRE210,ZRE212,ZWE211..SED; ZWE214..SED201908

64771COVER, SPARE WHEEL

main64771-12400-C0supersedes 64771-12390-C0iZRE212,ZWE211..SED..(GX,HBDGX,HBDS,S); ZWE214..SED..(HBDGX,HBDS)201908

main64771-12420-C0supersedes 64771-12410-C0iNRE210,ZRE212,ZWE211..SED..(HBDWB,WB); ZWE214..SED..HBDWB201908

main64771-12460-C0iZWE219..SED202210

64777GCUSHION, SPARE WHEEL

main64777-12250iZWE214..SED201908

main64777-12410iZWE215..SED; ZWE219..SED202210

main64777-12260supersedes 64777-12240iZWE219..SED202210

main64777-12310supersedes 64777-12240iMZEA17..SED202210-202504

main64777-12340iZWE211,214..SED202010

main64777-12480supersedes 64777-12240iZWE219..SED202210

64779ASTOPPER, SPARE WHEEL COVER

main64779-26010×2iMZEA17..SED202210-202504

26 parts on this diagram · 2 diagrams in section
