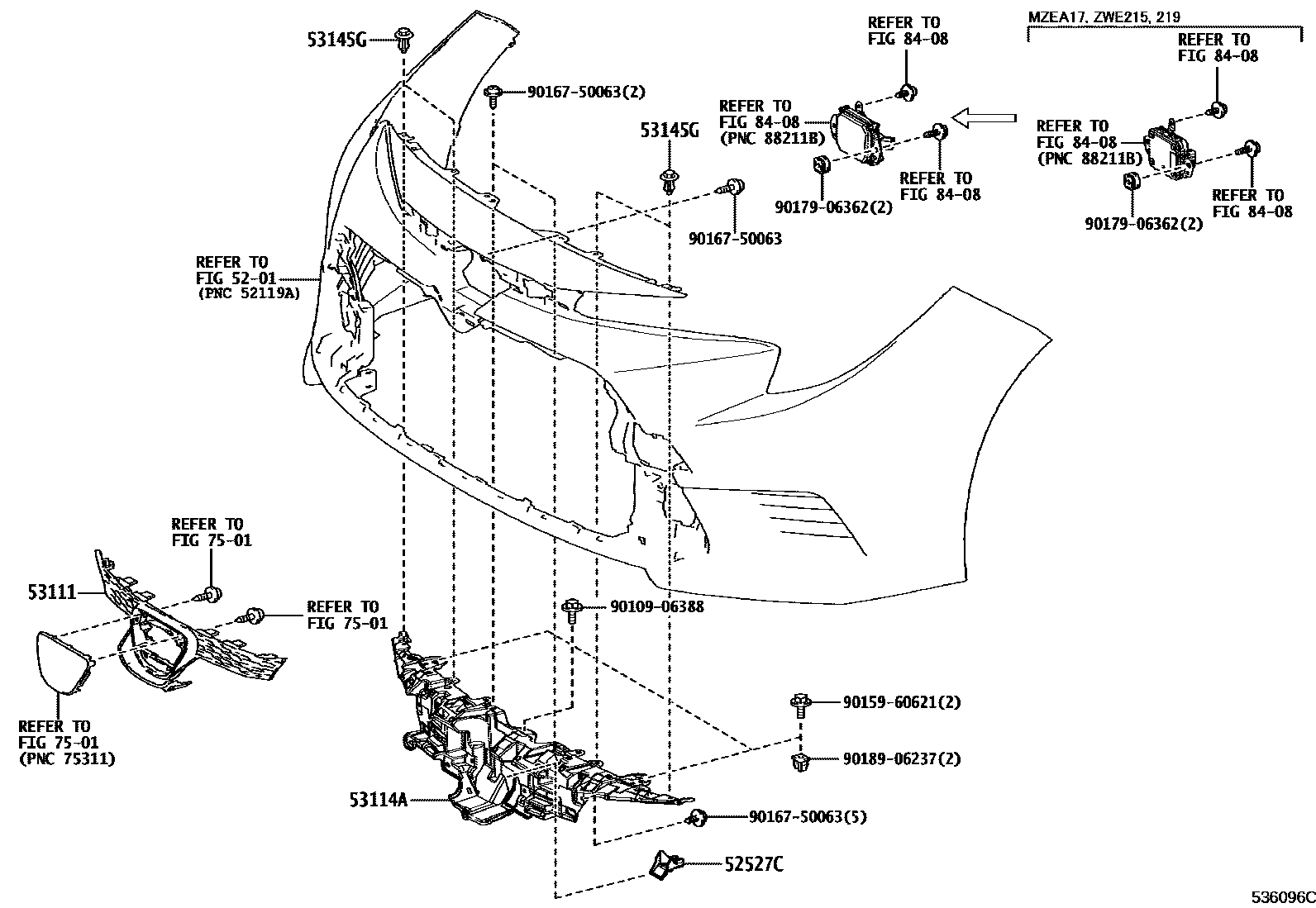

RADIATOR GRILLE

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

52527CRETAINER, FRONT BUMPER, LOWER NO.2

main52527-12060iMZEA12,NRE210,ZRE212,ZWE211,214201908

53111GRILLE, RADIATOR

main53111-12F30iMZEA12,NRE210,ZRE212,ZWE211,214201908

53114AGRILLE, RADIATOR, INNER

main53114-12240iMZEA12,NRE210,ZRE212,ZWE211,214201908

53145GCLIP, RADIATOR GRILLE

main90467-05063-C0×4iMZEA12,NRE210,ZRE212,ZWE211,214201908

BLACK

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

9010906388

main90109-06388

9015960621

main90159-60621

9016750063

main90167-50063

9017906362

main90179-06362

9018906237

main90189-06237

12 parts on this diagram · 1 diagram in section
