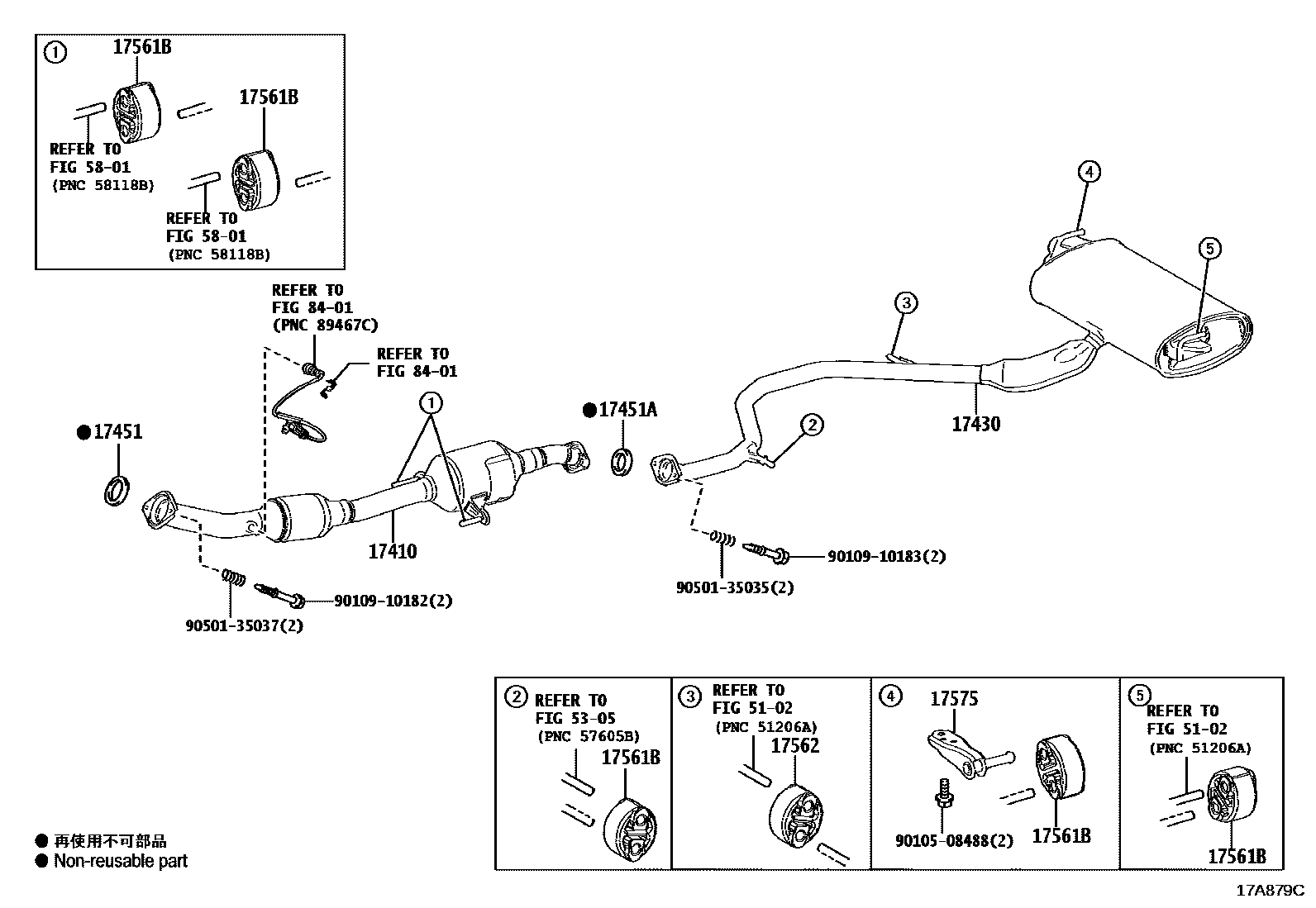

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-15421iM15AFKS..MZEA17202210-202404

main17410-15600iM15AFKS..MZEA17202404-202504

main17410-37B30i2ZRFXE..ZWE21#201908-202004

main17410-37B31i2ZRFXE..ZWE211,214202004

main17410-37C50i2ZRFAE..ZRE212201908

main17410-37D50iM20AFKS..MZEA12202006

main17410-37E50i2ZRFXE..ZWE215,219202210-202404

main17410-37G00i2ZRFXE..ZWE215,219202404

main17410-47340i8NRFTS..NRE210201908

17430PIPE ASSY, EXHAUST, TAIL

main17430-15830iM15AFKS..MZEA17202210-202504

main17430-37850i2ZRFAE..ZRE212201908

main17430-37870i2ZRFXE..ZWE214201908

main17430-37C40i2ZRFXE..ZWE215202210

main17430-47180i8NRFTS..NRE210201908

main17430-47270iM20AFKS..MZEA12202006

main17430-37840supersedes 17430-37830i2ZRFXE..ZWE211201908

17451GASKET, EXHAUST PIPE

main17451-21070iM15AFKS..MZEA17202210-202504

main17451-24010i2ZRFXE..ZWE215,219202210

main17451-28040iM20AFKS,8NRFTS,2ZRFAE..MZEA12,NRE210,ZRE212201908

17451AGASKET, EXHAUST PIPE, NO.2

main17451-23042iM20AFKS,8NRFTS,2ZRFAE..MZEA12,NRE210,ZRE212201908

main17451-23043iM15AFKS..MZEA17202311-202504

main17451-24020i2ZRFXE..ZWE211,214202004

17561BSUPPORT, EXHAUST PIPE, NO.1

main17565-22040×5i2ZRFXE..ZWE215,219202210

17562SUPPORT, EXHAUST PIPE, NO.2

main17565-28010iM15AFKS..MZEA17202210-202504

17575BRACKET, EXHAUST PIPE SUPPORT, NO.5

main17575-37030i2ZRFXE..ZWE215,219202210

main17576-15080iM15AFKS..MZEA17..WG202210-202405

main17576-15100iM15AFKS..MZEA17..SED202210-202504

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010508488

main90105-08488

9010910182

main90109-10182

9010910183

main90109-10183

9050135035

main90501-35035

9050135037

main90501-35037

16 parts on this diagram · 7 diagrams in section
