Toyota COROLLA AXIO/FIELDER151 — LUGGAGE COMPARTMENT DOOR & LOCK

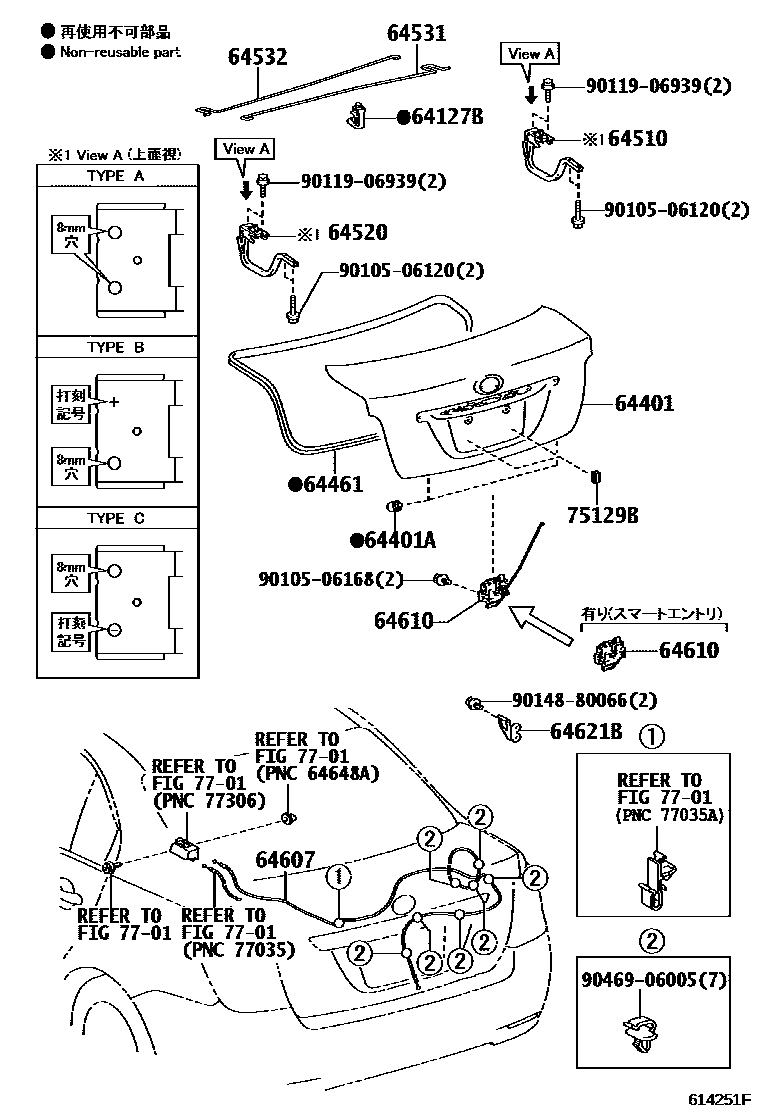

Parts diagram

64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

75129BCUSHION, REAR LICENCE PLATE

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9010506120

9010506168

9011906939

9014880066

9046906005

18 parts on this diagram · 1 diagram in section

LUGGAGE COMPARTMENT DOOR & LOCK for Toyota COROLLA AXIO/FIELDER151

This section contains 18 genuine Toyota parts for the LUGGAGE COMPARTMENT DOOR & LOCK system of the Toyota COROLLA AXIO/FIELDER151. Key components include: SUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR, PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR, CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL), WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR, HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH.
