Toyota COROLLA AXIO/FIELDER151 — REAR BUMPER & BUMPER STAY

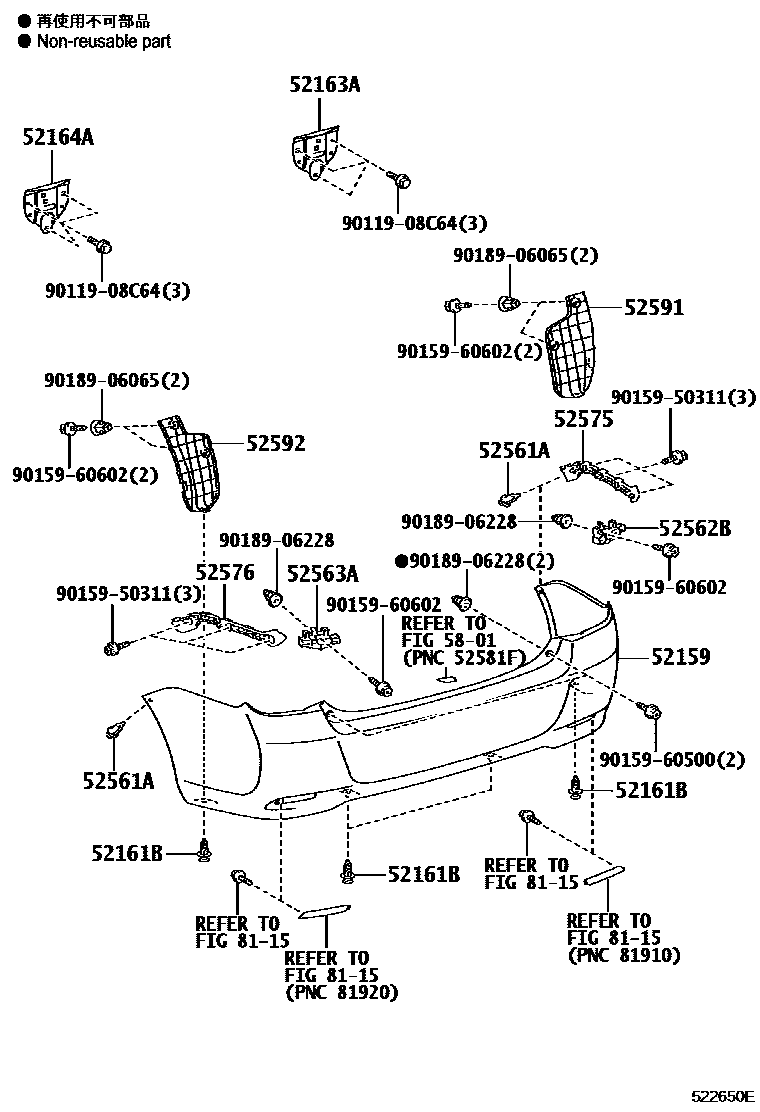

Parts diagram

52159COVER, REAR BUMPER

52161BPIECE, REAR BUMPER

52163APLATE, REAR BUMPER, RH

52164APLATE, REAR BUMPER, LH

52561ACLIP(FOR REAR BUMPER RETAINER)

52562BRETAINER, REAR BUMPER, UPPER RH

52563ARETAINER, REAR BUMPER, UPPER LH

52575RETAINER, REAR BUMPER SIDE, RH

52576RETAINER, REAR BUMPER SIDE, LH

52591SEAL, REAR BUMPER SIDE, RH

52592SEAL, REAR BUMPER SIDE, LH

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

8115REFLEX REFLECTOR

→ Go to FIG 81-15

9011908C64

9015950311

9015960500

9015960602

9018906065

9018906228

19 parts on this diagram · 6 diagrams in section

REAR BUMPER & BUMPER STAY for Toyota COROLLA AXIO/FIELDER151

This section contains 30 genuine Toyota parts for the REAR BUMPER & BUMPER STAY system of the Toyota COROLLA AXIO/FIELDER151. Key components include: EXTENSION, REAR BUMPER, COVER, REAR BUMPER, PIECE, REAR BUMPER, PLATE, REAR BUMPER, RH, PLATE, REAR BUMPER, LH.
