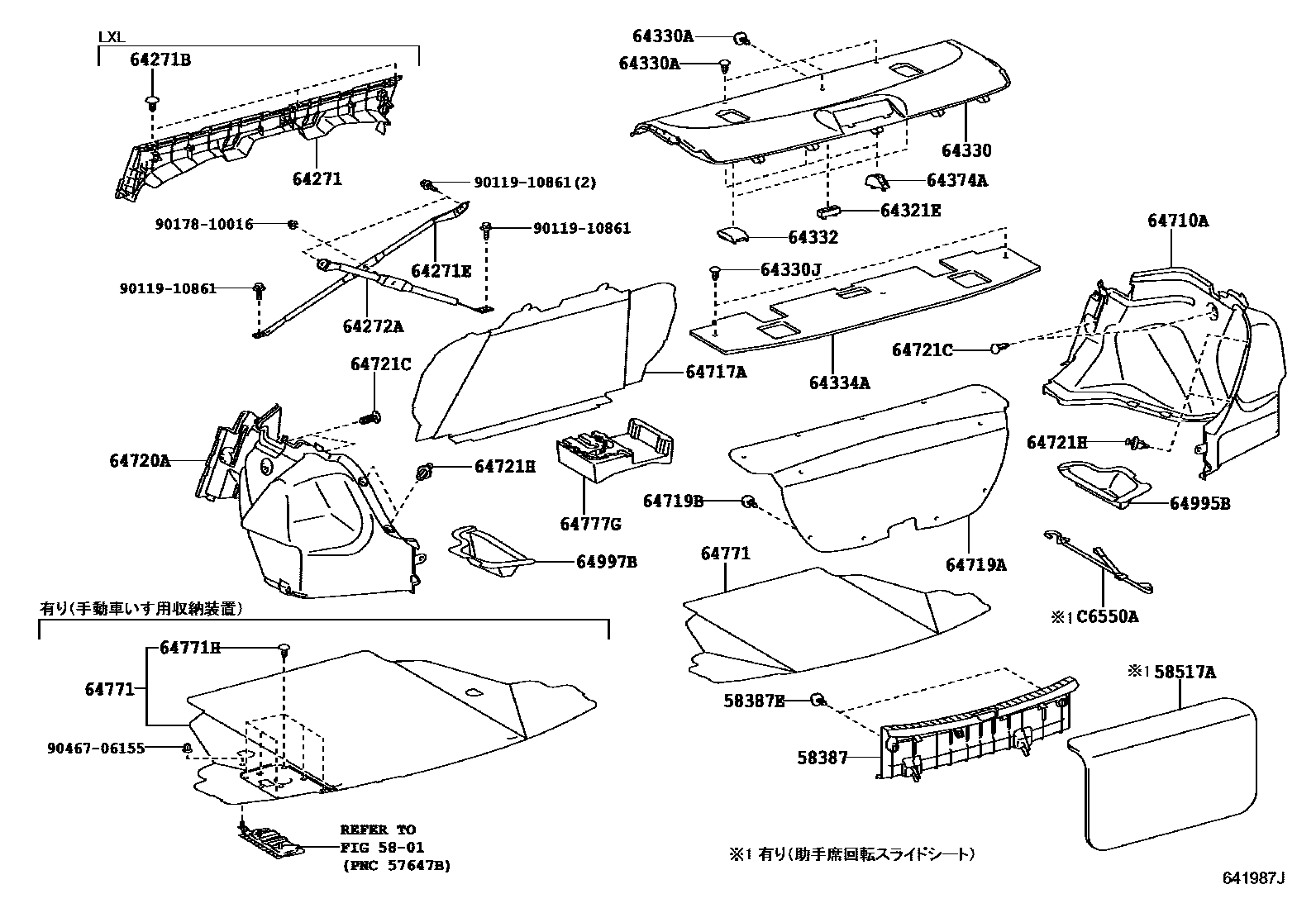

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

58387PLATE, REAR FLOOR FINISH

main58387-12080iNZE14#,ZRE14#..SED200810

58387ECLIP(FOR REAR FLOOR FINISH PLATE)

main90467-08186-C0×2iNZE14#,ZRE14#..SED200810-201204

BLACK

58517AMAT, REAR FLOOR, NO.2

main58517-13010iNZE14#,ZRE14#..SED200609-200810

64271BOARD, ROOM PARTITION, NO.1

main64271-12230-B1iZRE14#..LXL200810-201204

GRAY,TRIM1#

main64271-12230-E1iZRE14#..LXL200609-200810

GREGE,TRIM4#

64271BCLIP(FOR ROOM PARTITION BOARD)

main90467-08186-C0×3iZRE14#..LXL200609-200810

BLACK

64271EPANEL, ROOM PARTITION

main64241-12050iNZE14#..SED200609-200810

64272APANEL, ROOM PARTITION, LH

main64242-12050iNZE14#..SED200609-200810

64321EBRACKET, PACKAGE TRAY TRIM

main64321-12240iNZE14#,ZRE14#..SED200609-200810

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-12A60-B1iNZE14#,ZRE14#..SED200609-200810

GRAY,TRIM1#

main64330-12A60-E0iNZE14#,ZRE14#..SED200609-200810

GREGE,TRIM4#

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-06020-E7×4iNZE14#,ZRE14#..SED200609-200810

GREGE,TRIM4#

main90467-06020-P3×4iNZE14#,ZRE14#..SED200609-200810

GRAY,TRIM1#

64330JCLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-07049-C0×2iNZE14#,ZRE14#..SED200609-200810

BLACK

64332COVER, PACKAGE TRAY TRIM

main64332-52050-B2×2iNZE14#,ZRE14#..SED200609-200810

GRAY,TRIM1#

main64332-52050-E1×2iNZE14#,ZRE14#..SED200609-200810

GREGE,TRIM4#

main64332-52060-B1×2iNZE14#..SED..X200810-201204

64334APAD, PACKAGE TRAY TRIM

main64334-12400iNZE14#,ZRE14#..SED200609-200810

64374ASUPPORT, PACKAGE TRAY TRIM

main64374-12030×3iNZE14#,ZRE14#..SED200609-200810

64710ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, RH

main64710-12050-C0iNZE14#,ZRE14#..G,LXL; NZE14#..SED..X200609-200810

BLACK,TRIM1#,4#; BLACK,TRIM12,13,4#

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-12120iNZE14#..SED200609-200810

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-12160-C0iNZE14#,ZRE14#..G,LXL; NZE14#..SED..X200609-200810

BLACK,TRIM1#,4#; BLACK,TRIM12,13,4#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-08186-C0×11iNZE14#,ZRE14#..SED200609-200810

BLACK

64720ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, LH

main64720-12050-C0iNZE14#,ZRE14#..G,LXL; NZE14#..SED..X200609-200810

BLACK,TRIM1#,4#; BLACK,TRIM12,13,4#

64721CCLIP(LUGGAGE COMPARTMENT)

main90467-08186-C0×4iNZE14#,ZRE14#..SED200609-200810

BLACK

64721HCLIP(LUGGAGE COMPARTMENT)

main90467-07164×4iNZE14#,ZRE14#..SED200609-200810

64771COVER, SPARE WHEEL

main64771-12260-C0iNZE14#,ZRE14#..G,LXL; NZE14#..SED..X200609-200810

main64771-12270-C0supersedes 64771-12260-C0iNZE14#,ZRE14#..G,LXL; NZE14#..SED..X200609-200810

main64771-12280-C0supersedes 64771-12260-C0iNZE14#,ZRE14#..G,LXL; NZE14#..SED..X200609-200810

64771HCLIP(FOR SPARE WHEEL COVER)

main90467-05161-C0×6iNZE14#,ZRE14#..SED200609-200810

64777GCUSHION, SPARE WHEEL

main64777-12080iNZE14#,ZRE14#..SED200810

64995BBOX, DECK FLOOR, RH

main64995-12050iNZE14#,ZRE14#..SED200609-200810

64997BBOX, DECK FLOOR, LH

main64997-12060iNZE14#,ZRE14#..SED200609-200810

C6550ABELT ASSY, WHEEL CHAIR SET, NO.1

mainC655012010×2iNZE14#,ZRE14#..SED200609-200810

9011910861

main90119-10861

9017810016

main90178-10016

9046706155

main90467-06155

31 parts on this diagram · 1 diagram in section
