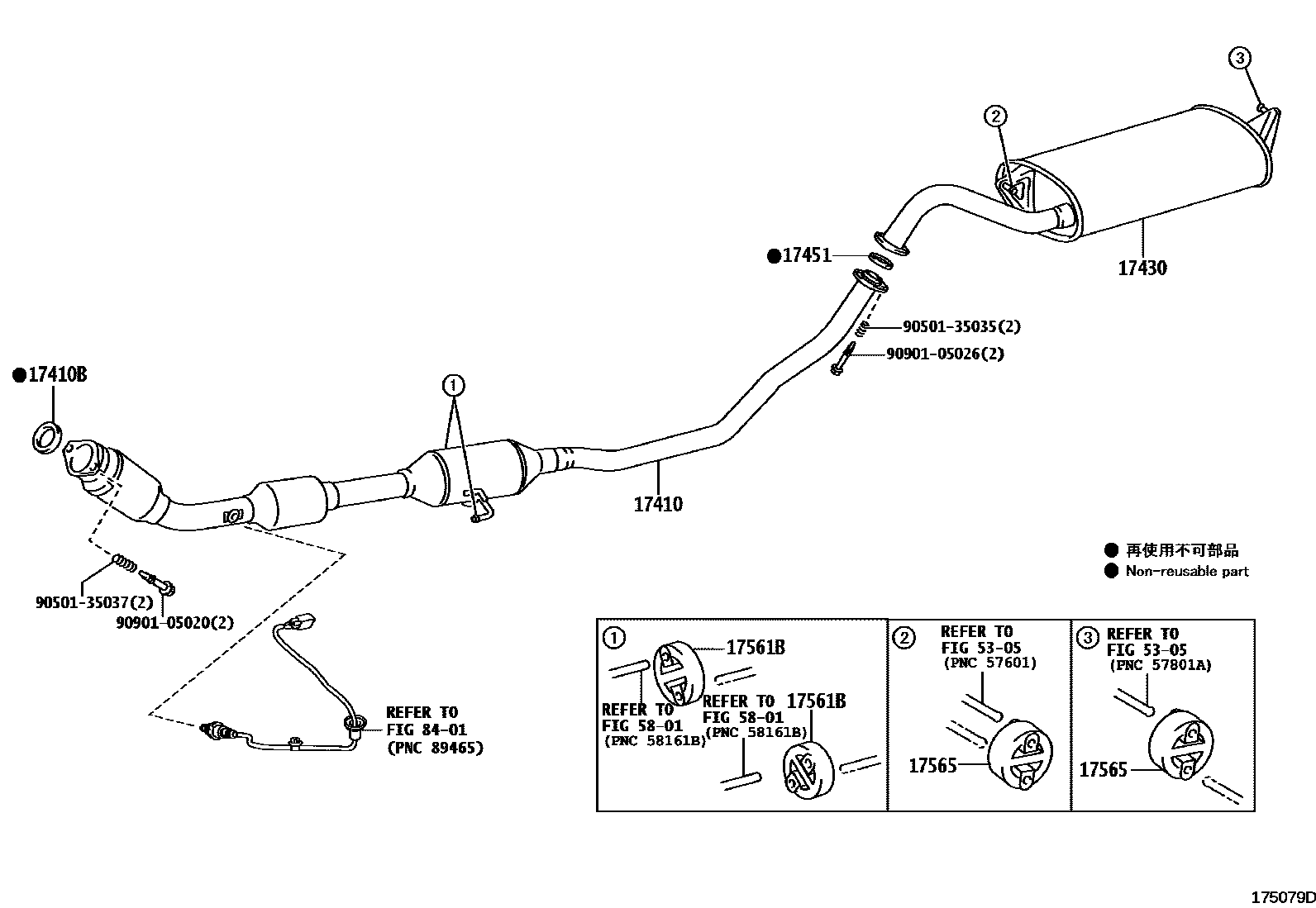

EXHAUST PIPE

0001 1 0002 1 0003 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-21770i1NZFE..NZE144200810-201204

main17410-21790i1NZFE..NZE141200810-200909

main17410-21A20i1NZFE..NZE141200910-201204

main17410-37180i2ZR#..ZRE144200810-201204

main17410-37190i2ZRFE..ZRE142200609-200705

main17410-37191i2ZRFE..ZRE142200706-200810

main17410-37490i2ZRFAE..ZRE142201005-201204

17410BGASKET, EXHAUST PIPE

main17451-21070i1NZFE,2ZRFE..NZE14#,ZRE144200609-200810

main17451-28040i2ZR#..ZRE142200810

17430PIPE ASSY, EXHAUST, TAIL

main17430-21700i1NZFE,2ZRFE..NZE141,ZRE142200609-200810

main17430-21710i1NZFE,2ZRFE..NZE144,ZRE144200609-200810

17451GASKET, EXHAUST PIPE

main17451-21080i1NZFE,2ZRFE..NZE144,ZRE144200609-200810

main17451-23040i1NZFE,2ZRFE..NZE141,ZRE142200609-200707

main17451-23041i1NZFE,2ZRFE..NZE141,ZRE142200708-200810

main17451-23042i1NZFE,2ZRFAE..NZE141,ZRE142201010

main17451-28021i2ZRFE..ZRE142200810

17561BSUPPORT, EXHAUST PIPE, NO.1

main17565-22030×2i1NZFE,2ZRFE..NZE141,ZRE142200609-200810

main17565-31040×2i1NZFE,2ZR#..NZE144,ZRE144200810

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-22040×2i1NZFE,2ZRFE..NZE141,ZRE142; 1NZFE,2ZRFE..NZE144,ZRE144200609-200810

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9050135035

main90501-35035

9050135037

main90501-35037

9090105020

main90901-05020

9090105026

main90901-05026

13 parts on this diagram · 3 diagrams in section
