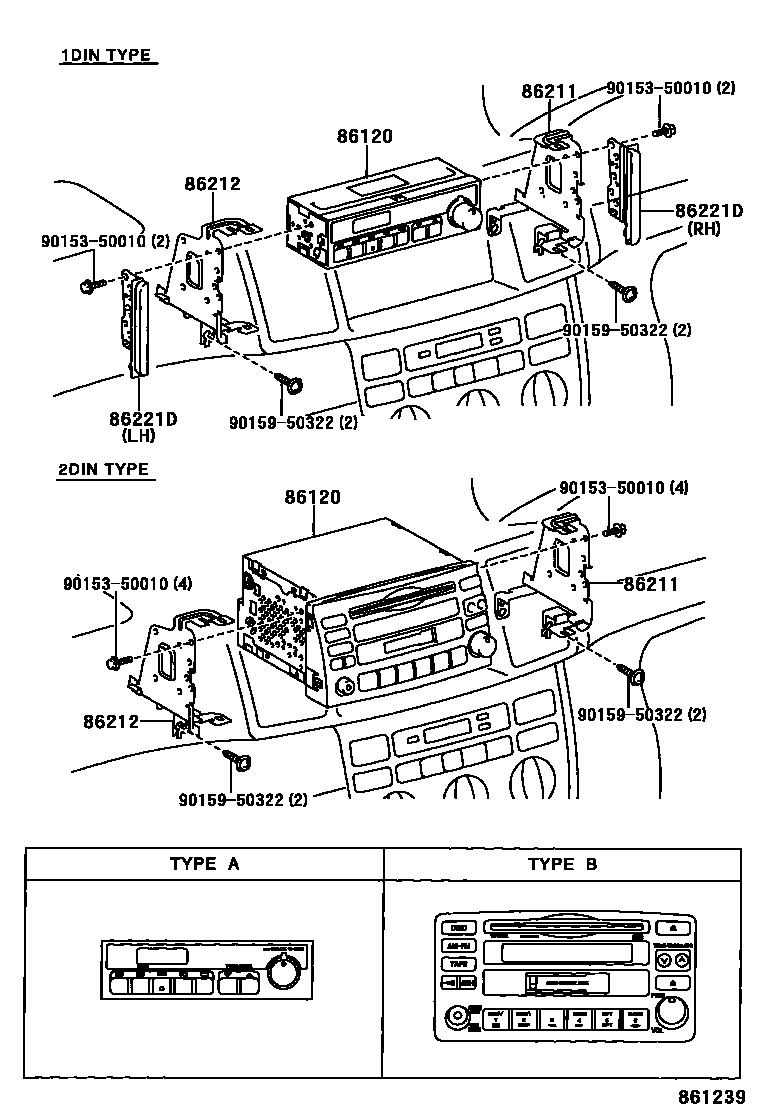

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1������

86120RECEIVER ASSY, RADIO

main86120-1A140iCE121,NZE12#,ZZE12#..G,S,X,ZAER200209-200309

main86120-27010iCE121,NZE12#..SED..X200008-200110

main86120-32480iCE121,NZE12#..SED..X200209-200404

86211BRACKET, RADIO, NO.1

main86211-12370iNZE12#,ZZE12#200404-200609

86212BRACKET, RADIO, NO.2

main86212-12350iNZE12#,ZZE12#200404-200609

86221DPANEL, RADIO RECEIVER

main86221-52050iNZE12#,ZZE12#200404-200609

main86221-52060iNZE12#,ZZE12#200404-200609

9015350010

main90153-50010

9015950322

main90159-50322

6 parts on this diagram · 2 diagrams in section
