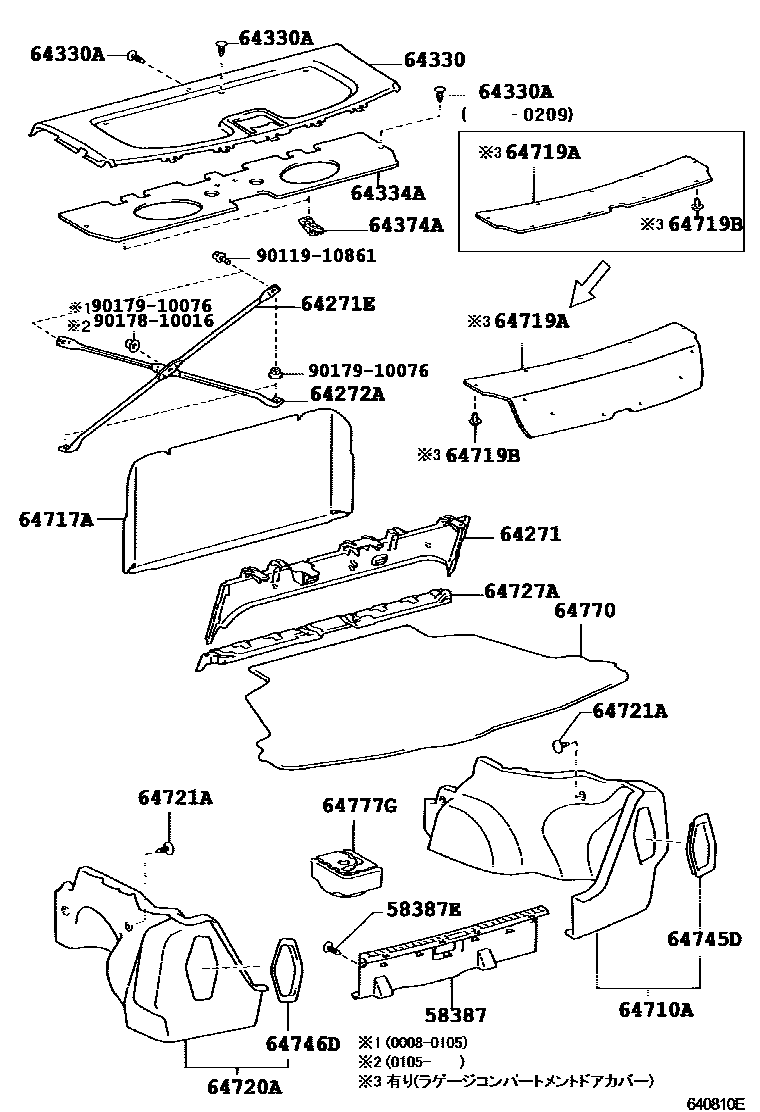

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58387PLATE, REAR FLOOR FINISH

main58387-12060-B0iCE121,NZE12#,ZZE122,124..SED200008-200209

DK.GRAY,TRIM0#,1#

58387ECLIP(FOR REAR FLOOR FINISH PLATE)

main90467-05096-22×2iNZE12#,ZZE122,124..SED200404-200609

BLACK

64271BOARD, ROOM PARTITION, NO.1

main64271-12180-C0iCE121,NZE121,124..G; ZZE122,124..LXL200110-200209

BLACK,TRIM0#; BLACK,TRIM0#,1#

64271EPANEL, ROOM PARTITION

main64241-12030iCE121,NZE12#..SED200209-200404

64272APANEL, ROOM PARTITION, LH

main64242-12020iCE121,NZE12#..SED200008-200105

main64242-12021iNZE12#..SED200404-200609

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-1E100-A0iZZE122,124..LXL200209-200404

main64330-1E100-B0iZZE122,124..LXL200209-200404

main64330-1E100-B1iZZE122,124..LXL200008-200209

main64330-1E110-A0iNZE12#,ZZE122,124..SED200404-200609

IVORY,TRIM0#

main64330-1E110-B0iNZE12#,ZZE122,124..SED200404-200609

DARK GRAY,TRIM1#

main64330-1E110-B1iCE121,NZE12#,ZZE122,124..SED200008-200209

STONE,TRIM1#

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-06020-A2×6iNZE12#..SED; NZE121,124,ZZE122,124..G,LXL200404-200609

main90467-06020-B6×6iCE121,NZE12#..SED; CE121,NZE121,124,ZZE122,124..G,LXL; ZZE122,124..LXL200305-200404

main90467-06061-A0×7iCE121,NZE121,124..G200110-200209

IVORY,TRIM0#

main90467-06061-B1×8iCE121,NZE12#..SED; ZZE122,124..LXL200008-200209

main90467-06061-B2×6iCE121,NZE12#..SED; CE121,NZE121,124,ZZE122,124..G,LXL; ZZE122,124..LXL200209-200305

64334APAD, PACKAGE TRAY TRIM

main64334-12360iCE121,NZE12#,ZZE122,124..SED200008-200209

64374ASUPPORT, PACKAGE TRAY TRIM

main64374-12020×2iCE121,NZE12#..SED200008-200209

64710ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, RH

main64710-12010-C0iCE121,NZE12#,ZZE122,124..SED200008-200209

BLACK,TRIM0#,1#

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-12100-C0iCE121,NZE12#..SED200008-200209

BLACK,TRIM0#,1#

main64717-12101-C0iCE121,NZE12#..SED200309-200404

BLACK,TRIM0#,1#

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-12110-C0iCE121,NZE12#,ZZE122,124..SED200008-200209

BLACK,TRIM0#,1#

main64719-12120-C0iCE121,NZE12#,ZZE122,124..SED200209-200404

BLACK,TRIM0#,1#

main64719-12140-C0iNZE12#,ZZE122,124..SED200404-200609

BLACK,TRIM0#,1#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-05096-22×9iCE121,NZE12#,ZZE122,124..SED200008-200209

BLACK,TRIM0#,1#

64720ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, LH

main64720-12010-C0iCE121,NZE12#,ZZE122,124..SED200008-200209

BLACK,TRIM0#,1#

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-05096-22×8iCE121,NZE12#,ZZE122,124..SED200008-200209

BLACK,TRIM0#,1#

64727APAD, LUGGAGE COMPARTMENT TRIM, INNER

main64727-12020iZZE122,124..LXL200008-200209

64745DCOVER, REAR COMBINATION LAMP SERVICE, RH

main64745-12120-C0iCE121,NZE12#,ZZE122,124..SED200008-200209

BLACK,TRIM0#,1#

64746DCOVER, REAR COMBINATION LAMP SERVICE, LH

main64745-12120-C0iCE121,NZE12#,ZZE122,124..SED200008-200209

BLACK,TRIM0#,1#

64770COVER ASSY, SPARE WHEEL

main64771-12220-C0iCE121,NZE12#,ZZE122,124..SED200008-200209

BLACK,TRIM0#,1#

main64771-12221-C0iCE121,NZE12#,ZZE122,124..SED200309-200404

BLACK,TRIM0#,1#

64777GCUSHION, SPARE WHEEL

main64777-12030-B0iCE121,NZE120,121..SED200110-200209

main64777-12030-C0iCE121,NZE120,121..SED200008-200110

main64777-12040iNZE12#,ZZE122,124..SED200404-200609

9011910861

main90119-10861

9017810016

main90178-10016

9017910076

main90179-10076

23 parts on this diagram · 1 diagram in section
