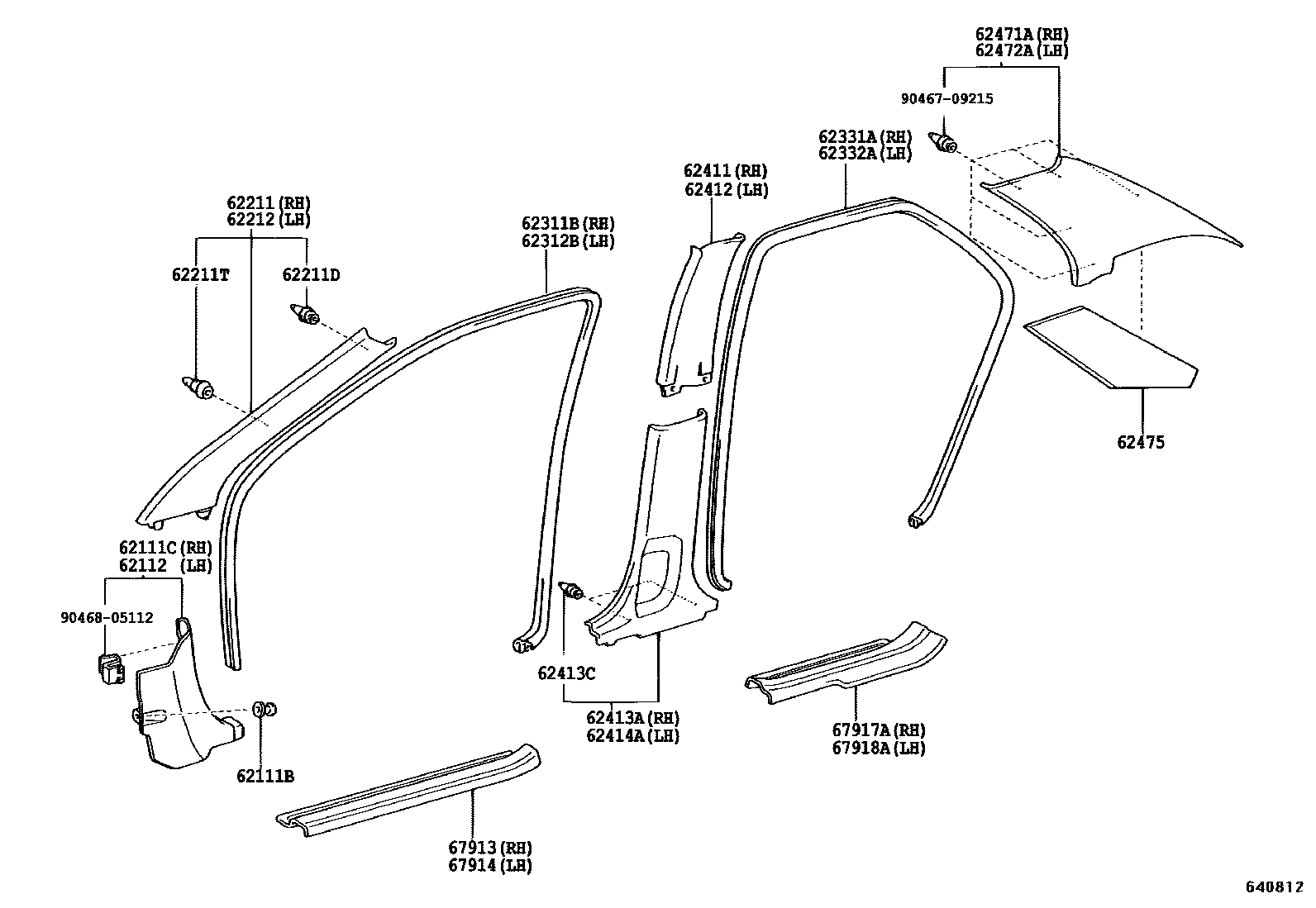

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1 0003 1��(SRS ��������� �������) 0004 1 0005 1 0006 1��(SRS ��������� �������)

62111BCLIP(FOR COWL SIDE TRIM)

main90467-06120×2iCE121,NZE12#,ZZE12#200008-200209

62111CBOARD, COWL SIDE TRIM, RH

main62111-12270-A0iCE121,NZE12#,ZZE122,124..G,LXL,X200008-200209

IVORY,TRIM0#

main62111-12270-B0iCE121,NZE12#,ZZE122,124..SED200008-200209

STONE,TRIM1#

main62111-12270-B1iZZE12#..WG200008-200209

DK.GRAY,TRIM1#

main62111-13070-A0iCE121,NZE12#,ZZE122,124..G,LXL,X200209-200404

IVORY,TRIM0#

main62111-13070-B0iCE121,NZE121,124,ZZE12#..WG200209-200404

DK.GRAY,TRIM1#

main62111-13070-B1iNZE12#,ZZE122,124..SED200404-200609

MD.GRAY,TRIM1#

62112BOARD, COWL SIDE TRIM, LH

main62112-12300-A0iCE121,NZE12#,ZZE122,124..G,LXL,X200008-200209

IVORY,TRIM0#

main62112-12300-B0iCE121,NZE12#,ZZE122,124..SED200008-200209

STONE,TRIM1#

main62112-12300-B1iCE121,NZE121,124..WG200110-200209

DK.GRAY,TRIM1#

main62112-13100-A0iCE121,NZE12#,ZZE122,124..G,LXL,X200209-200404

IVORY,TRIM0#

main62112-13100-B0iNZE121,124,ZZE12#..WG200404-200609

DK.GRAY,TRIM1#

main62112-13100-B1iCE121,NZE12#,ZZE122,124..SED200209-200404

MD.GRAY,TRIM1#

62211GARNISH, FRONT PILLAR, RH

main62211-12320-A0iCE121,NZE12#,ZZE122,124..G,LXL,X200008-200209

IVORY,TRIM0#

main62211-12320-B0iCE121,NZE121,124..WG200110-200209

LT.GRAY,TRIM1#

main62211-12360-A0iNZE12#,ZZE122,124..G,LXL,X200404-200609

main62211-12360-B0iNZE12#,ZZE12#200404-200609

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main90467-10161×2iNZE12#,ZZE12#200404-200609

main90467-10188×2iCE121,NZE12#,ZZE12#200008-200209

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90467-10192×2iCE121,NZE12#,ZZE12#200209-200404

62212GARNISH, FRONT PILLAR, LH

main62212-12320-A0iCE121,NZE12#,ZZE122,124..G,LXL,X200008-200209

IVORY,TRIM0#

main62212-12320-B0iZZE12#;CE121,NZE12#..SED200008-200209

LT.GRAY,TRIM1#

main62212-12360-A0iNZE12#,ZZE122,124..G,LXL,X200404-200609

main62212-12360-B0iNZE12#,ZZE12#200404-200609

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-12090-A0iCE121,NZE12#,ZZE122,124..G,LXL,X200008-200209

IVORY,TRIM0#

main62311-12090-B0iCE121,NZE12#,ZZE122,124..SED200008-200209

STONE,TRIM1#

main62311-12090-B1iZZE12#..WG200008-200209

DK.GRAY,TRIM1#

main62311-12140-A0iCE121,NZE12#,ZZE122,124..G,LXL,X200209-200303

IVORY,TRIM0#

main62311-12140-B1iCE121,NZE121,124,ZZE12#..WG200209-200303

DK.GRAY,TRIM1#

main62311-12140-B2iCE121,NZE12#,ZZE122,124..SED200209-200303

MD.GRAY,TRIM1#

main62311-12141-A0iNZE12#,ZZE122,124..G,LXL,X200404-200609

IVORY,TRIM0#

main62311-12141-B1iCE121,NZE121,124,ZZE12#..WG200303-200404

DK.GRAY,TRIM1#

main62311-12141-B2iCE121,NZE12#,ZZE122,124..SED200303-200404

MD.GRAY,TRIM1#

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-12090-A0iCE121,NZE12#,ZZE122,124..G,LXL,X200008-200209

IVORY,TRIM0#

main62312-12090-B0iCE121,NZE12#,ZZE122,124..SED200008-200209

STONE,TRIM1#

main62312-12090-B1iZZE12#..WG200008-200209

DK.GRAY,TRIM1#

main62312-12140-A0iCE121,NZE12#,ZZE122,124..G,LXL,X200209-200303

IVORY,TRIM0#

main62312-12140-B1iCE121,NZE121,124,ZZE12#..WG200209-200303

DK.GRAY,TRIM1#

main62312-12140-B2iCE121,NZE12#,ZZE122,124..SED200209-200303

MD.GRAY,TRIM1#

main62312-12141-A0iCE121,NZE12#,ZZE122,124..G,LXL,X200303-200404

IVORY,TRIM0#

main62312-12141-B1iCE121,NZE121,124,ZZE12#..WG200303-200404

DK.GRAY,TRIM1#

main62312-12141-B2iCE121,NZE12#,ZZE122,124..SED200303-200404

MD.GRAY,TRIM1#

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-12050-A0iCE121,NZE12#,ZZE122,124..SED200008-200101

IVORY,TRIM0#

main62331-12050-B0iCE121,NZE12#,ZZE122,124..SED200008-200101

STONE,TRIM1#

main62331-12051-A0iCE121,NZE12#,ZZE122,124..SED200209-200309

IVORY,TRIM0#

main62331-12051-B0iCE121,NZE12#,ZZE122,124..SED200101-200209

STONE,TRIM1#

main62331-12051-B2iCE121,NZE12#,ZZE122,124..SED200209-200309

MD.GRAY,TRIM1#

main62331-12052-A0iNZE12#,ZZE122,124..SED200404-200609

IVORY,TRIM0#

main62331-12052-B2iCE121,NZE12#,ZZE122,124..SED200309-200404

MD.GRAY,TRIM1#

main62331-13020-A0iCE121,NZE121,124..WG200008-200102

IVORY,TRIM0#

main62331-13020-B0iZZE12#..WG200008-200102

DK.GRAY,TRIM1#

main62331-13021-A0iCE121,NZE121,124..WG200102-200209

IVORY,TRIM0#

main62331-13021-B0iZZE12#..WG200102-200209

DK.GRAY,TRIM1#

main62331-13022-A0iNZE121,124..WG200404-200609

IVORY,TRIM0#

main62331-13022-B0iNZE121,124,ZZE12#..WG200404-200609

DK.GRAY,TRIM1#

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-12050-A0iCE121,NZE12#,ZZE122,124..SED200008-200101

IVORY,TRIM0#

main62332-12050-B0iCE121,NZE12#,ZZE122,124..SED200008-200101

STONE,TRIM1#

main62332-12051-A0iCE121,NZE12#,ZZE122,124..SED200209-200309

IVORY,TRIM0#

main62332-12051-B0iCE121,NZE12#,ZZE122,124..SED200101-200209

STONE,TRIM1#

main62332-12051-B2iCE121,NZE12#,ZZE122,124..SED200209-200309

MD.GRAY,TRIM1#

main62332-12052-A0iNZE12#,ZZE122,124..SED200404-200609

IVORY,TRIM0#

main62332-12052-B2iNZE12#,ZZE122,124..SED200404-200609

MD.GRAY,TRIM1#

main62332-13020-A0iCE121,NZE121,124..WG200008-200011

IVORY,TRIM0#

main62332-13020-B0iZZE12#..WG200008-200011

DK.GRAY,TRIM1#

main62332-13021-A0iCE121,NZE121,124..WG200209-200404

IVORY,TRIM0#

main62332-13021-B0iZZE12#..WG200102-200209

DK.GRAY,TRIM1#

main62332-13022-A0iNZE121,124..WG200404-200609

IVORY,TRIM0#

main62332-13022-B0iNZE121,124,ZZE12#..WG200404-200609

DK.GRAY,TRIM1#

62411GARNISH, CENTER PILLAR, RH

main62410-12030-A0iNZE12#,ZZE122,124..G,LXL,X200404-200609

main62410-12030-B0iNZE12#,ZZE12#200404-200609

main62411-12510-A0iCE121,NZE12#,ZZE122,124..G,LXL,X200008-200209

IVORY,TRIM0#

main62411-12510-B0iNZE12#,ZZE12#200404-200609

LT.GRAY,TRIM1#

62412GARNISH, CENTER PILLAR, LH

main62412-12510-A0iCE121,NZE12#,ZZE122,124..G,LXL,X200209-200404

IVORY,TRIM0#

main62412-12510-B0iNZE12#,ZZE12#200404-200609

LT.GRAY,TRIM1#

main62420-12030-A0iNZE12#,ZZE122,124..G,LXL,X200404-200609

main62420-12030-B0iNZE12#,ZZE12#200404-200609

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-12230-A0iCE121,NZE12#,ZZE122,124..G,LXL,X200008-200105

IVORY,TRIM0#

main62413-12230-B0iCE121,NZE12#,ZZE122,124..SED200008-200105

STONE,TRIM1#

main62413-12230-B1iZZE12#..WG200008-200105

DK.GRAY,TRIM1#

main62413-12231-A0iCE121,NZE12#,ZZE122,124..G,LXL,X200105-200209

IVORY,TRIM0#

main62413-12231-B0iCE121,NZE12#,ZZE122,124..SED200105-200209

STONE,TRIM1#

main62413-12231-B1iNZE121,124,ZZE12#..WG200404-200609

DK.GRAY,TRIM1#

main62413-12231-B2iCE121,NZE12#,ZZE122,124..SED200209-200404

MD.GRAY,TRIM1#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-09215×4iCE121,NZE12#,ZZE12#200105-200209

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-12230-A0iCE121,NZE12#,ZZE122,124..G,LXL,X200008-200105

IVORY,TRIM0#

main62414-12230-B0iCE121,NZE12#,ZZE122,124..SED200008-200105

STONE,TRIM1#

main62414-12230-B1iZZE12#..WG200008-200105

DK.GRAY,TRIM1#

main62414-12231-A0iCE121,NZE12#,ZZE122,124..G,LXL,X200209-200404

IVORY,TRIM0#

main62414-12231-B0iCE121,NZE12#,ZZE122,124..SED200105-200209

STONE,TRIM1#

main62414-12231-B1iCE121,NZE121,124,ZZE12#..WG200209-200404

DK.GRAY,TRIM1#

main62414-12231-B2iNZE12#,ZZE122,124..SED200404-200609

MD.GRAY,TRIM1#

62471AGARNISH, ROOF SIDE, INNER RH

main62470-13050-A0iNZE121,124..WG200404-200609

IVORY,TRIM0#

main62470-13050-B0iCE121,NZE121,124..WG200110-200209

LT.GRAY,TRIM1#

main62470-13070-A1iNZE121,124..WG200404-200609

main62470-13070-B1iNZE121,124,ZZE12#..WG200404-200609

main62471-12810-A0iCE121,NZE12#,ZZE122,124..SED200008-200209

IVORY,TRIM0#

main62471-12810-B0iNZE12#,ZZE122,124..SED200404-200609

LT.GRAY,TRIM1#

main62471-12870-A0iNZE12#,ZZE122,124..SED200404-200609

main62471-12870-B0iNZE12#,ZZE122,124..SED200404-200609

62472AGARNISH, ROOF SIDE, INNER LH

main62472-12810-A0iCE121,NZE12#,ZZE122,124..SED200209-200404

IVORY,TRIM0#

main62472-12810-B0iNZE12#,ZZE122,124..SED200404-200609

LT.GRAY,TRIM1#

main62472-12870-A0iNZE12#,ZZE122,124..SED200404-200609

main62472-12870-B0iNZE12#,ZZE122,124..SED200404-200609

main62480-13050-A0iCE121,NZE121,124..WG200008-200209

IVORY,TRIM0#

main62480-13050-B0iCE121,NZE121,124,ZZE12#..WG200209-200404

LT.GRAY,TRIM1#

main62480-13070-A1iNZE121,124..WG200404-200609

main62480-13070-B1iNZE121,124,ZZE12#..WG200404-200609

62475PAD, ROOF SIDE INNER GARNISH

main62475-12140×2iCE121,NZE12#,ZZE122,124..SED200008-200209

main62475-12150×2iNZE12#,ZZE122,124..SED200404-200609

67913PLATE, FRONT DOOR SCUFF, RH

main67913-12270-A0iCE121,NZE12#,ZZE122,124..G,LXL,X200008-200209

IVORY,TRIM0#

main67913-12270-B0iCE121,NZE12#,ZZE122,124..SED200008-200209

STONE,TRIM1#

main67913-12270-B1iZZE12#..WG200008-200209

DK.GRAY,TRIM1#

main67913-13040-A0iCE121,NZE12#,ZZE122,124..G,LXL,X200209-200404

IVORY,TRIM0#

main67913-13040-B0iNZE121,124,ZZE12#..WG200404-200609

DK.GRAY,TRIM1#

main67913-13040-B1iCE121,NZE12#,ZZE122,124..SED200209-200404

MD.GRAY,TRIM1#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-12230-A0iCE121,NZE12#,ZZE122,124..G,LXL,X200008-200209

IVORY,TRIM0#

main67914-12230-B0iCE121,NZE12#,ZZE122,124..SED200008-200209

STONE,TRIM1#

main67914-12230-B1iZZE12#..WG200008-200209

DK.GRAY,TRIM1#

main67914-13040-A0iCE121,NZE12#,ZZE122,124..G,LXL,X200209-200404

IVORY,TRIM0#

main67914-13040-B0iNZE121,124,ZZE12#..WG200404-200609

DK.GRAY,TRIM1#

main67914-13040-B1iCE121,NZE12#,ZZE122,124..SED200209-200404

MD.GRAY,TRIM1#

67917APLATE, REAR DOOR SCUFF, RH

main67917-12120-A0iCE121,NZE12#,ZZE122,124..SED200209-200404

IVORY,TRIM0#

main67917-12120-B0iCE121,NZE12#,ZZE122,124..SED200008-200209

STONE,TRIM1#

main67917-12120-B2iCE121,NZE12#,ZZE122,124..SED200209-200404

MD.GRAY,TRIM1#

main67917-13060-A0iNZE121,124..WG200404-200609

IVORY,TRIM0#

main67917-13060-B0iCE121,NZE121,124,ZZE12#..WG200209-200404

DK.GRAY,TRIM1#

67918APLATE, REAR DOOR SCUFF, LH

main67918-12110-A0iNZE12#,ZZE122,124..SED200404-200609

IVORY,TRIM0#

main67918-12110-B0iCE121,NZE12#,ZZE122,124..SED200008-200209

STONE,TRIM1#

main67918-12110-B2iNZE12#,ZZE122,124..SED200404-200609

MD.GRAY,TRIM1#

main67918-13060-A0iCE121,NZE121,124..WG200008-200209

IVORY,TRIM0#

main67918-13060-B0iCE121,NZE121,124..WG200110-200209

DK.GRAY,TRIM1#

9046709215

main90467-09215

9046805112

main90468-05112

25 parts on this diagram · 6 diagrams in section
