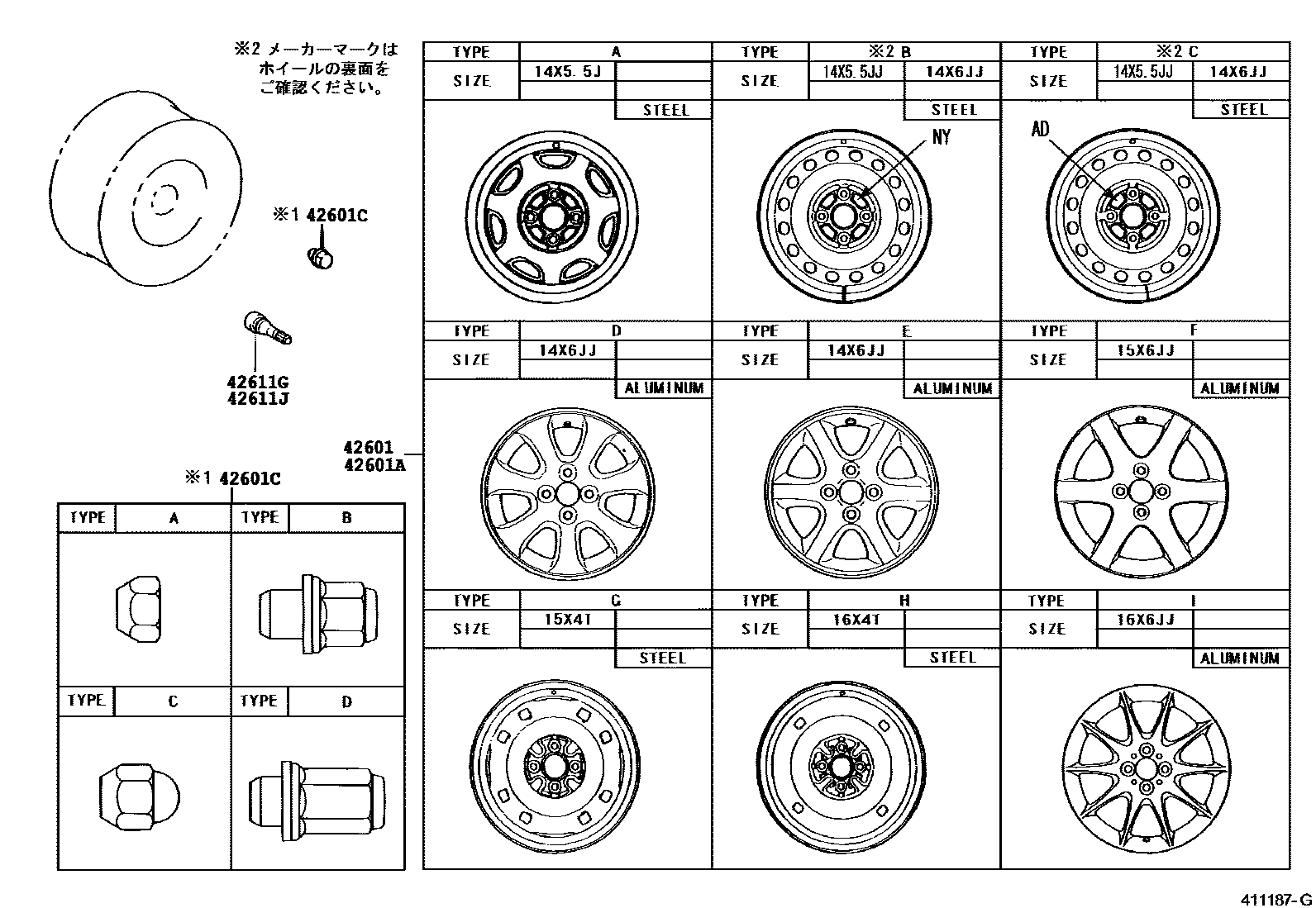

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1 0004 1 0005 1

42601WHEEL, DISC

main42611-02440×4iZZE123200404-200609

main42611-13130×4iZZE122,124..LXL200404-200609

main42611-1A390×4iNZE120,121..SED..X200404-200609

main42611-1A450×4iCE121,NZE120,121200209-200404

main42611-1A460×4iCE121,NZE120,121200008-200209

main42611-1A470×4iNZE124,ZZE122,124200008-200209

main42611-1A480×4iZZE123200008-200209

main42611-1A490×4iCE121,NZE12#,ZZE122,124..SED200008-200209

main42611-1A500×4iNZE121,124..WG200404-200609

main42611-1A510×4iZZE122,124..S200404-200609

main42611-1A530×4iNZE124,ZZE122,124200209-200404

42601AWHEEL, DISC (FOR SPARE)

main42611-02440iZZE123200209-200309

main42611-1A010iNZE120,121200404-200609

main42611-1A240iCE121,NZE12#,ZZE12#200008-200209

main42611-1A390iCE121,NZE120,121..SED..X200008-200209

main42611-1A450iCE121,NZE120,121200008-200209

main42611-1A460iCE121,NZE120,121200008-200209

main42611-1A470iNZE124,ZZE122,124200008-200209

main42611-1A480iZZE123200008-200209

main42611-1A490iCE121,NZE12#,ZZE122,124..SED200008-200209

main42611-1A500iCE121,NZE121,124,ZZE122,124..WG200008-200209

main42611-1A510iZZE123200008-200209

main42611-1A530iNZE124,ZZE122,124200106-200209

42601CNUT, HUB (FOR AXLE)

main90942-01007×16iCE121,NZE12#,ZZE122,124200008-200209

main90942-01033×16iZZE123200404-200609

main90942-01058×16iCE121,NZE12#,ZZE122,124..SED; CE121,NZE121,124,ZZE12#..WG200008-200209

main90942-01082×16iNZE120,ZZE123;CE121,NZE121..SED..X200008-200209

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iCE121,NZE12#,ZZE12#200008-200209

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iCE121,NZE12#,ZZE12#200008-200209

5 parts on this diagram · 5 diagrams in section
