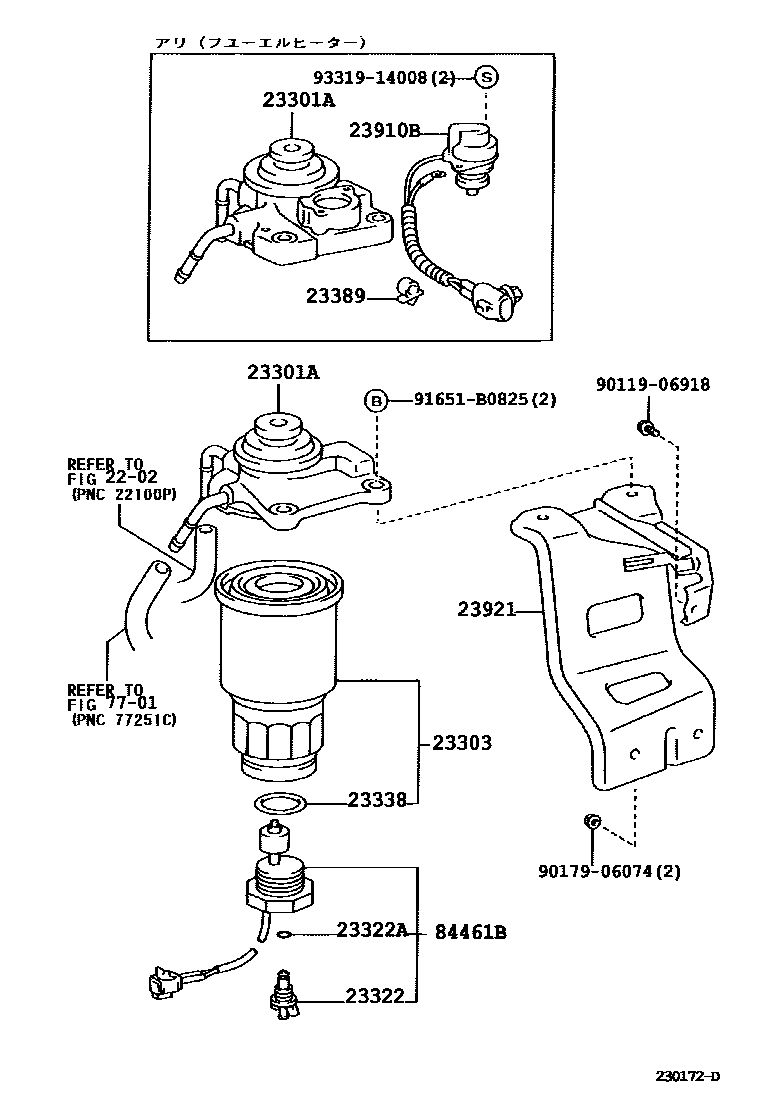

FUEL FILTER

2202INJECTION PUMP ASSEMBLY

→ Go to FIG 22-02

23301ACAP ASSY, FUEL FILTER

main23380-64550i3CE..CE121200008-200209

main23380-64560i3CE..CE121200008-200209

23303ELEMENT SUB-ASSY, FUEL FILTER

main23390-64450i3CE..CE121200209-200404

23322PLUG, DRAIN(FOR FUEL FILTER)

main23388-64470i3CE..CE121200008-200209

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i3CE..CE121200008-200209

23338GASKET(FOR WARNING SWITCH)

main23344-64010i3CE..CE121200008-200209

23389CLAMP, FUEL FILTER

main23389-64490i3CE..CE121200008-200209

23910BHEATER ASSY, FUEL

main23910-17060i3CE..CE121200008-200209

23921SUPPORT, FUEL FILTER

main23921-64300i3CE..CE121200008-200209

7701FUEL TANK & TUBE

→ Go to FIG 77-01

84461BSWITCH, LEVEL WARNING

main84461-28040iCE121200008-200209

9011906918

main90119-06918

9017906074

main90179-06074

91651B0825

main91651-B0825

9331914008

main93319-14008

15 parts on this diagram · 1 diagram in section
