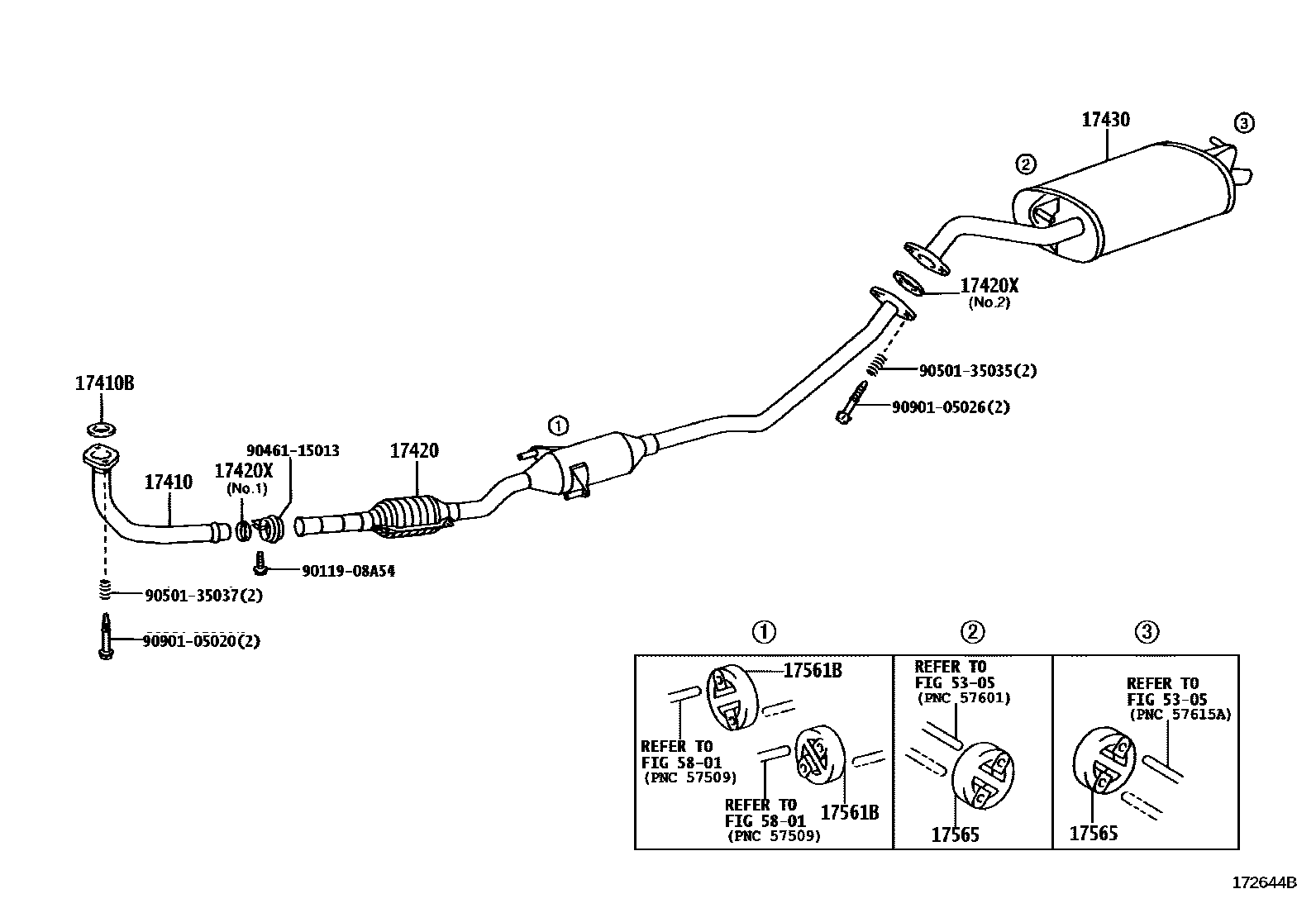

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1 0006 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-21220i1NZFE,2NZFE..NZE120,121200008-200209

main17410-21280i1NZFE..NZE124200008-200209

main17410-21590i2NZFE..NZE120;1NZFE..NZE121..5F200404-200609

main17410-21600i1NZFE..NZE124200404-200609

main17410-21650i1NZFE..NZE121..4FC200412-200609

main17410-22180i1ZZFE..ZZE122200008-200209

main17410-22182i1ZZFE..ZZE122..5F200305-200404

main17410-22200i2ZZGE..ZZE123200008-200209

main17410-22210i1ZZFE..ZZE124200008-200209

main17410-22290i1ZZFE..ZZE124200209-200404

main17410-22420i1ZZFE..ZZE122..4FC200404-200609

main17410-6A040i3CE..CE121200209-200404

17410BGASKET, EXHAUST PIPE

main17451-21030i1NZFE,2NZFE,1ZZFE..NZE12#,ZZE124200008-200209

main17451-22050i2ZZGE..ZZE123200008-200209

main17451-22070i1ZZFE..ZZE122200008-200209

main90917-06080i3CE..CE121200008-200209

17420PIPE ASSY, EXHAUST, CENTER

main17420-21080i1NZFE..NZE124200008-200209

main17420-21120i1NZFE..NZE124200209-200404

main17420-22040i1ZZFE..ZZE124200008-200209

main17420-22070i1ZZFE..ZZE124200209-200404

main17420-64380i3CE..CE121200209-200404

17420XGASKET, EXHAUST PIPE, CENTER

main17451-64030i3CE..CE121200209-200404

main90917-06082i1NZFE,1ZZFE..NZE124,ZZE124; 3CE..CE121200209-200404

17430PIPE ASSY, EXHAUST, TAIL

main17430-21150i1NZFE,2NZFE..NZE120,121200008-200209

main17430-21180i1NZFE,1ZZFE..NZE124,ZZE124200008-200209

main17430-21430i1NZFE,2NZFE..NZE120,121200209-200404

main17430-21431i1NZFE,2NZFE..NZE120,121200510-200609

main17430-22170i1ZZFE..ZZE122..5F200209-200305

main17430-22172i1ZZFE..ZZE122..5F200305-200404

main17430-22180i2ZZGE..ZZE123200404-200609

main17430-22400i1ZZFE..ZZE122..4FC200209-200404

main17430-22401i1ZZFE..ZZE122..4FC200510-200609

main17430-6A310i3CE..CE121200008-200209

main17430-6A311i3CE..CE121200305-200404

17561BSUPPORT, EXHAUST PIPE, NO.1

main17565-21030×2i1NZFE,2NZFE,1ZZFE,2ZZGE..NZE12#,ZZE12#200404-200609

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-21040×3i1NZFE,1ZZFE..NZE124,ZZE124; 1NZFE,2NZFE,1ZZFE,2ZZGE..NZE120,121,ZZE122,123200404-200609

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

9011908A54

main90119-08A54

9046115013

main90461-15013

9050135035

main90501-35035

9050135037

main90501-35037

9090105020

main90901-05020

9090105026

main90901-05026

15 parts on this diagram · 5 diagrams in section
