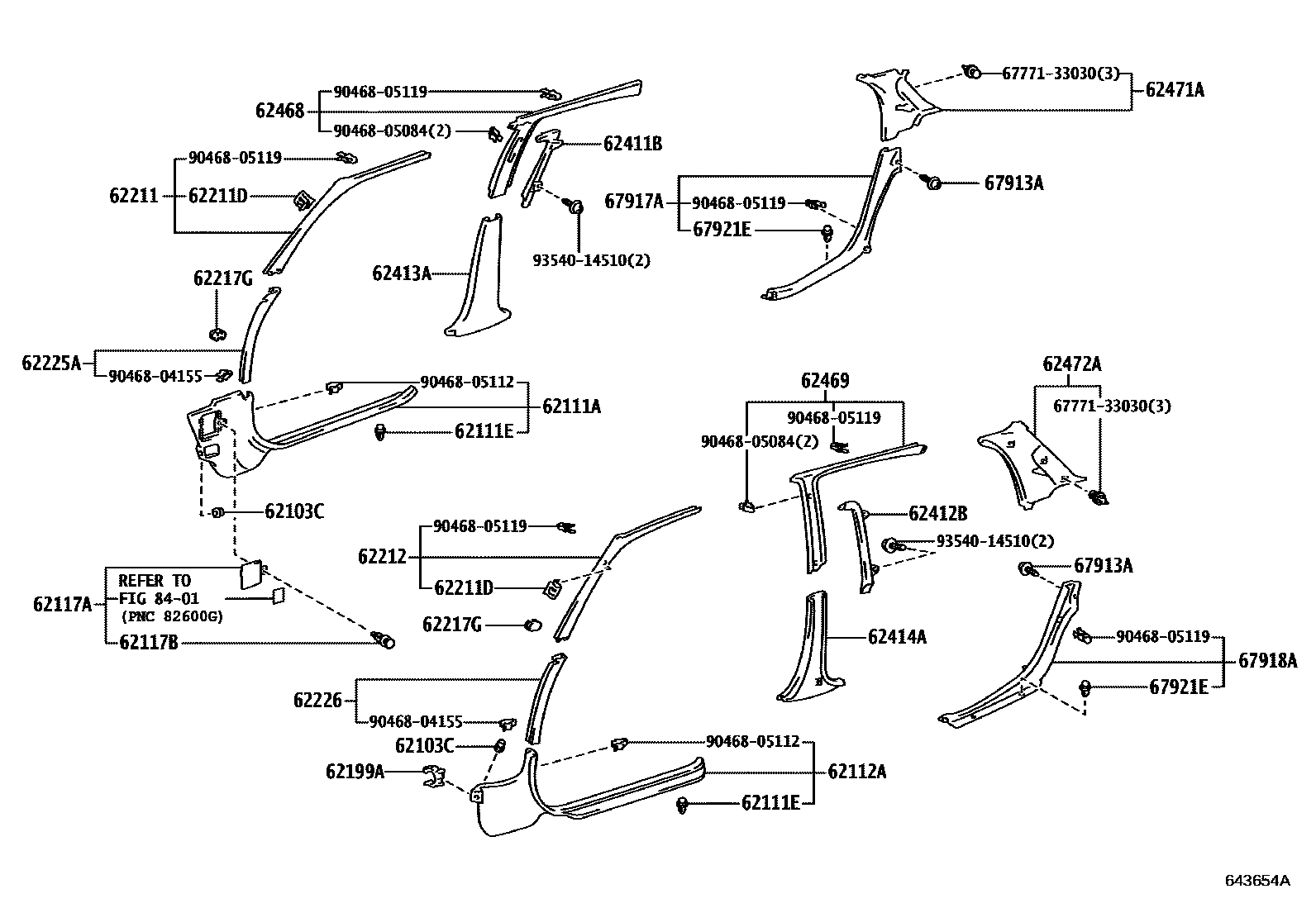

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1 0003 1

62103CCLIP, COWL SIDE TRIM BOARD SET

main90467-05050-01×2iAE10#,CE100,104,EE101..LX,SEG,SEL,XE; AE100,101,CE100,106,108,109,EE10#..CTD,DX,G,GL,GT,L,LT,SJ199206-199211

BLACK,TRIM1#; BLACK,TRIM1#,8#,9#

main90467-05050-22×2iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199305-199505

BLACK,TRIM1#,9#

main90467-08160×2iAE10#,CE10#,EE10#199106-199206

62111ATRIM SUB-ASSY, COWL SIDE, RH

main62101-12160-B0iAE100,104,CE100,101199705-200008

DK.CHARCOAL,TRIM1#

main62101-12160-K0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199505

TAUPE,TRIM9#

main62101-12160-P0iAE100,104..LT199904-200004

main62101-12160-W3iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199305

DARK BLUE,TRIM8#

main62101-12200-B0iAE101..3DS199205-199505

SHADOW GRAY,TRIM1#

62111ERETAINER, COWL SIDE TRIM

main67921-32010×8iAE101..3DS199205-199505

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62102-12160-B0iAE100,104,CE100,101199705-200008

DK.CHARCOAL,TRIM1#

main62102-12160-K0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199505

TAUPE,TRIM9#

main62102-12160-P0iAE101,109,CE102,105,106,107,108,109,EE10#199705

SHADOW GRAY,TRIM1#

main62102-12160-W3iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199305

DARK BLUE,TRIM8#

main62102-12200-B0iAE101..3DS199205-199505

SHADOW GRAY,TRIM1#

62117ACOVER, COWL SIDE TRIM SERVICE HOLE

main62117-12140-K0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199505

TAUPE,TRIM9#

main62117-12140-P0iAE10#,CE10#,EE10#199106-199605

SHADOW GRAY,TRIM1#

main62117-12140-W3iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199305

DARK BLUE,TRIM8#

main62117-12141-B0iAE100,104,CE100,101199705-200008

DK.CHARCOAL,TRIM1#

main62117-12141-P0iAE100,104..LT200004-200008

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-08149iAE10#,CE10#,EE10#199106-199605

62199AHOLDER, FUSEE

main90468-25003×2iAE10#,CE10#,EE10#199106

62211GARNISH, FRONT PILLAR, RH

main62211-12200-B0iAE100,104,CE100,101199705-200008

DK.CHARCOAL,TRIM1#

main62211-12200-K0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199505

TAUPE,TRIM9#

main62211-12200-P0iAE100,101,104,CE100,104,EE101..4DS,WG199106-199704

SHADOW GRAY,TRIM1#

main62211-12200-W3iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199305

DARK BLUE,TRIM8#

main62211-12260-B0iAE101..3DS199205-199505

SHADOW GRAY,TRIM1#

main62211-13040-P0iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109

SHADOW GRAY,TRIM1#

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main90468-05084×4iAE100,101,104,CE100,104,EE101..4DS,WG199106-199705

62212GARNISH, FRONT PILLAR, LH

main62212-12200-B0iAE100,104,CE100,101199705-200008

DK.CHARCOAL,TRIM1#

main62212-12200-K0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199505

TAUPE,TRIM9#

main62212-12200-P0iAE100,104..LT200004-200008

main62212-12200-W3iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199305

DARK BLUE,TRIM8#

main62212-12260-B0iAE101..3DS199205-199505

SHADOW GRAY,TRIM1#

main62212-13040-P0iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109

SHADOW GRAY,TRIM1#

62217GCLIP, FRONT PILLAR GARNISH

main62217-12020×2iAE10#,CE100,104,EE101199110-199201

main62217-12040×6iAE101..3DS199205-199505

62225AGARNISH, FRONT PILLAR, LOWER RH

main62225-12010-B0iAE100,104,CE100,101199705-200008

DK.CHARCOAL,TRIM1#

main62225-12010-K0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199505

TAUPE,TRIM9#

main62225-12010-P0iAE100,104..LT199904-200004

main62225-12010-W3iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199305

DARK BLUE,TRIM8#

main62225-12040-B0iAE101..3DS199205-199505

SHADOW GRAY,TRIM1#

62226GARNISH, FRONT PILLAR, LOWER LH

main62226-12010-B0iAE100,104,CE100,101199705-200008

DK.CHARCOAL,TRIM1#

main62226-12010-K0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199505

TAUPE,TRIM9#

main62226-12010-P0iAE100,104..LT199904-200004

main62226-12010-W3iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199305

DARK BLUE,TRIM8#

main62226-12040-B0iAE101..3DS199205-199505

SHADOW GRAY,TRIM1#

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-12440-B1iAE100,104,CE100,101199705-200008

DK.CHARCOAL,TRIM1#

main62411-12440-K0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199505

TAUPE,TRIM9#

main62411-12440-P0iAE100,104..LT199904-200004

main62411-12440-W3iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199305

DARK BLUE,TRIM8#

main62411-12460-B0iAE101..3DS199205-199505

SHADOW GRAY,TRIM1#

main62411-13030-P0iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109

SHADOW GRAY,TRIM1#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-12440-B0iAE100,104,CE100,101199705-200008

DK.CHARCOAL,TRIM1#

main62412-12440-K0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199505

TAUPE,TRIM9#

main62412-12440-P0iAE100,104..4FC..LT199807

main62412-12440-W3iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199305

DARK BLUE,TRIM8#

main62412-12460-B0iAE101..3DS199205-199505

SHADOW GRAY,TRIM1#

main62412-13030-P0iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109

SHADOW GRAY,TRIM1#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-12180-B0iAE100,104,CE100,101199705-200008

DK.CHARCOAL,TRIM1#

main62413-12180-K0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199505

TAUPE,TRIM9#

main62413-12180-P0iAE101,109,CE102,105,106,107,108,109,EE10#199705-200008

SHADOW GRAY,TRIM1#

main62413-12180-W3iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199305

DARK BLUE,TRIM8#

main62413-13040-B0iAE109,CE10#,EE10#200008

SHADOW GRAY,TRIM1#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-12180-B0iAE100,104,CE100,101199705-200008

DK.CHARCOAL,TRIM1#

main62414-12180-K0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199505

TAUPE,TRIM9#

main62414-12180-P0iAE109,CE106,108,109,EE10#199704-199705

SHADOW GRAY,TRIM1#

main62414-12180-W3iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199305

DARK BLUE,TRIM8#

main62414-13040-B0iAE109,CE10#,EE10#200008

SHADOW GRAY,TRIM1#

62468GARNISH, CENTER PILLAR, REAR RH

main62468-12040-K0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199505

TAUPE,TRIM9#

main62468-12040-P0iAE10#,CE100,104,EE101..4DS199106-199505

SHADOW GRAY,TRIM1#

main62468-12040-W3iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199305

DARK BLUE,TRIM8#

main62468-13010-P0iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109

SHADOW GRAY,TRIM1#

main62468-13030-B0iAE100,104..LT199904-200004

main62468-13030-B1iAE100,104,CE100,101199705-200008

DK.CHARCOAL,TRIM1#

62469GARNISH, CENTER PILLAR, REAR LH

main62469-12040-K0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199505

TAUPE,TRIM9#

main62469-12040-P0iAE10#,CE100,104,EE101..4DS199106-199505

SHADOW GRAY,TRIM1#

main62469-12040-W3iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199305

DARK BLUE,TRIM8#

main62469-13010-P0iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109

SHADOW GRAY,TRIM1#

main62469-13020-B0iAE100,104..LT199904-200004

main62469-13020-B1iAE100,104,CE100,101199705-200008

DK.CHARCOAL,TRIM1#

62471AGARNISH, ROOF SIDE, INNER RH

main62470-12020-B0iAE101..3DS199205-199505

SHADOW GRAY,TRIM1#

main62470-12030-B0iAE101..3DS..GT199405-199505

main62471-12650-K0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199505

TAUPE,TRIM9#

main62471-12650-P0iAE10#,CE100,104,EE101..4DS199106-199505

SHADOW GRAY,TRIM1#

main62471-12650-W3iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199305

DARK BLUE,TRIM8#

62472AGARNISH, ROOF SIDE, INNER LH

main62472-12650-K0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199505

TAUPE,TRIM9#

main62472-12650-P0iAE10#,CE100,104,EE101..4DS199106-199505

SHADOW GRAY,TRIM1#

main62472-12650-W3iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199305

DARK BLUE,TRIM8#

main62480-12020-B0iAE101..3DS199205-199505

SHADOW GRAY,TRIM1#

main62480-12030-B0iAE101..3DS199205-199405

67913ACLIP(FOR SCUFF PLATE)

main90467-06049-01×2iAE10#,CE100,104,EE101..LX,SEG,SEL,XE; AE100,101,CE100,EE101..4DS..(DX,GT)199201-199209

BLACK,TRIM1#; BLACK,TRIM1#,8#,9#

main90467-06049-22×2iAE100,101,CE100,EE101..4DS..(DX,GT)199209-199505

BLACK,TRIM1#

67917APLATE, REAR DOOR SCUFF, RH

main67917-12070-K0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199505

TAUPE,TRIM9#

main67917-12070-P0iAE10#,CE100,104,EE101..4DS199106-199505

SHADOW GRAY,TRIM1#

main67917-12070-W3iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199305

DARK BLUE,TRIM8#

main67917-13030-B0iAE100,104..4FC..LT199807

main67917-13030-B1iAE100,104,CE100,101199705-200008

DK.CHARCOAL,TRIM1#

67918APLATE, REAR DOOR SCUFF, LH

main67918-12060-K0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199505

TAUPE,TRIM9#

main67918-12060-P0iAE10#,CE100,104,EE101..4DS199106-199505

SHADOW GRAY,TRIM1#

main67918-12060-W3iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199305

DARK BLUE,TRIM8#

main67918-13030-B0iAE100,104..LT199904-200004

main67918-13030-B1iAE100,104,CE100,101199705-200008

DK.CHARCOAL,TRIM1#

67921ERETAINER, REAR DOOR SCUFF PLATE

main67921-32010×4iAE10#,CE10#,EE10#..4DS,V,WG199106

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

6777133030WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-33030

9046804155

main90468-04155

9046805084

main90468-05084

9046805112

main90468-05112

9046805119

main90468-05119

9354014510

main93540-14510
