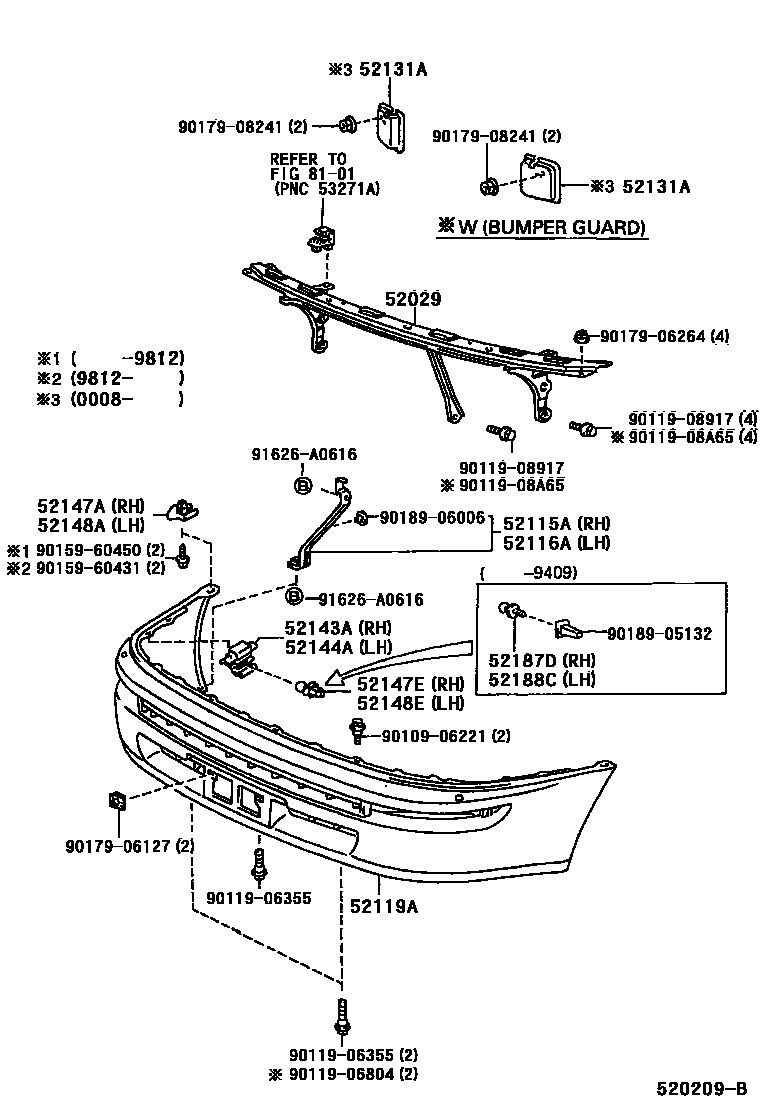

FRONT BUMPER & BUMPER STAY

0001 1 0004 1 0005 1 0006 1��(����� ��-��) 0007 1��(����� ��-��)

52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER

main52029-12010iAE100,101,104,CE108,EE104199704-199705

main52029-12080iAE101..3DS199205-199505

main52029-13010iAE109,CE106,109,EE102,103199704-199705

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-12340iAE10#,CE10#,EE10#199106

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-12270iAE10#,CE10#,EE10#199106

52119ACOVER, FRONT BUMPER

main52119-13060-A0iAE100,104,CE100199505-199705

main52119-13060-B0iAE100,104,CE100199505-199705

main52119-13060-B1iAE10#,CE100199505-199605

main52119-13060-B3iAE100,101,104,CE100199605-199705

main52119-13060-B4iAE101199605-199705

main52119-13060-C0iAE101199605-199705

main52119-13060-G0iAE100,104,CE100199505-199705

main52119-13060-J0iAE100,104..LT199512-199704

main52119-13150-A0iAE100,104,CE100,101199705-200008

SUPER WHITE 2,040

main52119-13150-B0iAE100,104,CE100199705-199804

GRAY M.M.,2CK ,2DC

main52119-13150-B1iAE100,104,CE101199804-200008

SILVER ME,199 ,2EX ,2EY

main52119-13150-C0iAE100,104..LT199904-200004

main52119-13150-D0iAE100,104,CE101199804-200008

MAGENTA MC.,3L3

main52119-13150-D1iAE100,104..LT199904-200004

main52119-13150-J0iAE100,104,CE100199705-199804

DK.BLUE MC.,8K8

main52119-13150-J1iAE100,104,CE101199804-200008

BLUE M.M.,8L5

main52119-13160-A0iAE100,104,CE100,101199705-200008

main52119-13160-B0iAE100,104,CE101199804-200008

main52119-13160-B1iAE100,104,CE100199705-199804

main52119-13160-D0iAE100,104,CE101199804-200008

main52119-13160-J0iAE100,104,CE100199705-199804

main52119-13160-J1iAE100,104,CE101199804-200008

main52119-13170-A0iAE100,101,104,CE100,101199705-200008

main52119-13170-B0iAE101199705-200008

main52119-13170-B1iAE100,104,CE100199705-199804

main52119-13170-C0iAE100,104..LT199904-200004

main52119-13170-D0iAE100,104,CE101199804-200008

main52119-13170-D1iAE100,104..LT199904-200004

main52119-13170-J0iAE100,104,CE100199705-199804

main52119-13170-J1iAE100,104,CE101199804-200008

main52119-13180-A0iAE100,101,104,CE100,101199705-200008

main52119-13180-B0iAE101199705-200008

main52119-13180-B1iAE101199705-200008

main52119-13180-C0iAE101199705-199804

main52119-13180-D0iAE100,104,CE101199804-200008

main52119-13180-J0iAE100,104,CE100199705-199804

main52119-13180-J1iAE100,104,CE101199804-200008

main52119-1A880-02iAE10#,CE100,104,EE101..4DS..(GT,LX,SEG,SEL,XE)199106-199305

ROSE MICA M,3K4

main52119-1A880-03iAE10#,CE100,104,EE101..4DS..(GT,LX,SEG,SEL,XE)199106-199305

DARK BLUEISH GLAY M,183

main52119-1A880-04iAE10#,CE100,104,EE101..4DS..(GT,LX,SEG,SEL,XE)199106-199305

DARK BLUE M,8J7

main52119-1A880-05iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199305

LIGHT BEIGE M,3K9

main52119-1A880-07iAE10#,CE100,104,EE101..4DS..(GT,LX,SEG,SEL,XE)199106-199305

GLAYISH GREEN M,6M3

main52119-1A880-08iAE10#,CE100,104,EE101..4DS..(GT,LX,SEG,SEL,XE)199106-199305

SUPER WHITE 2,040

main52119-1A880-12iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199205

ROSE MICA M.GLAPHITE,3K5

main52119-1A880-B0iAE10#,CE100,104,EE101..4DS..(GT,LX,SEG,SEL,XE)199205-199305

SILVER MICA M,192

main52119-1A890-02iAE10#,CE100,104..SEG,SEL199106-199205

main52119-1A890-03iAE101..SEG199205-199305

main52119-1A890-04iAE10#,CE100,104..SEG,SEL199106-199205

main52119-1A890-05iAE101..SEG199205-199305

main52119-1A890-07iAE10#,CE100,104..SEG,SEL199106-199205

main52119-1A890-08iAE101..SEG199205-199305

main52119-1A890-12iAE10#,CE100,104..SEG,SEL199106-199205

main52119-1A890-B0iAE101..SEG199205-199305

main52119-1E010iAE100,CE100,106,108,109,EE10#..CTD,DX,GL,L199106-199305

main52119-1E090-A0iAE100..WG199109-199305

SUPER WHITE 2,040

main52119-1E090-B0iAE100..WG199109-199305

DARK BLUEISH GRAY M,183

main52119-1E090-B1iAE100..WG199109-199305

SILVER MICA M,24T

main52119-1E090-G0iAE100..WG199109-199305

GRAYISH GREEN M,6M3

main52119-1E090-J0iAE100..WG199109-199305

DARK BLUE MICA M,8J7

main52119-1E120-B0iAE101..3DS199205-199505

SILVER MICA.M,192

main52119-1E120-C0iAE101..3DS199205-199505

BLACK,205

main52119-1E120-D0iAE101..3DS199205-199505

SUPER RED 2,3E5

main52119-1E120-D1iAE101..3DS199205-199401

OPANGE MICA M,3L1

main52119-1E120-G0iAE101..3DS199205-199505

GRAYISH GREEN M,6M3

main52119-1E120-J0iAE101..3DS199305-199505

DARK BLUE MICA M.,8G5

main52119-1E120-K0iAE101..3DS199205-199305

LAVENDER MICA M,925

main52119-1E250-A0iAE10#,CE100,104,EE101..4DS..(GT,LX,SEG,SEL,XE)199305-199505

SUPER WHITE 2,040

main52119-1E250-B0iAE10#,CE100,104,EE101..4DS..(GT,LX,SEG,SEL,XE)199305-199505

DARK BLUEISH GRAY M,183

main52119-1E250-B1iAE10#,CE100,104,EE101..4DS..(GT,LX,SEG,SEL,XE)199305-199505

SILVER MICA M,192

main52119-1E250-D0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199305-199505

LIGHT BEIGE M,3K9

main52119-1E250-G0iAE10#,CE100,104,EE101..4DS..(GT,LX,SEG,SEL,XE)199305-199505

GRAYISH GREEN M,6M3

main52119-1E250-G1iAE10#,CE100,104,EE101..4DS..(GT,LX,SEG,SEL,XE)199305-199505

MD GRAISHGREEN MC.GR,6N1

main52119-1E250-J0iAE10#,CE100,104,EE101..4DS..(GT,LX,SEG,SEL,XE)199305-199505

DARK BLUE MICA M.,8G5

main52119-1E260iAE109,CE105,107,EE10#; CE102200008

main52119-1E270-A0iAE100,104,CE100..WG199305-199704

SUPER WHITE 2,040

main52119-1E270-B0iCE108,EE104199401-199508

main52119-1E270-B2iCE108,EE104199508

main52119-1E270-B3iCE108,EE104199704-199804

main52119-1E270-B4iAE100,104,CE100; AE101; CE108,EE104199605-199704

main52119-1E270-B5iAE101199605-199704

LIGHT WARM GRAY ME,2CD

main52119-1E270-C0iAE100..WG199405-199505

SILVER MICA M,20Z ,24T ,28W

main52119-1E270-C1iAE101199605-199704

BLACK ME,205

main52119-1E270-G0iAE100..WG199305-199405

GRAYISH GREEN M,6M3

main52119-1E270-G1iCE108,EE104199401-199704

main52119-1E270-G4iCE102199804

DK.GREEN M.M.,6P2

main52119-1E270-J3iAE100,104..LT199512-199704

52131AREINFORCEMENT, FRONT BUMPER

main52131-12180iAE100,101,104,CE100,101199705-200008

main52131-13020iAE109,CE10#,EE10#200008

main52132-13010iAE109,CE10#,EE10#200008

52143AARM, FRONT BUMPER, INNER RH

main52143-12300iAE10#,CE10#,EE10#199106-199304

main52143-12330iAE10#,CE10#,EE10#199304-199705

main52143-13020iAE100,101,104,CE100,101199705-200008

52144AARM, FRONT BUMPER, INNER LH

main52143-12300iAE10#,CE10#,EE10#199106-199304

main52143-12330iAE10#,CE10#,EE10#199304-199705

main52143-13020iAE100,101,104,CE100,101199705-200008

52147ABRACKET, FRONT BUMPER STAY, RH

main52147-12170iAE10#,CE10#,EE10#199106-199812

main52147-16080iAE10#,CE10#,EE10#199812

52147EBRACKET, FRONT BUMPER MOUNTING, RH

main52148-12130iAE10#,CE10#,EE10#199409

52148ABRACKET, FRONT BUMPER STAY, LH

main52147-12170iAE10#,CE10#,EE10#199106-199812

main52147-16080iAE10#,CE10#,EE10#199812

52148EBRACKET, FRONT BUMPER MOUNTING, LH

main52148-12130iAE10#,CE10#,EE10#199409

52187DGUIDE, FRONT BUMPER LOCATION, RH

main52187-12140iAE10#,CE10#,EE10#199106-199409

52188CGUIDE, FRONT BUMPER LOCATION, LH

main52187-12140iAE10#,CE10#,EE10#199106-199409

8101HEADLAMP

→ Go to FIG 81-01

9010906221

main90109-06221

9011906355

main90119-06355

9011906804

main90119-06804

9011908917

main90119-08917

9011908A65

main90119-08A65

9015960431

main90159-60431

9015960450

main90159-60450

9017906127

main90179-06127

9017906264

main90179-06264

9017908241

main90179-08241

9018905132

main90189-05132

9018906006

main90189-06006

91626A0616

main91626-A0616

27 parts on this diagram · 5 diagrams in section
