TRANSFER ASSEMBLY & GASKET KIT

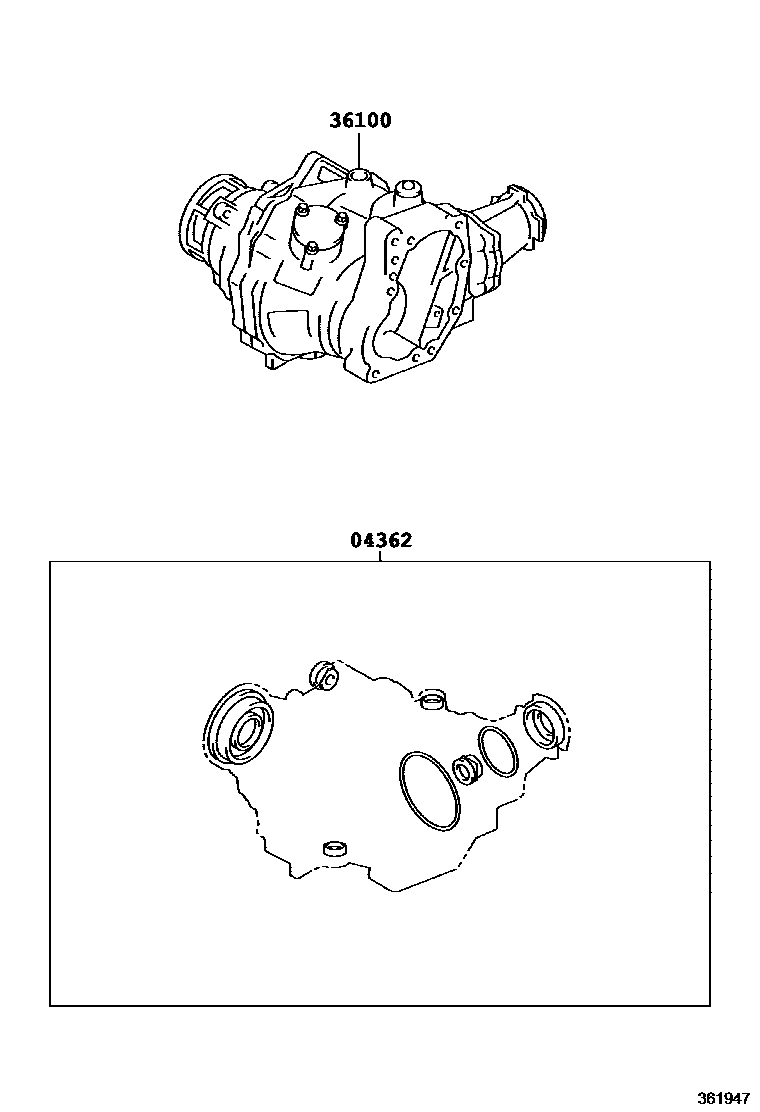

Parts diagram

04362GASKET KIT, TRANSFER OVERHAUL

main04362-12020i200008-200206

main04362-12030i199705-199804

main04362-32020i199605-200206

36100TRANSFER ASSY

main36100-12010i199605-200206

main36100-12040i199109-199405

main36100-12050i199109-199405

main36100-12070i199405-199505

main36100-12071i200008-200206

main36100-12080i200008-200206

main36100-20060i199109-199405

main36100-20170i199508-200206

2 parts on this diagram · 3 diagrams in section
