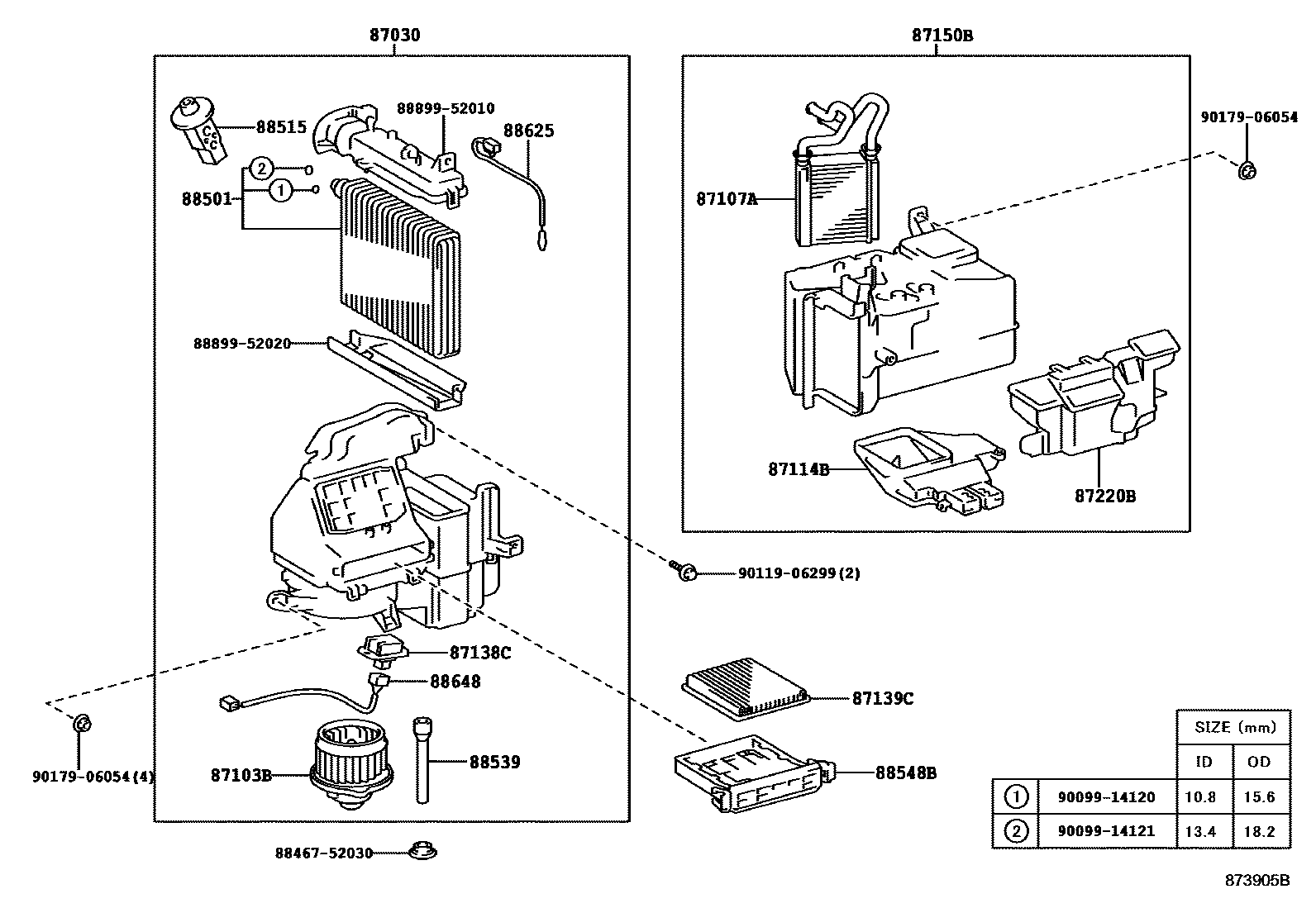

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1����� ���

87030BLOWER ASSY, AIR CONDITIONER

main87030-52010iNCP19200001

main87030-52040iNCP19200001

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-52010iNCP19200001

main87103-52030iNCP19200001

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-52010iNCP19200001

87114BCOVER, HEATER

main87114-52010iNCP19200001

main87114-52020iNCP19200001

87138CRESISTOR, BLOWER

main87138-52010iNCP19200001

87139CFILTER, CLEAN AIR

main87139-12010iNCP19200001-200112

main87139-44010iNCP19200001-200112

87150BRADIATOR ASSY, HEATER

main87150-52010iNCP19200001

main87150-52030iNCP19200001

87220BDUCT ASSY, AIR

main87220-52010iNCP19200001

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-52010iNCP19200001

88515VALVE, COOLER EXPANSION

main88515-52010iNCP19200001

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-52010iNCP19200001

88548BCASE, AIR FILTER

main88548-52010iNCP19200001

88625THERMISTOR, COOLER, NO.1

main88625-52020iNCP19200001

88648WIRING, COOLER, NO.1

main88648-52020iNCP19200001

8846752030CUSHION, COOLER CONDENSER, NO.1

main88467-52030

8889952010COVER, EVAPORATOR

main88899-52010

8889952020COVER, EVAPORATOR

main88899-52020

9009914120

main90099-14120

9009914121

main90099-14121

9011906299

main90119-06299

9017906054

main90179-06054

21 parts on this diagram · 2 diagrams in section
