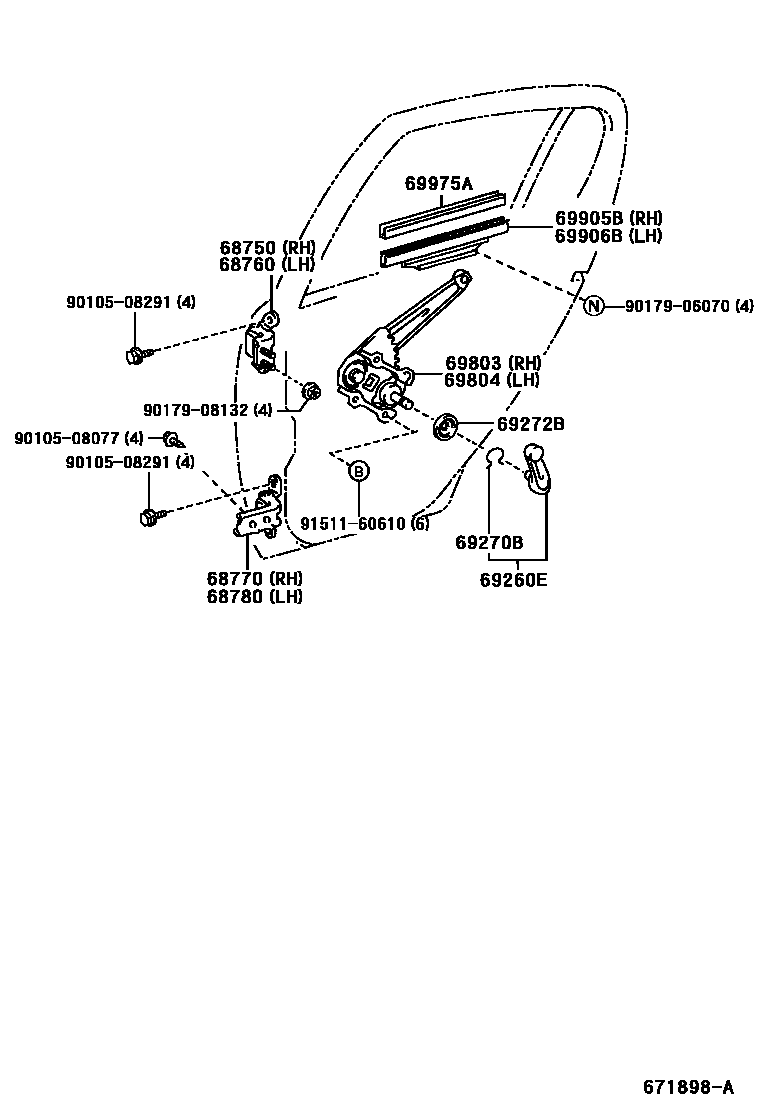

REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-42010iNCP19200001

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-42010iNCP19200001

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-52030iNCP19200001

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-52030iNCP19200001

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-52030-C0×2iNCP19200008-200108

BLACK,TRIM2#

main69260-52030-E0×2iNCP19200001

TERRCOTTA,TRIM4#

69270BRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01274×2iNCP19200001

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69268-20020×2iNCP19200001-200004

main69285-22010-08×2iNCP19200004-200008

NATURAL WHITE,TRIM4#

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69830-52060iNCP19200001

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69840-52060iNCP19200001

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-52030iNCP19200001

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-52030iNCP19200001

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-52010×2iNCP19200001

9010508077

main90105-08077

9010508291

main90105-08291

9017906070

main90179-06070

9017908132

main90179-08132

9151160610

main91511-60610

17 parts on this diagram · 1 diagram in section
