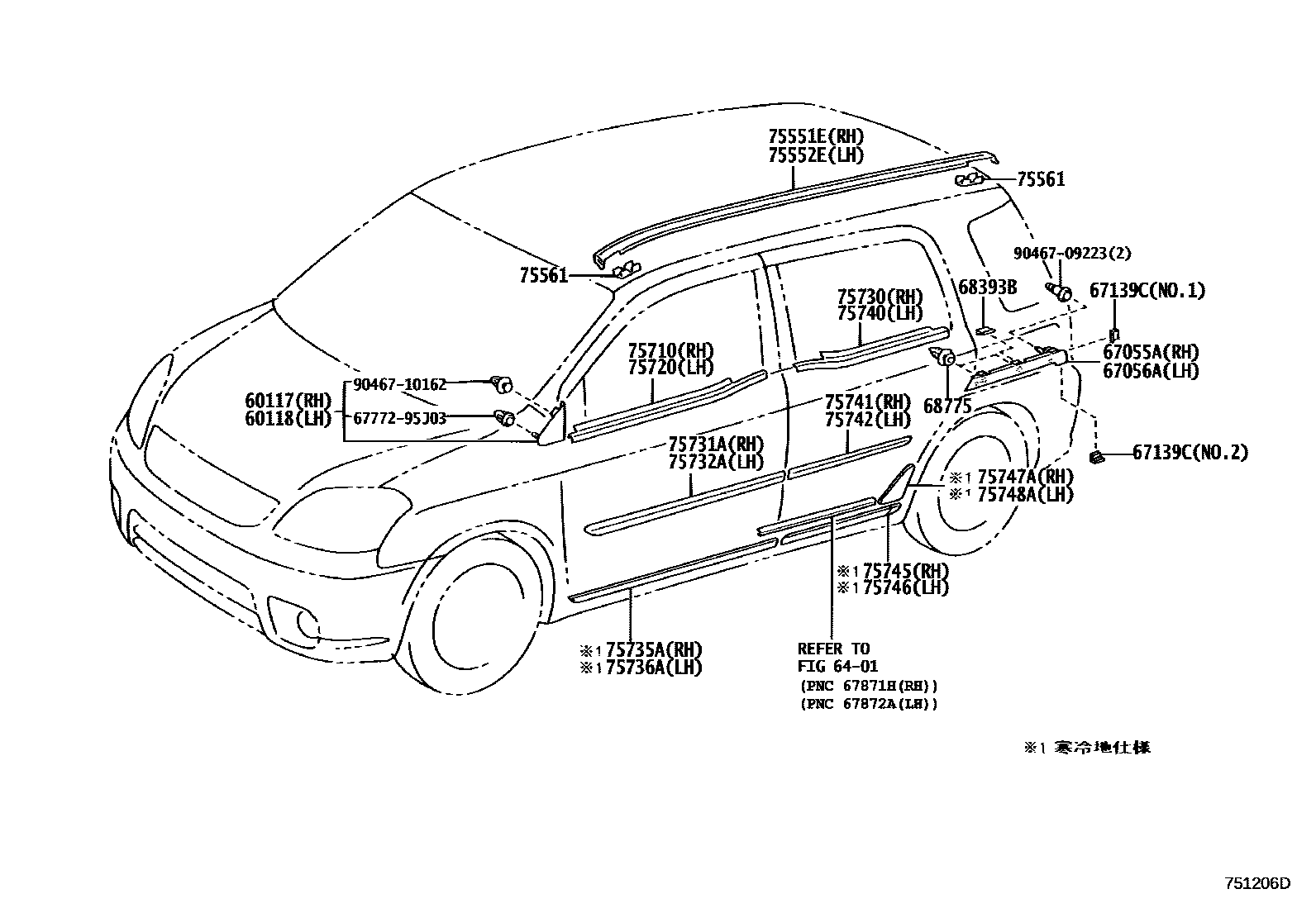

SIDE MOULDING
60117COVER SUB-ASSY, FRONT PILLAR, UPR RH
60118COVER SUB-ASSY, FRONT PILLAR, UPR LH
6401INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
67055ACOVER SUB-ASSY, SLIDE DOOR PANEL, FRONT RH
67056ACOVER SUB-ASSY, SLIDE DOOR PANEL, FRONT LH
67139CPAD, SLIDE DOOR OUTER REINFORCEMENTD
68393BPROTECTOR, SLIDE DOOR CENTER RAIL
68775BRACKET, SLIDE DOOR, CENTER NO.2 RH
75551EMOULDING, ROOF DRIP SIDE FINISH, RH
75552EMOULDING, ROOF DRIP SIDE FINISH, LH
75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75710MOULDING ASSY, FRONT DOOR BELT, RH
75720MOULDING ASSY, FRONT DOOR BELT, LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75731AMOULDING, FRONT DOOR, OUTSIDE RH
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK MC.,209
PALE ORANGE MICA METALLIC,4S3
75732AMOULDING, FRONT DOOR, OUTSIDE LH
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK MC.,209
PALE ORANGE MICA METALLIC,4S3
75735AMOULDING, FRONT DOOR OUTSIDE, LOWER RH
75736AMOULDING, FRONT DOOR OUTSIDE, LOWER LH
75740MOULDING ASSY, REAR DOOR BELT, LH
75741MOULDING, REAR DOOR, OUTSIDE RH
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK MC.,209
PALE ORANGE MICA METALLIC,4S3
75742MOULDING, REAR DOOR, OUTSIDE LH
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK MC.,209
PALE ORANGE MICA METALLIC,4S3
75745MOULDING, REAR DOOR OUTSIDE, LOWER RH
75746MOULDING, REAR DOOR OUTSIDE, LOWER LH
75747AMOULDING, REAR DOOR OUTSIDE, LOWER REAR RH
75748AMOULDING, REAR DOOR OUTSIDE, LOWER REAR LH
6777295J03WEATHERSTRIP, BACK DOOR TRIM, LH
main67772-95J03
9046709223
main90467-09223
9046710162
main90467-10162
28 parts on this diagram · 1 diagram in section
