RADIATOR GRILLE

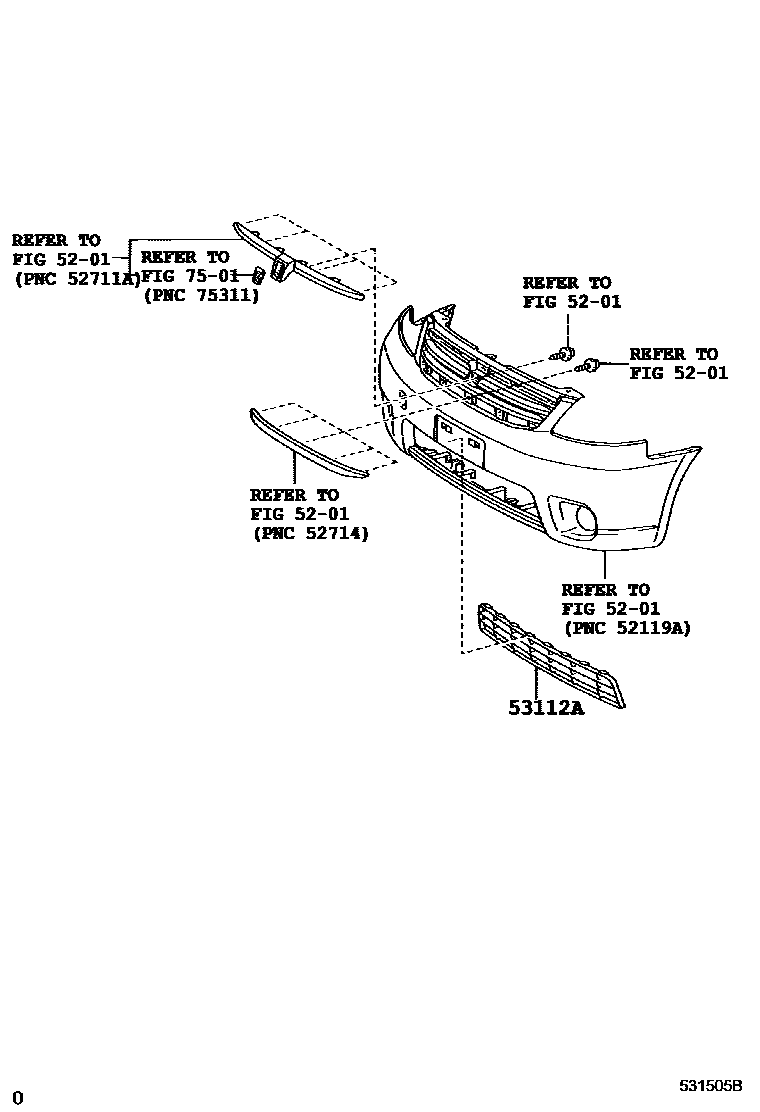

Parts diagram

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

53112AGRILLE, RADIATOR, LOWER

main53112-46020i200304-201104

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

3 parts on this diagram · 1 diagram in section
