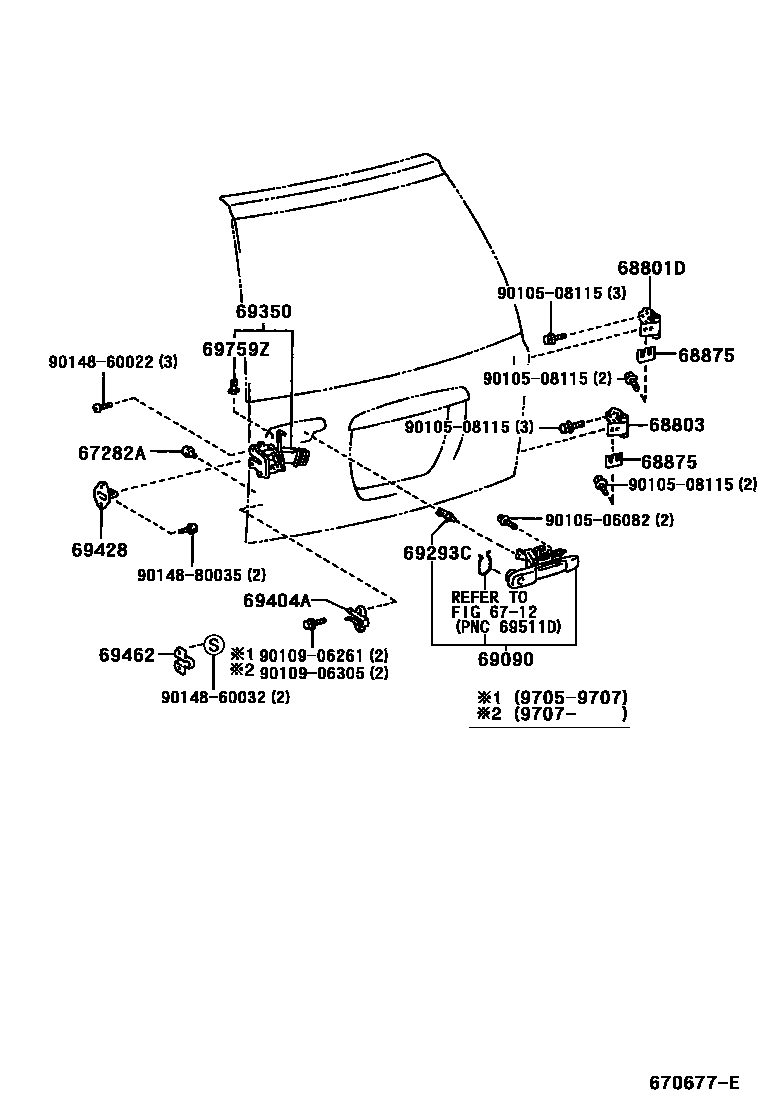

BACK DOOR LOCK & HANDLE

6712LOCK CYLINDER SET

→ Go to FIG 67-12

67282ACUSHION, BACK DOOR LOWER STOPPER

main67282-46010iEXZ1#199705

68801DHINGE SUB-ASSY, BACK DOOR, RH

main68801-46020iEXZ1#199705

68803HINGE ASSY, BACK DOOR, LOWER RH

main68803-46020iEXZ1#199705

68875SPACER, BACK DOOR UPPER HINGE

main68875-46010iEXZ1#199705

main68875-46020iEXZ1#199705

69090HANDLE ASSY, BACK DOOR, OUTSIDE

main69090-46010iEXZ1#199705

main69090-46020-A0iEXZ1#..FD,PB; EXZ1#..SEPA200105

WHITE PEARL MC.,049; WHITE PEARL MC.,049 ,2HX

main69090-46020-A1iEXZ1#199907

SUPER WHITE 2,040

main69090-46020-B0iEXZ1#199808-199907

SILVER ME,199

main69090-46020-B1iEXZ1#199907

SILVER ME.,1C0

main69090-46020-C0iEXZ1#199808-199907

BLACK ME,205

main69090-46020-C1iEXZ1#199907

BLACK,202

main69090-46020-D0iEXZ1#199808-200204

SUPER RED II,3E5

main69090-46020-D1iEXZ1#..SEPA200112-200204

main69090-46020-F1iEXZ1#199804-199811

main69090-46020-F2iEXZ1#200204

CHAMPAGNE ME.,583

main69090-46020-G0iEXZ1#199907-200204

DK.GREEN MC.,6R4

main69090-46020-H0iEXZ1#199812-199907

DK.TURQUOISE.MC,742

main69090-46020-H1iEXZ1#200204

LT.AQUA ME.OP.,761

main69090-46020-J0iEXZ1#199804-199811

main69090-46020-J1iEXZ1#199810-199812

main69090-46020-J2iEXZ1#199907

BLUE MC.,8M6

main69090-46020-K0iEXZ1#199808-199907

DK.PURPLE MC.GR.,2DW

69293CSNAP, BACK DOOR HANDLE

main69293-12050iEXZ1#199705

69350LOCK ASSY, BACK DOOR

main69110-46010iEXZ1#..SEPA199705

main69350-46010iEXZ10199705-199808

69404ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH

main69403-46010iEXZ1#199705

69428PLATE, BACK DOOR LOCK BASE

main69410-20070iEXZ1#199705

69462STOPPER, BACK DOOR SIDE MALE, LH

main69461-46010iEXZ1#199705

69759ZSNAP, DOOR LOCK CONTROL LINK

main69759-95700iEXZ1#199705

9010506082

main90105-06082

9010508115

main90105-08115

9010906261

main90109-06261

9010906305

main90109-06305

9014860022

main90148-60022

9014860032

main90148-60032

9014880035

main90148-80035

19 parts on this diagram · 1 diagram in section
