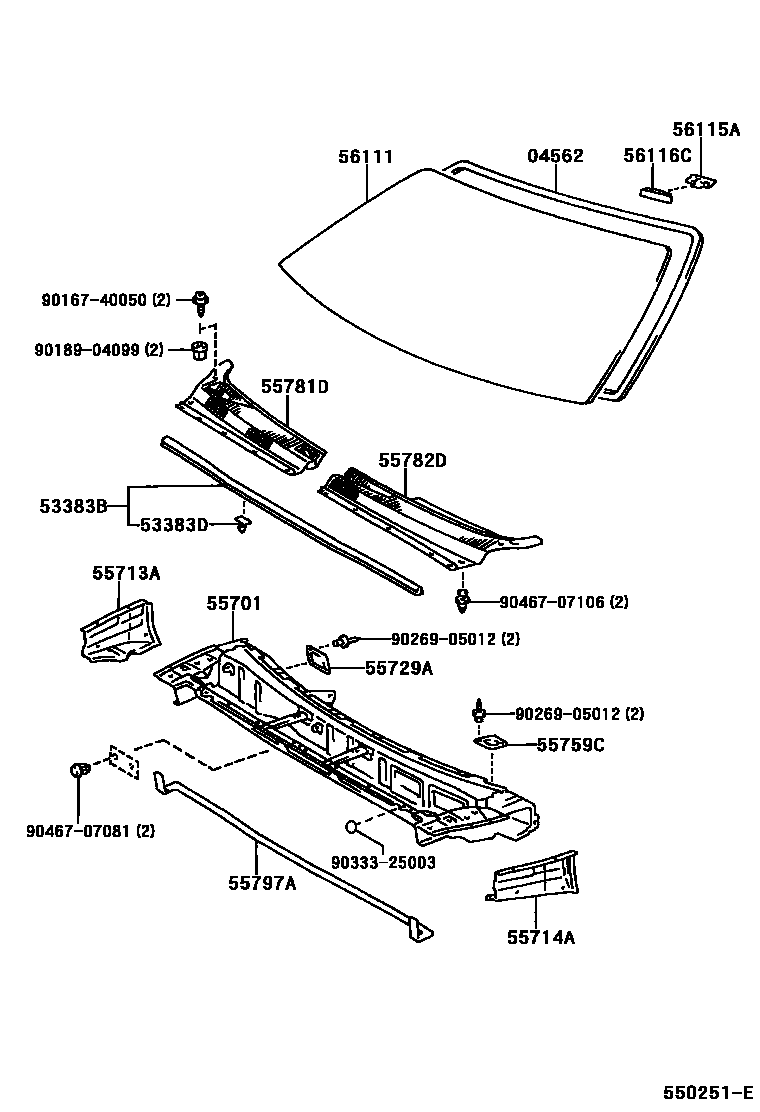

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-12010iEXZ1#199705

53383BSEAL, HOOD TO COWL TOP

main53383-46010iEXZ1#199705

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main90467-10146×7iEXZ1#199705

55701PANEL SUB-ASSY, COWL

main55700-46010iEXZ1#199705

55713APANEL, COWL TOP SIDE, RH

main55713-46010iEXZ1#199705

55714APANEL, COWL TOP SIDE, LH

main55714-46010iEXZ1#199705

55729ACOVER, COWL PANEL HOLE

main55729-46010iEXZ1#199705

55759CCOVER, HEATER AIR DUCT

main55759-46010iEXZ1#199705

55781DLOUVER, COWL TOP VENTILATOR, RH

main55708-46010iEXZ1#199705

main55708-46020iEXZ1#199705

55782DLOUVER, COWL TOP VENTILATOR, LH

main55709-46010iEXZ1#199705

main55709-46020iEXZ1#199705

55797ASEAL, COWL WATER EXTRACT

main55797-46010×3iEXZ1#199705

56111GLASS, WINDSHIELD

main56111-46010iEXZ1#199705-199907

main56111-46020iEXZ1#199907

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-22010×2iEXZ1#199705

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2iEXZ1#199705

9016740050

main90167-40050

9018904099

main90189-04099

9026905012

main90269-05012

9033325003

main90333-25003

9046707081

main90467-07081

9046707106

main90467-07106

20 parts on this diagram · 1 diagram in section
