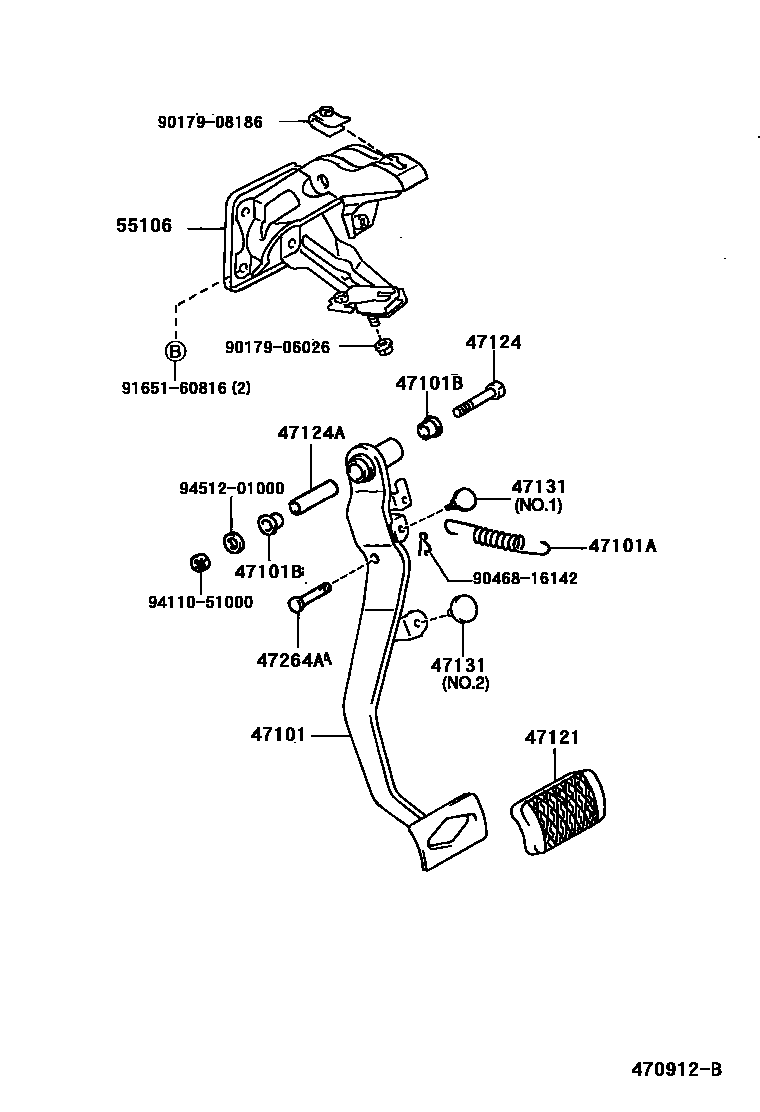

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-46020iEXZ1#199705-199907

main47101-46030iEXZ1#199907

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-20031iEXZ1#199705

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015×2iEXZ1#199705

47121PAD, BRAKE PEDAL

main47121-12020iEXZ1#199705

47124SHAFT, BRAKE PEDAL

main90101-10015iEXZ1#199705

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iEXZ1#199705

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iEXZ1#199705

main90541-06049iEXZ1#199705

47264APIN(FOR PUSH ROD)

main90249-08051iEXZ1#199705

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-46010iEXZ1#199705-199907

main55106-46030iEXZ1#199907

9017906026

main90179-06026

9017908186

main90179-08186

9046816142

main90468-16142

9165160816

main91651-60816

9411051000

main94110-51000

9451201000

main94512-01000

15 parts on this diagram · 1 diagram in section
