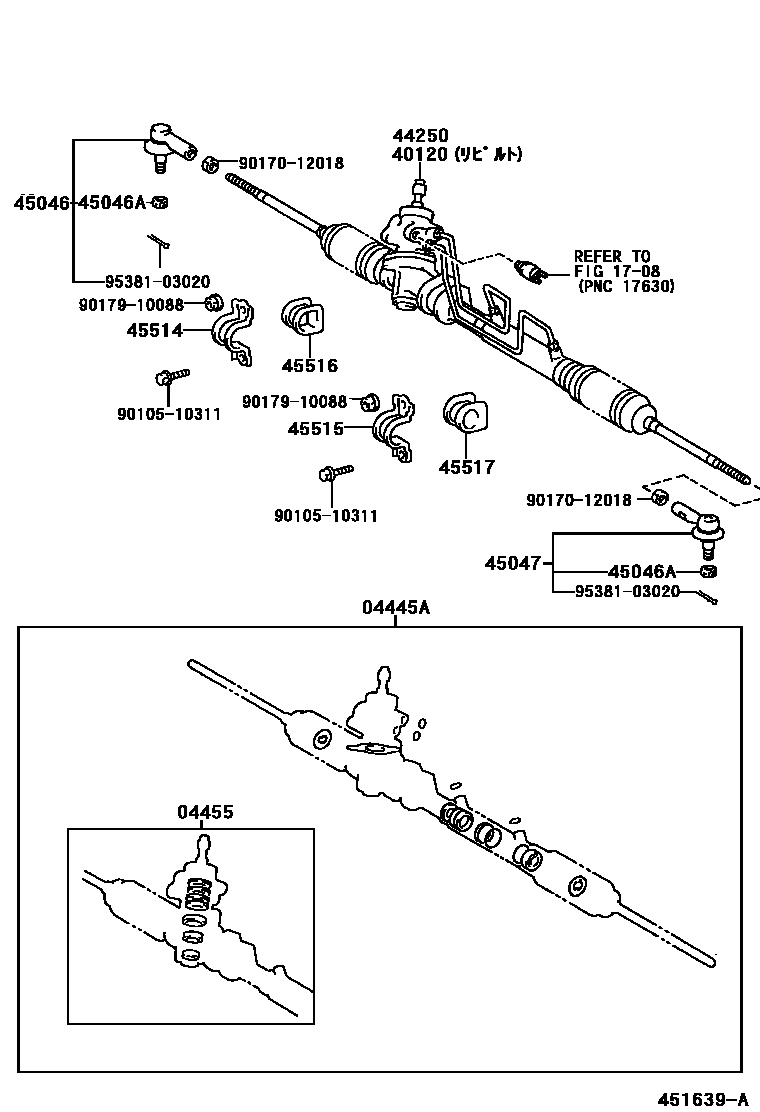

FRONT STEERING GEAR & LINK

0001 1 0002 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-16090iEL5#199508-199512

main04445-16110iEL5#199512-199907

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-10030iEL5#199508-199907

1708VACUUM PIPING

→ Go to FIG 17-08

40120GEAR ASSY,POWER STEERING,REBUILT

main40120-16271iEL5#..CVT199508-199802

main40120-16282iEL54..CP199508-199712

main40120-46011iEL5#..CP199712-199907

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-16270iEL52199508-199512

main44250-16271iEL5#..CVT199512-199802

main44250-16281iEL54199508-199512

main44250-16282iEL54..CP199512-199712

main44250-46011iEL5#..CP199712-199907

45046END SUB-ASSY, TIE ROD, RH

main45046-19206iEL5#199508-199907

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iEL5#199508

45047END SUB-ASSY, TIE ROD, LH

main45046-19206iEL5#199508-199907

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-16060iEL5#199508-199707

main45514-16061iEL5#199707

45515BRACKET, STEERING RACK HOUSING, NO.2

main45514-16060iEL5#199508-199707

main45514-16061iEL5#199707

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-16060iEL5#199508

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-10070iEL5#199508

9010510311

main90105-10311

9017012018

main90170-12018

9017910088

main90179-10088

9538103020

main95381-03020

16 parts on this diagram · 2 diagrams in section
