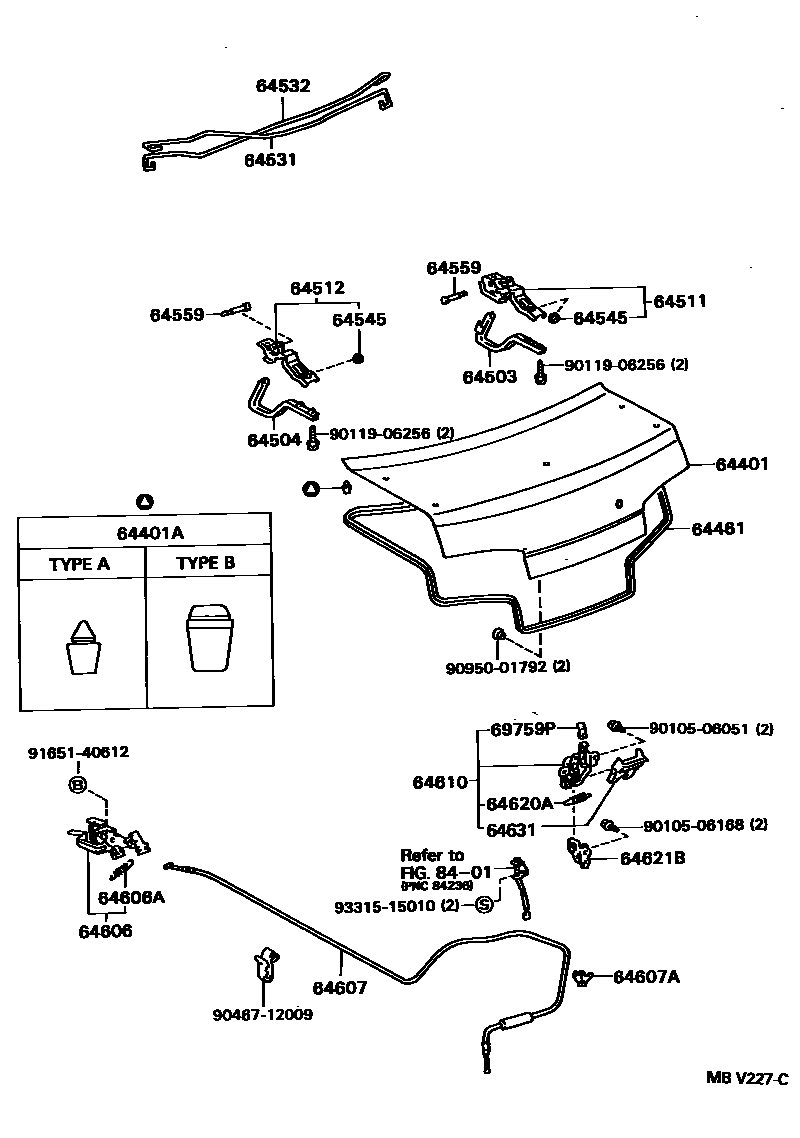

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-16150iEL44..ALPHA199101-199508

main64401-16160iEL44..ALPHA199212-199508

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-06052×2iEL44199101-199403

main90541-06076×2iEL44199403-199508

main90541-15017×2iEL44199101-199508

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-16140iEL44199101-199508

64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64503-16030iEL44199101-199508

64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64504-16020iEL44199101-199508

64511SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64511-16050iEL44199101-199508

64512SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64512-16050iEL44199101-199508

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-16100iEL44..ALPHA199101-199104

main64531-16110iEL44..ALPHA199104-199508

main64531-16120iEL44..ALPHA; EL44..BETA199101-199104

main64531-16130iEL44..BETA199104-199508

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-16100iEL44..ALPHA199101-199104

main64532-16110iEL44..ALPHA199101-199104

main64532-16120iEL44..ALPHA; EL44..BETA199101-199104

main64532-16130iEL44..BETA199104-199508

64545CUSHION, LUGGAGE DOOR HINGE

main90541-10144×2iEL44199101-199508

64559PIN, LUGGAGE DOOR HINGE

main64559-30010×2iEL44199101-199508

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-16050iEL44199101-199508

64606ASPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)

main90506-09004×2iEL44199212-199508

main90506-09034×2iEL44199101-199212

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-16290iEL44199101-199508

64607ACLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main90959-01369iEL44..ALPHA; EL44..BETA199101-199105

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-16070iEL44199101-199106

main64610-16071iEL44199106-199208

main64610-16072iEL44199208-199508

64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)

main90506-05001iEL44199101-199508

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64621-16020iEL44199212-199508

main64621-22040iEL44199101-199212

64631PROTECTOR, LUGGAGE DOOR LOCK

main64631-12020iEL44199101-199208

main64631-16020iEL44199208-199508

69759PSNAP, DOOR LOCK CONTROL LINK

main69759-16040iEL44199106-199508

main69759-20210iEL44199101-199106

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010506051

main90105-06051

9010506168

main90105-06168

9011906256

main90119-06256

9046712009

main90467-12009

9095001792

main90950-01792

9165140612

main91651-40612

9331515010

main93315-15010

28 parts on this diagram · 1 diagram in section
