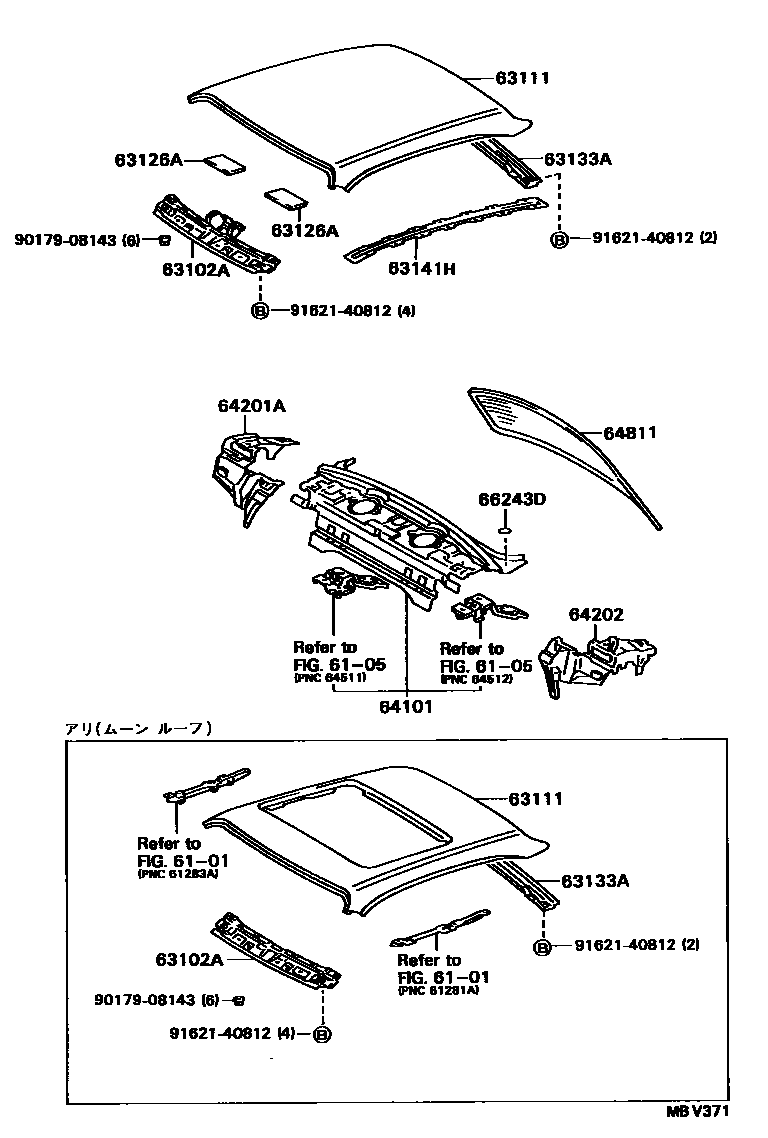

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1

6101SIDE MEMBER

→ Go to FIG 61-01

6105LUGGAGE COMPARTMENT DOOR & LOCK

→ Go to FIG 61-05

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-16030iEL44199101-199508

main63132-16070iEL44199101-199508

63111PANEL, ROOF

main63111-16220iEL44199101-199508

main63111-16230iEL44199101-199508

63126ADAMPER, WINDSHIELD HEADER PANEL

main63126-16010×2iEL44199101-199307

63133AFRAME, BACK WINDOW, UPPER

main63133-16050iEL44199101-199508

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-16090iEL44199101-199508

64101PANEL SUB-ASSY, UPPER BACK

main64101-16110iEL44199101-199508

main64101-16120iEL44..ALPHA199101-199508

64201AEXTENSION SUB-ASSY, PACKAGE TRAY, RH

main64201-16020iEL44199101-199508

64202EXTENSION SUB-ASSY, PACKAGE TRAY, LH

main64202-16020iEL44199101-199508

64811GLASS, BACK WINDOW

main64811-16340iEL44..BETA199212-199409

main64811-16350iEL44..BETA199212-199409

main64811-16400iEL44..ALPHA199101-199409

main64811-16401iEL44..ALPHA199409-199508

main64811-16420iEL44..ALPHA199101-199409

main64811-16421iEL44..ALPHA; EL44..BETA199409-199508

main64811-16431iEL44..BETA199101-199409

main64811-16441iEL44..BETA199101-199409

66243DPROTECTOR, REAR BODY, NO.1

main66243-20010×2iEL44199101-199403

9017908143

main90179-08143

9162140812

main91621-40812

14 parts on this diagram · 2 diagrams in section
