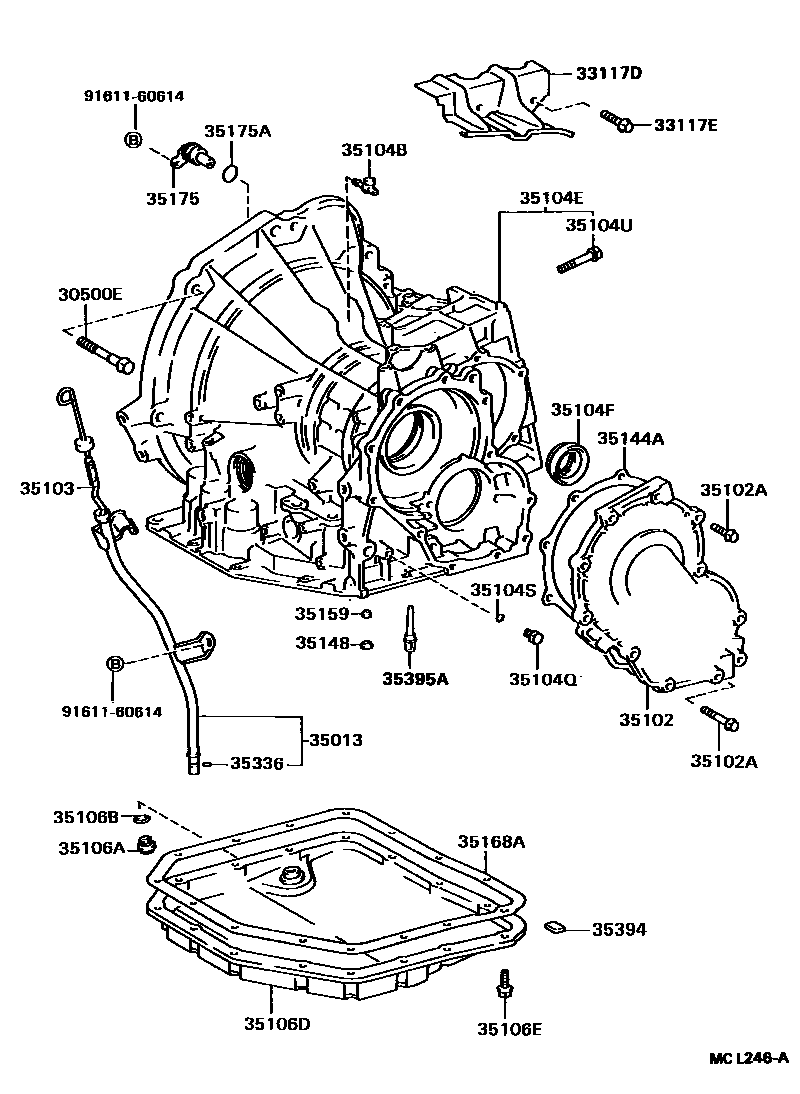

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A132 0002 1A242L,A244L,A244E 0003 1A244F

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90105-10077iNL40..4FC199009-199409

main90105-10097iEL4#..ATM199009-199409

main90119-12168iEL4#,NL40..ATM199009-199409

main91611-61025iEL41..3FC199009-199409

main91619-61245iEL4#,NL40..ATM199009-199409

main91621-60614iEL41,45..ATM199009-199409

33117DPROTECTOR, AUTOMATIC TRANSMISSION CASE

main33117-10011iEL41..3FC199009-199409

main33117-12030iEL43,45,NL40..4FC199009-199409

33117EBOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)

main90105-08040iEL4#,NL40..ATM199009-199409

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-10120iEL43..4FC199208-199409

main35013-10150iEL45..4FC199208-199409

main35013-16060iNL40..4FC199009-199208

main35013-16070iEL45..4FC199009-199208

main35013-16080iEL41..3FC199009-199208

main35013-16100iEL43..4FC199009-199208

main35013-16170iEL41..3FC199208-199409

main35013-16190iNL40..4FC199208-199409

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-10011iEL41..3FC199009-199409

main35102-10030iNL40..4FC199009-199208

main35102-16030iEL43,45..4FC199009-199210

main35102-16031iEL43,45,NL40..4FC199210-199409

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-08050iEL41..3FC199009-199409

main90105-08056iEL41..3FC199009-199409

main90105-08065iEL43,45,NL40..4FC199009-199409

main90105-08068iEL43,45,NL40..4FC199009-199409

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-10090iEL43..4FC199208-199409

main35103-10120iEL45..4FC199208-199409

main35103-16080iEL43,NL40..4FC199009-199010

main35103-16081iEL43,NL40..4FC199010-199208

main35103-16090iEL41..3FC199009-199208

main35103-16100iEL45..4FC199009-199208

main35103-16180iEL41..3FC199208-199409

main35103-16220iNL40..4FC199208-199409

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03089iEL41..3FC199009-199409

main90930-03101iEL43,45,NL40..4FC199009-199409

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-10042iEL41..3FC199009-199102

main35104-10043iEL41..3FC199102-199409

35104FSEAL, OIL (FOR TRANSAXLE CASE)

main90311-34012iEL41..3FC199009-199409

main90311-34013iEL43,45,NL40..4FC199009-199409

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001iEL43,45,NL40..4FC199009-199409

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196iEL43,45,NL40..4FC199009-199409

35104UBOLT (FOR TRANSAXLE CASE)

main90105-10008iEL41..3FC199009-199409

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10006iEL43,45,NL40..4FC199009-199409

main90341-18016iEL41..3FC199009-199409

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iEL43,45,NL40..4FC199009-199409

main90430-18008iEL41..3FC199009-199409

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-10022iEL41..3FC199009-199409

main35106-12070iEL43,45,NL40..4FC199009-199409

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173iEL41..3FC199009-199409

35144AGASKET, TRANSAXLE REAR COVER

main35144-12010iEL41..3FC199009-199310

main35144-12020iEL41..3FC199310-199409

35148GASKET, GOVERNOR APPLY, NO.1

main35148-16010iEL4#,NL40..ATM199009-199409

35159GASKET, BRAKE DRUM

main35159-20010iEL43,45,NL40..4FC199009-199409

main35159-32011iEL41..3FC199009-199409

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-12020iEL43,45,NL40..4FC199009-199409

main35168-32010iEL41..3FC199009-199409

35175CAP, TRANSAXLE CASE, NO.2

main35175-32010iEL41..3FC199009-199409

35175ARING, O (FOR TRANSAXLE CASE CAP)

main90301-21002iEL41..3FC199009-199409

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iEL4#,NL40..ATM199009-199409

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iEL4#,NL40..ATM199009-199409

35395ASTRAINER, GOVERNOR OIL

main35395-12020iEL43,45,NL40..4FC199009-199409

main35395-32020iEL41..3FC199009-199404

main35395-32030iEL41..3FC199404-199409

9161160614

main91611-60614

27 parts on this diagram · 3 diagrams in section
