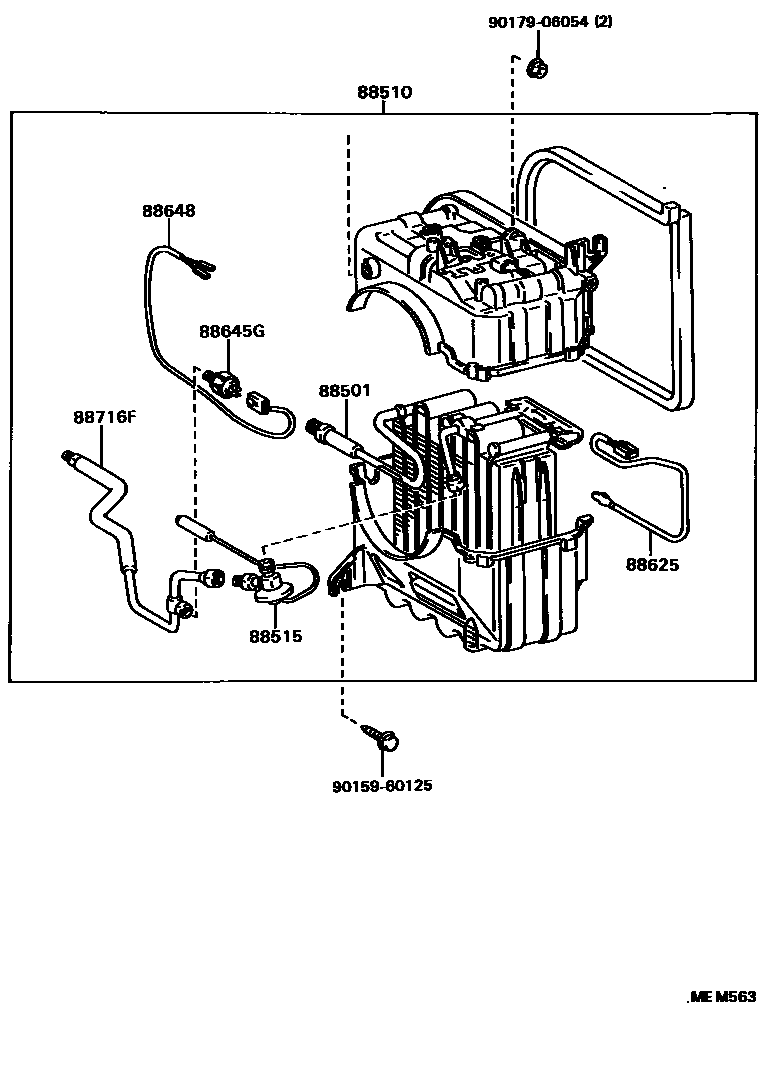

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0003 1 0004 1 0005 1

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-16080iEL30..CD,LIM; EL30..GL,TX; EL31,NL30..ZX; EL31..TBO; NL30..GL,TX198805-199009

main88501-16090iEL31..EFI198807-199009

88510UNIT ASSY, COOLER

main88510-16170iEL30..CD,LIM; EL30..GL,TX; EL31,NL30..ZX; EL31..TBO; NL30..GL,TX198805-199009

main88510-16230iEL31..EFI198807-199009

88515VALVE, COOLER EXPANSION

main88515-14060iEL31..EFI198807-199009

main88515-16040iEL30..CD,LIM; EL30..GL,TX; EL31,NL30..ZX; EL31..TBO; NL30..GL,TX198805-199009

88625THERMISTOR, COOLER, NO.1

main88625-16080iEL30..CD,LIM; EL30..GL,TX; EL31,NL30..ZX; EL31..AR,SRI; EL31..TBO; NL30..GL,TX198805-199009

88645GSWITCH, PRESSURE

main88645-16020iEL31..4FC..TBO; EL31..5F..TBO198805-198905

88648WIRING, COOLER, NO.1

main88648-16120iEL31..TBO198905-199009

main88648-16150iEL31..EFI198807-199009

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88716-16290iEL31..AR,SRI198805-198807

9015960125

main90159-60125

9017906054

main90179-06054

9 parts on this diagram · 4 diagrams in section
