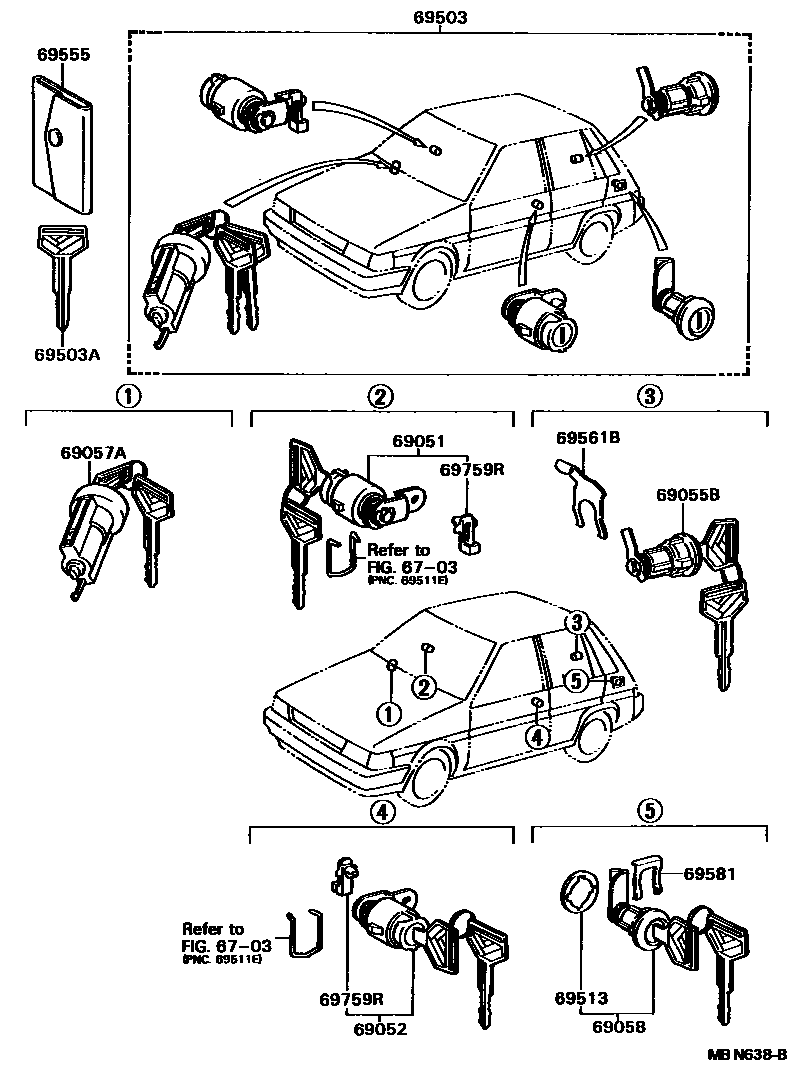

LOCK CYLINDER SET

6703FRONT DOOR LOCK & HANDLE

→ Go to FIG 67-03

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-16140iEL3#,NL30198805-199009

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-16140iEL3#,NL30198805-199009

69055BCYLINDER & KEY SET, BACK DOOR LOCK

main69055-16190iEL3#,NL30198805-199009

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-16080iEL3#,NL30198805-199009

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-16130iEL30,NL30..CD,GL,LIM,TX198805-199009

69503CYLINDER SET, LOCK

main69005-16520iEL30,NL30..CD,GL,LIM; EL31,NL30..AR,GP,SRI,ZX198805-199009

main69005-16530iEL30,NL30..CD,GL,LIM,TX198805-199009

69503AKEY, BLANK

main90999-00085iEL3#,NL30198805-199009

main90999-00106iEL3#,NL30198805-199009

69513PAD, FUEL FILLER LID LOCK CYLINDER

main69513-32010iEL30,NL30..CD,GL,LIM,TX198805-199009

69555COVER, KEY

main69555-17010iEL3#,NL30198805-199009

69561BRETAINER, BACK DOOR LOCK CYLINDER

main69561-16040iEL3#,NL30198805-199009

69581RETAINER, FUEL FILLER LID CYLINDER

main69511-32010iEL30; NL30..GL,TX198805-199009

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-20080iEL3#,NL30198805-199009

main69759-20090iEL3#,NL30198805-199009

13 parts on this diagram · 1 diagram in section
