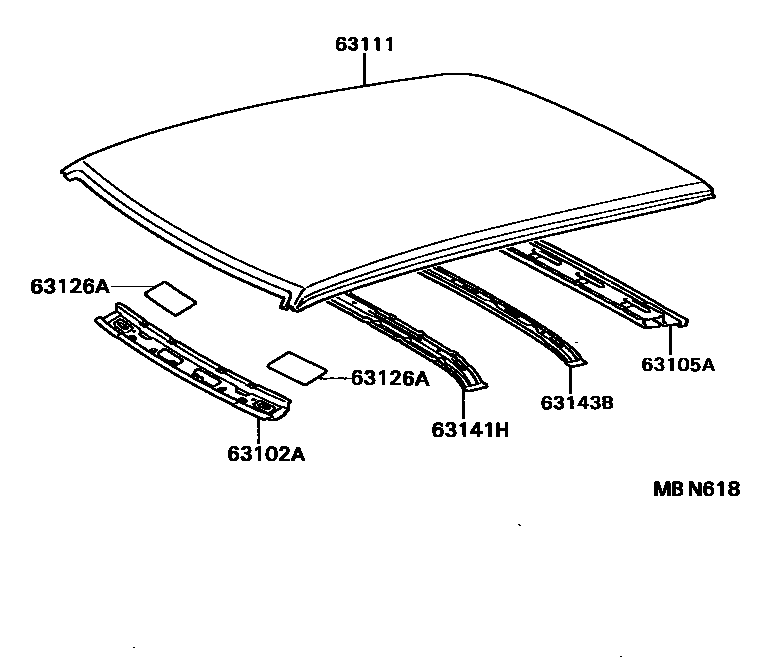

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1�-� �-� 0003 1������ ���� 0004 1������ ����

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-16020iEL3#,NL30198805-199009

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-16050iEL3#,NL30..5DS198805-199009

main63105-16060iEL3#,NL30..3DS198805-199009

63111PANEL, ROOF

main63111-16130iEL3#,NL30..3DS198805-199009

main63111-16140iEL31..EFI,TBO198805-199009

main63111-16150iEL3#,NL30..5DS198805-199009

main63111-16170iEL3#..3DS..(SRI,TX)198805-199009

63126ADAMPER, WINDSHIELD HEADER PANEL

main63126-16010×2iEL3#,NL30198805-199009

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-16040iEL3#,NL30..3DS198805-199009

main63141-16050iEL3#,NL30..5DS198805-199009

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-16010iEL3#,NL30..5DS198805-199009

main63143-16020×2iEL3#..3DS..(SRI,TX)198805-199009

6 parts on this diagram · 4 diagrams in section
